Appendix CProgramming Console Operations
317

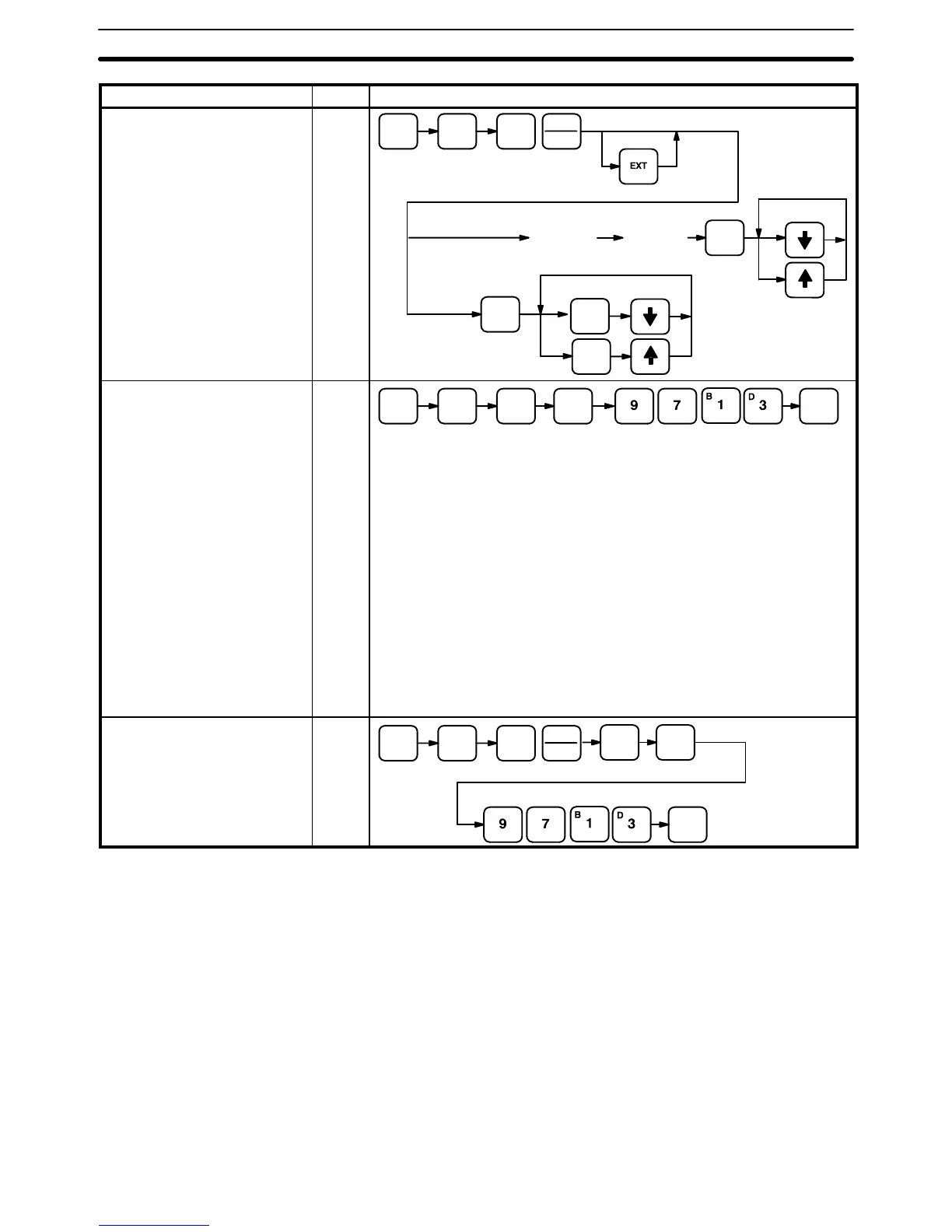

Operation/Description Modes* Key sequence
I/O Table Read
Used to read the I/O Table. The dis-
play gives the Unit type, location, I/O
word allocation, and word multiplier
(where applicable). Rack and unit
numbers will vary according to the
system in use. The EXT key can be
pressed to allow Remote I/O Slave
Racks and Optical I/O Units to be se-
lected. If shift is pressed before the
arrow key, the Rack and unit num-
bers need not be specified.
R P M
CLR
FUN
SHIFT
*
CH
MONTR
[Rack no.] [Unit no.]
MONTR
SHIFT
SHIFT
To select Remote I/O Slave
Racks or Optical I/O Units
C200H
All PCs
C1000H/C2000H
C200H
NET Link Link Table Transfer
Copies the Data Link Table to pro-
gram memory, either RAM or
EPROM. This allows the user pro-
gram and the Data Link Table to be
written to EPROM together (for the
CPU11-E only). When power is
applied to a PC with Data Link Tables
stored in program memory, the table
will automatically overwrite the CPU
Data Link Table. Changes made to
the table do not affect the copy in pro-
gram memory. To update the copy in
program memory, the transfer opera-
tion must be repeated. Transfer will
not work if: a) the memory is not RAM
or EPROM, or if the memory is write-
protected. b) there is no END(01) in-
struction. c) the contents of the pro-
gram memory exceeds 2.3K for a 4K
word memory, or 6.4K for an 8K word
memory.
P
CLR
FUN
SHIFT
WRITEEXT
I/O Table Delete
Clears the entire I/O table. The cursor
should be at the program address of
the table.
P
CLR
FUN
SHIFT
*
CH
CHG
WRITE
NOT
*Modes in which the given instruction is applicable: R = RUN, M = MONITOR, P = PROGRAM
