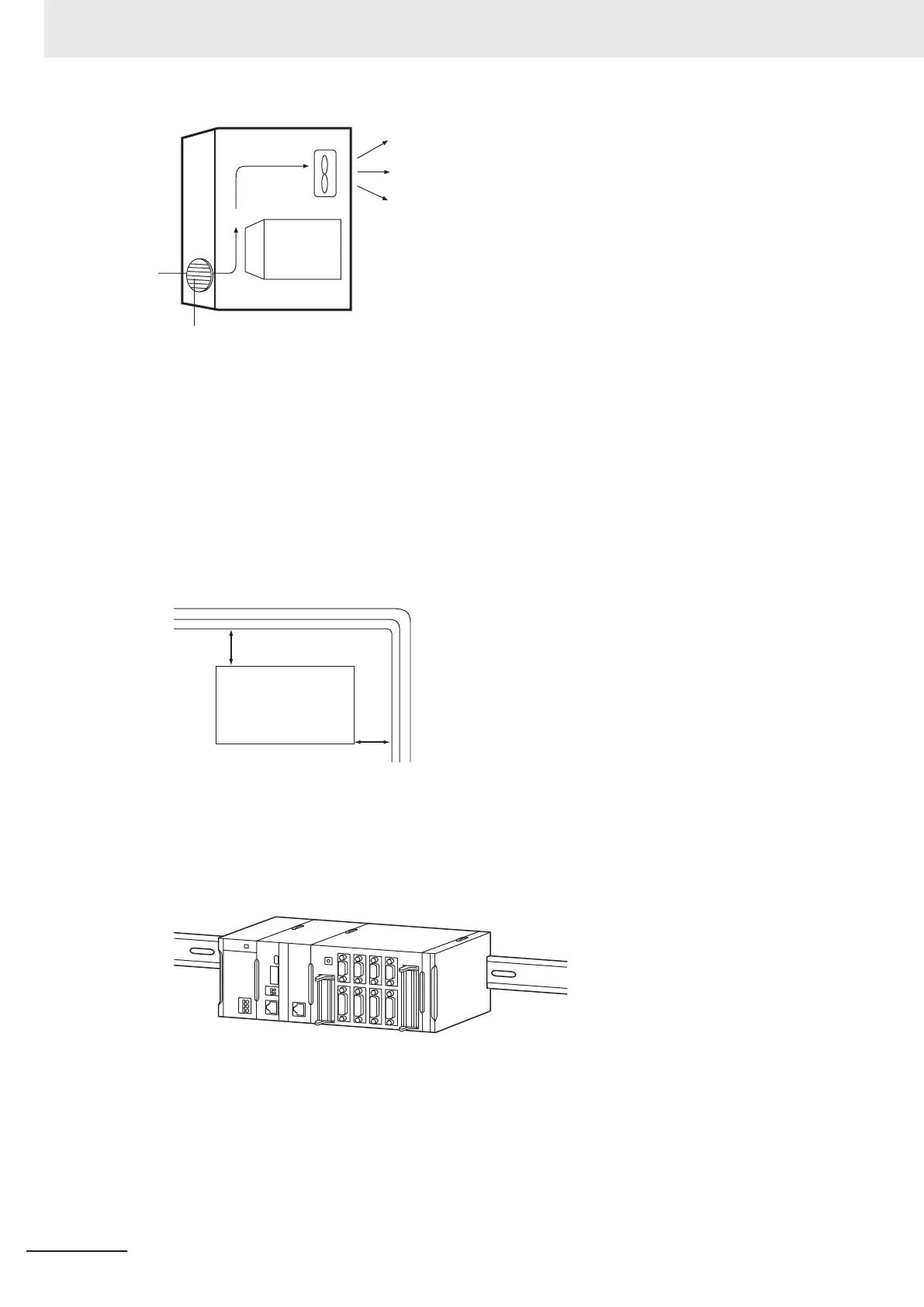

Louver
Control panel
CK3M
-series
Controller
Fan
Accessibility for Operation and Maintenance
• To ensure safe access for operation and maintenance, separate the Controller as much as possi-
ble from high-voltage equipment and power machinery
.
• It will be easy to operate the Controller if it is mounted at a height of 1.0 to 1.6 m above the floor.
Improving Noise Resistance
• Do not mount the Controller in a control panel containing high-voltage equipment.
• Install the Controller at least 200 mm away from power lines.
CK3M-series
C
ontroller
Power lines
200 mm
min.
200 mm min.
• Ground the mounting plate between the Controller and the mounting surface.
Controller Orientation
• Each Rack must be mounted in the following position to provide proper cooling. This position is
called an upright position.
• Do not install a Rack in any of the following positions.
4 Installation
4-6
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
