• Use an isolating transformer to significantly reduce noise between the Controller and the ground. In-
stall the isolating transformer between the Controller power supply and the noise filter
, and do not
ground the secondary coil of the transformer.
• Keep the wiring between the transformer and the Controller as short as possible, twist the wires
well, and keep the wiring separate from high-voltage and power lines.
Unit power supply for Controller
I/O power supply for Controller
Power Supply Sy
stem Diagram
Power circuits
Power supply for general operations circuits
Outlet (for peripheral devices)
I/O power supply for Controller
Noise
filter

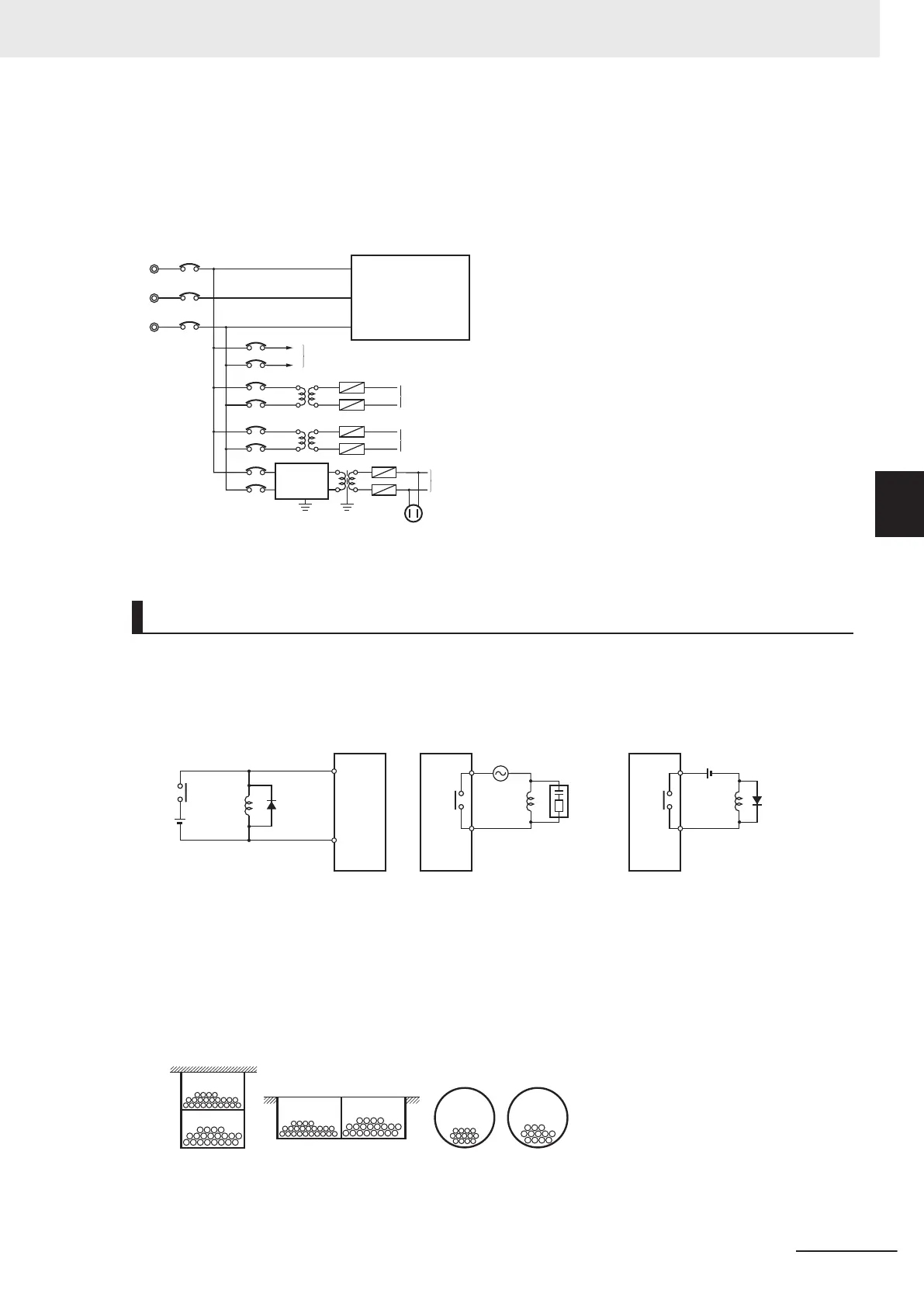

Wiring External I/O Signal Lines
Observe the following points when wiring external I/O signal lines.
•
To absorb reverse electromotive force when an inductive load is connected to an output signal, con-
nect a surge suppressor near the inductive load in an AC circuit, or connect a diode near the induc-
tive load in a DC circuit.
Input Signal Noise Countermeasures
DC
I
nput
Unit,
Built-in
Input
Inductive
load
Dio
de
Connect a diode in a DC circuit.
Output Signal Noise Countermeasures
Output
U
nit
Output
Unit
Connect a diode
in a DC circuit.
Connect a surge
suppressor in an
AC circuit.
Inductive
load
Diode
Inductive
load
Surge
suppressor
• Never bundle output signal lines with high-voltage or power lines, and do not route them in close
proximity or parallel to such lines.
If output signal lines must be routed in close proximity to such lines, place them in separate ducts or
conduits. Be sure to ground the ducts or conduits.
I/O Cable Arrangement
Floor ducts ConduitsSuspended ducts
I/O cables
I/O cables
Power lines
Power
lines
I/O cables
Power lines
4 Installation
4-21
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
4-4 Control Panel Installation
4
4-4-5 Electrical Environment
