Omron CK3M Series User Manual

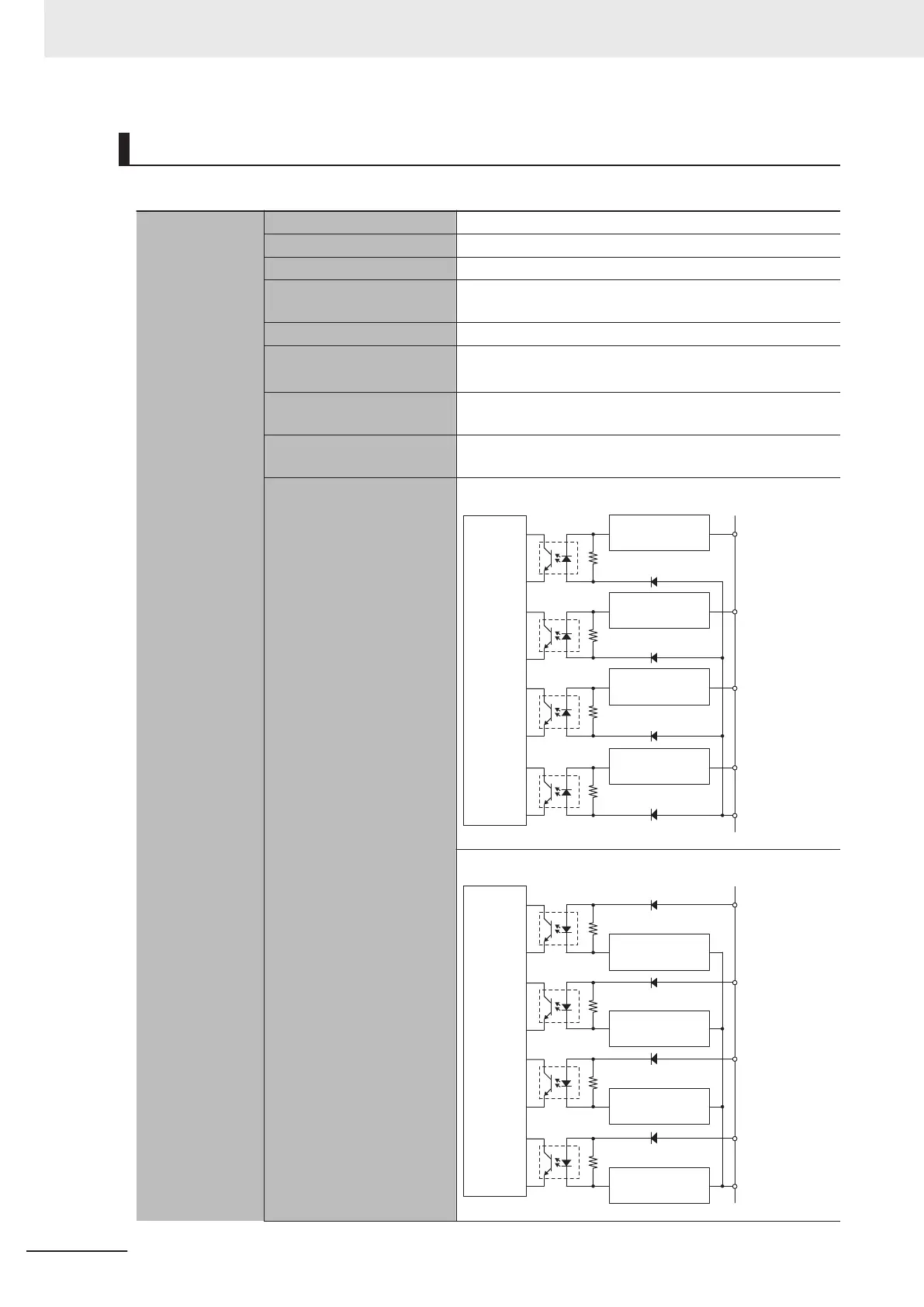

Electrical Specifications of Flag Connection Terminal Block
This section describes the electrical specifications for the flag connection terminal block.
Digital Input
Specifications
Input signal HOME, PLIM, NLIM, USER/Channel
Rated input voltage 5 to 24 VDC
Maximum input voltage 26.4 VDC
Input current HOME, PLIM, NLIM: 7.0 mA typical (24 VDC)
USER: 9.3 mA typical (24 VDC)
ON voltage/ON current 3 VDC min. / 1 mA min.
OFF voltage/OFF current
*1
1.0 VDC max. / 0.1 mA max.
ON/OFF response time HOME, PLIM, NLIM: 20 μs max./400 μs max.
USER: 20 μs max./20 μs max.
Isolation method Isolation by Photocoupler (between input and internal cir-
cuit)
Circuit configuration NPN type
HOME 0 to 3
PLIM 0 to 3
NLIM 0 to 3
USER 0 to 3
V_FLAG 0 to 3
Current control
circuit
Current control
circuit
Current control
circuit
Current control
circuit
Internal
circuit
PNP type
HOME 0 to 3
PLIM 0 to 3
NLIM 0 to 3
USER 0 to 3
G_FLAG 0 to 3
Current
control circuit
Current
control circuit
Current
control circuit
Current
control circuit
Internal
circuit
3 Configuration Units
3-34
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
