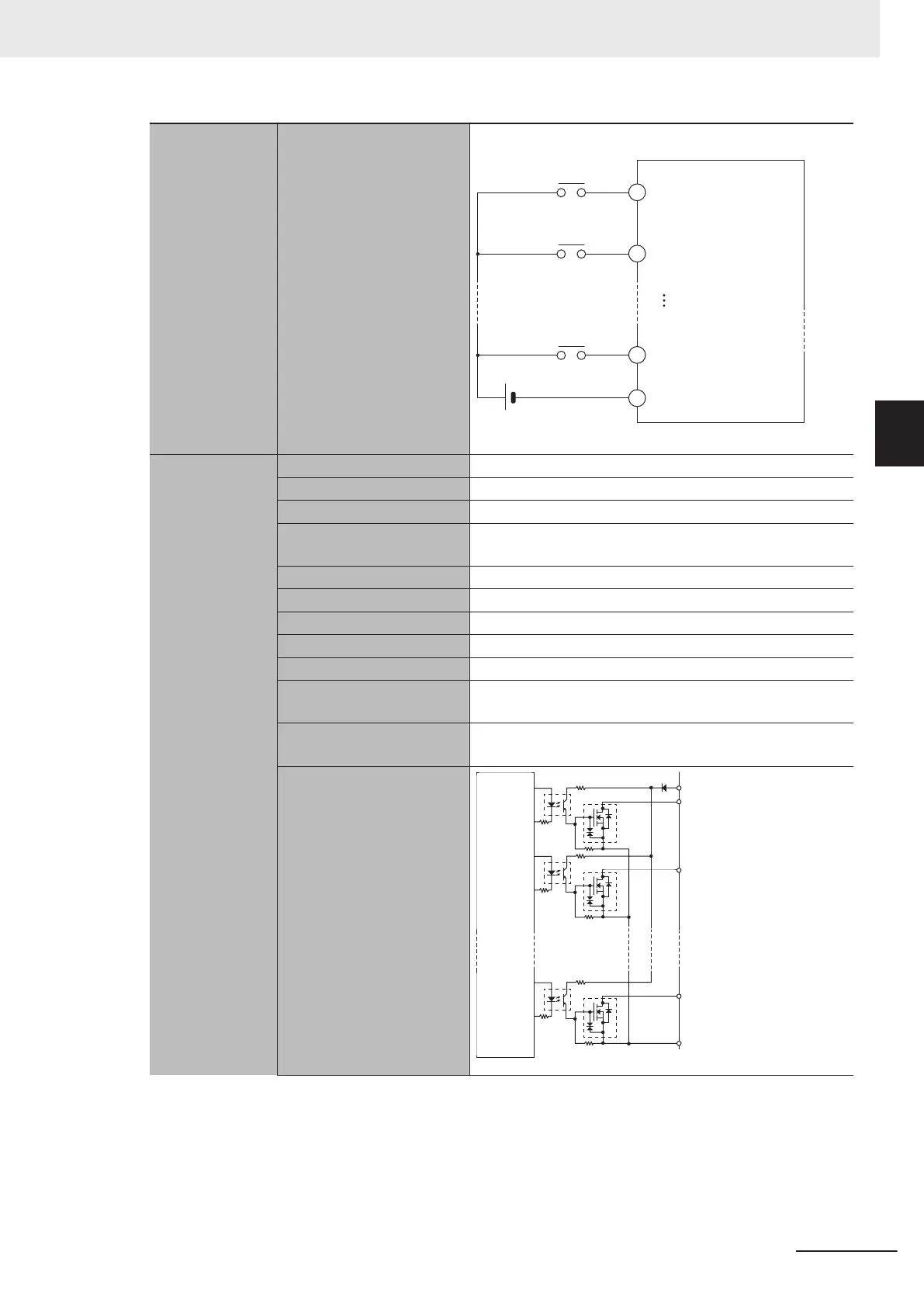

Omron CK3M Series User Manual

PNP type
24 VDC
I
N00
IN01
IN15
G1
Digital output
(NPN)
Internal common NPN
Rated voltage 12 to 24 VDC
Current consumption 40 mA max.
Operating load voltage
range
10.2 to 26.4 VDC
Maximum load current 0.5 A/point, 2 A/Unit
Maximum inrush current 4.0 A/point, 10 ms max.
Leakage current 0.1 mA max.
Residual voltage 1.0 V max.
ON/OFF response time 0.1 ms max./0.8 ms max.
Isolation method Isolation by Photocoupler (between output and internal cir-
cuit)
Load short-circuit preven-
tion
Not provided
Circuit configuration
Internal
ci
rcuit
V2
G2
OUT00
OUT01
OUT15
3 Configuration Units
3-45
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
3-4 Digital I/O Unit
3
3-4-1 Models and Specifications

Omron CK3M Series Specifications

General

Brand	Omron
Model	CK3M Series
Category	Controller
Language	English
