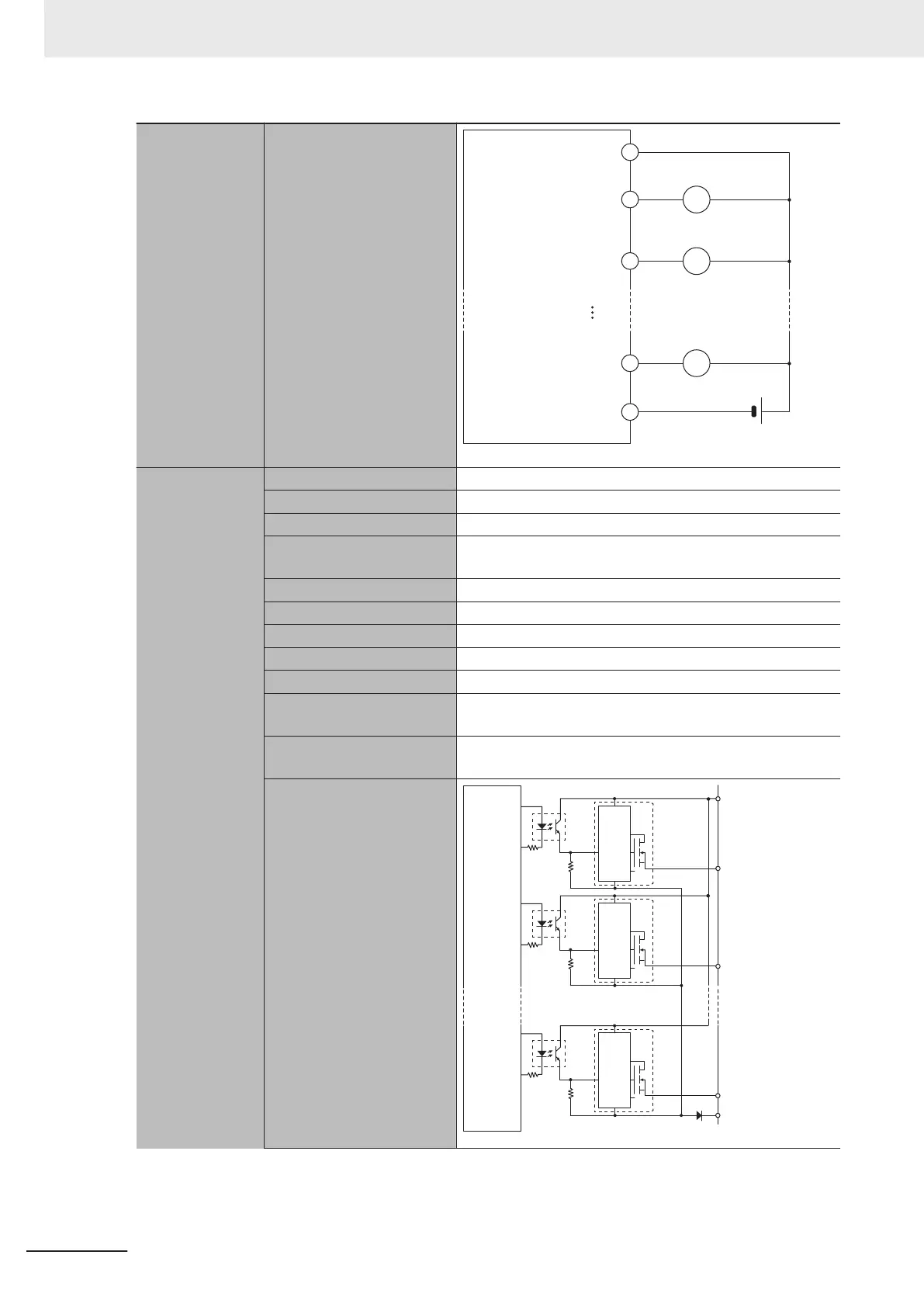

Connection diagram
12 to 24 VDC
V2
OUT
00
OUT01
OUT15
G2
L
L
L
Digital output
(PNP)
Internal common PNP
Rated voltage 12 to 24 VDC
Current consumption 80 mA max.
Operating load voltage
range
10.2 to 26.4 VDC
Maximum load current 0.5 A/point, 2 A/Unit
Maximum inrush current 4.0 A/point, 10 ms max.
Leakage current 0.1 mA max.
Residual voltage 1.0 V max.
ON/OFF response time 0.1 ms max./0.8 ms max.
Isolation method Isolation by Photocoupler (between output and internal cir-
cuit)
Load short-circuit preven-
tion
Provided
Circuit configuration
Internal
circuit
V2
G2
OUT00
OUT01
OUT15
Short-circuit
protection
Short-circuit
protection
Short-circuit
protection
3 Configuration Units
3-46
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
