6-1 Performing Test Measurement
6

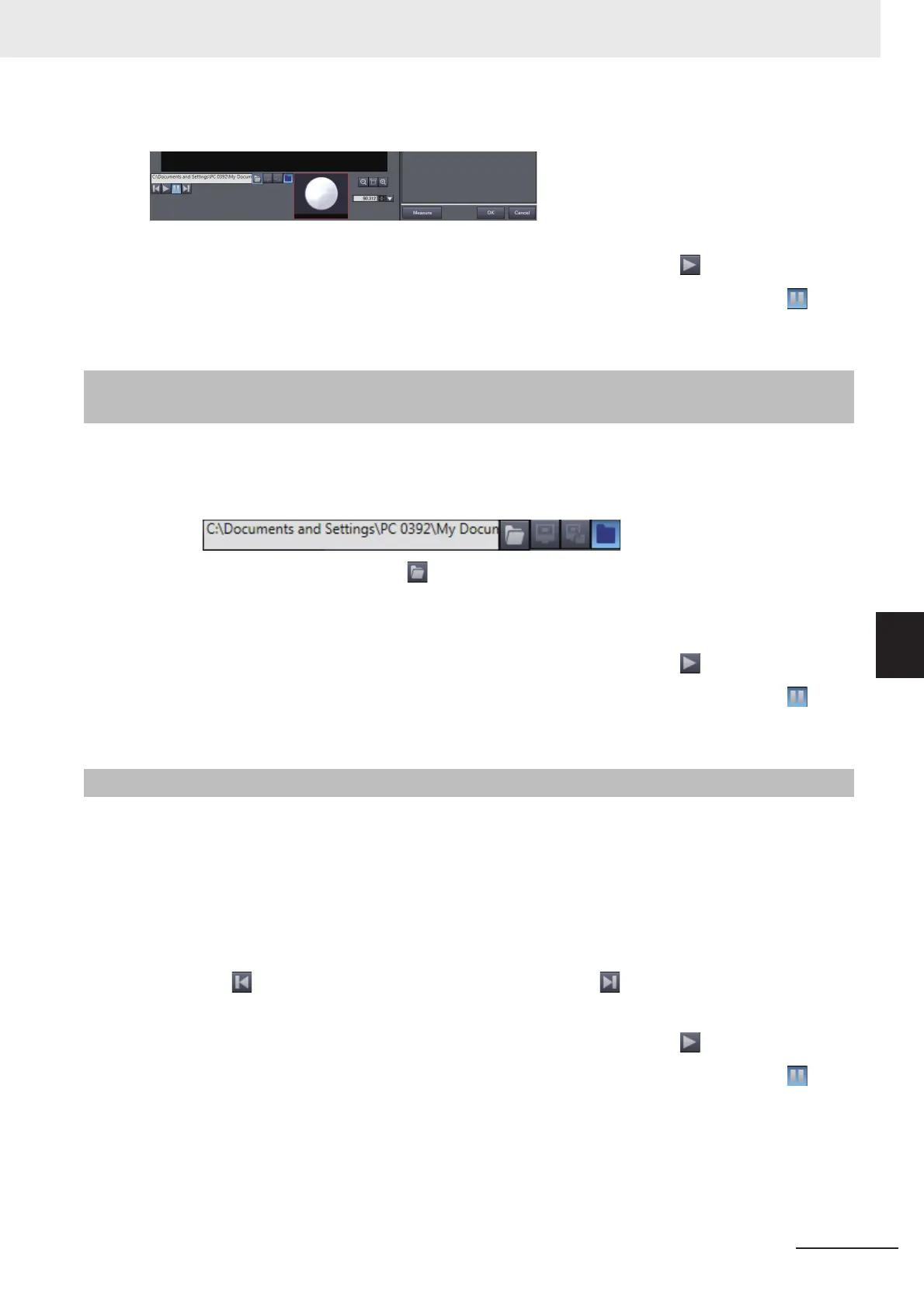

6-1-2 Measuring File Images in the RAMDisk or the External Memory, i.e. USB Memory of the Vision Sensor
<Processing unit editing screen>
To start continuous measurement, click the continuous measurement button ( ).
If you wish to stop continuous measurement, click the continuous measurement stop button ( ).
The settings data cannot be edited during continuous measurement.
Select the measurement target file and click the [Measure] button.
Select the file as described below.
1 Click the [File] button.
2 Click the file selection button ( ) and then select the target file.
3 Click the [Measure] button.
To start continuous measurement, click the continuous measurement button ( ).
If you wish to stop continuous measurement, click the continuous measurement stop button ( ).
The settings data cannot be edited during continuous measurement.
Select the measurement target logging image and click the [Measure] button.
Select the file as described below.
1 Click the [Logging image] button.
2 Click the [Measure] button.
If you wish to change the measurement target logging image, click the button for measuring the previ-
ous image ( ) or click the button for measuring the next image ( ).
To start continuous measurement, click the continuous measurement button ( ).
If you wish to stop continuous measurement, click the continuous measurement stop button ( ).
The settings data cannot be edited during continuous measurement.
6-1-2 Measuring File Images in the RAMDisk or the External Memory,
i.e. USB Memory of the Vision Sensor
6-1-3 Measuring Logging Images in the Vision Sensor Memory
