2-6 Basic Operations of Flow Editing
2
2-6-1 Adding a Processing Unit

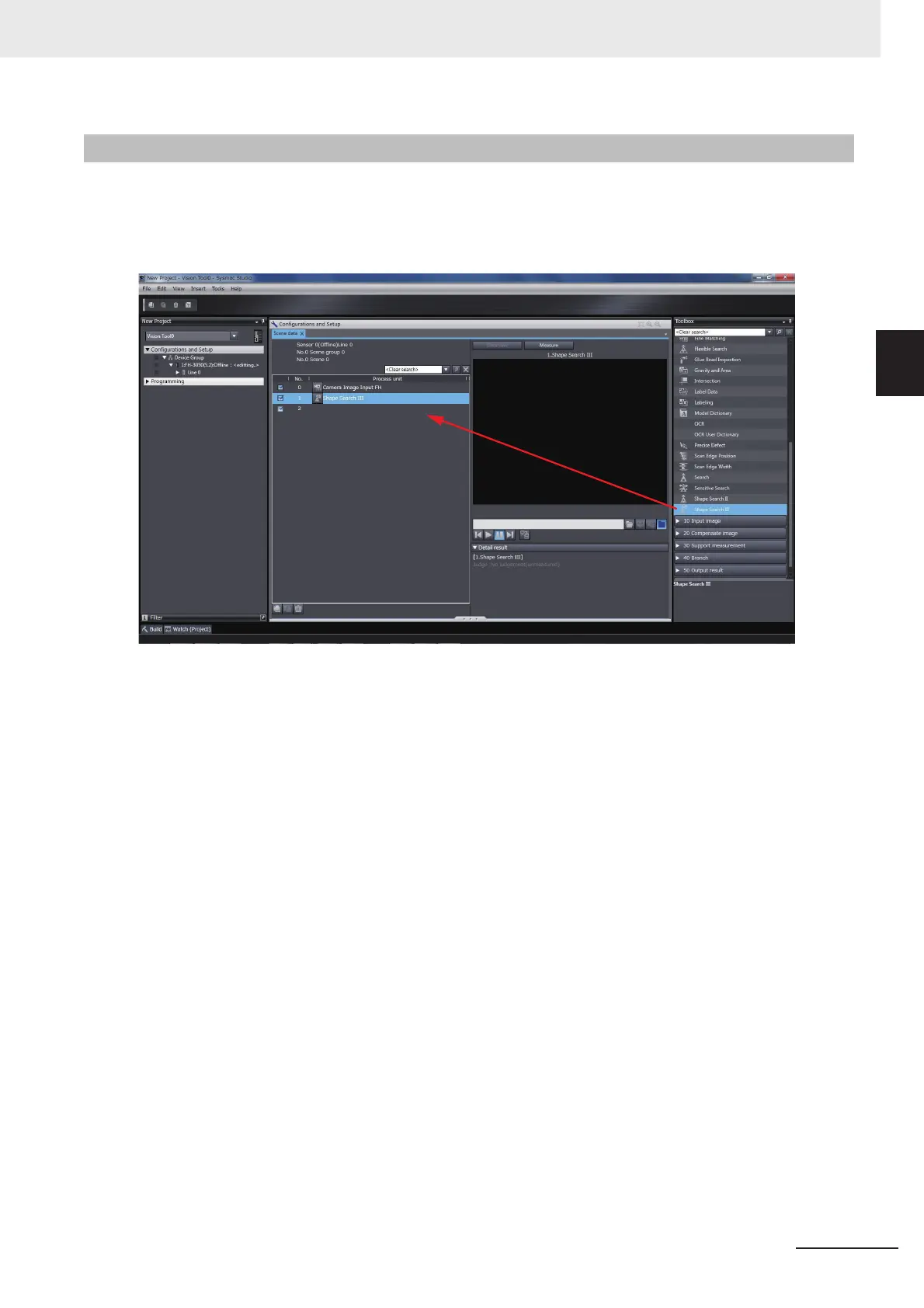

When you wish to add a new processing unit to the flow, first select any processing unit from the Tool-
box.
Then drag the selected processing unit to the place you wish to insert it in the flow list.
2-6-1 Adding a Processing Unit
