3 Connecting with a Vision Sensor
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
3-3 Synchronizing Project Data and Sensor Setting Data
3
3-3-2 Transferring Setting data in the Sensor to a Project
3 Initiate the data transfer.

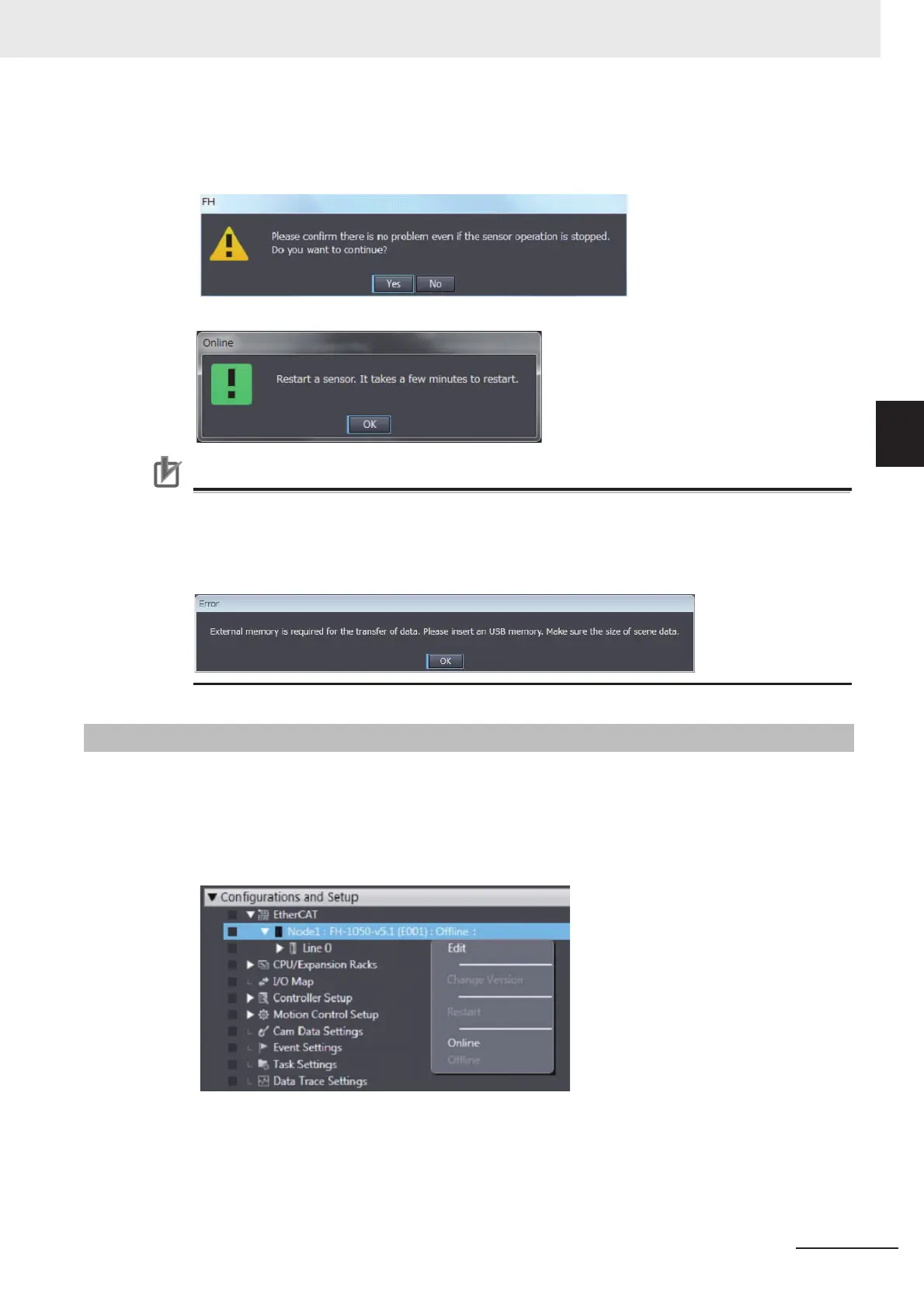

To transfer the project data to the FH vision sensor, select [Transfer to Sensor]. Choose [Yes]
when the below message appears to begin the transfer.
Once the transfer is finished, restart the FH vision sensor. Click [OK].
Precautions for Correct Use
To transfer settings data with large file sizes, you will need to use a compatible external mem-
ory device that can be inserted into the FH vision sensor.
If the below message appears to indicate that the file size is too large for a normal transfer,
insert a compatible memory device with enough free space to proceed.
1 Establish an online connection for the vision sensor.
Establish an online connection for the FH vision sensor that you wish to transfer its data to the
project. For details, refer to 3-2 Establishing an Online Connection with a Vision Sensor on page
3-4.
2 Switch to offline.
After establishing an online connection, switch the FH vision sensor to offline.
3-3-2 Transferring Setting data in the Sensor to a Project
