8-9-3 Saving the Logged Images to Files
The logged image files in FH Vision Sensor can be saved as bitmap or JPEG.

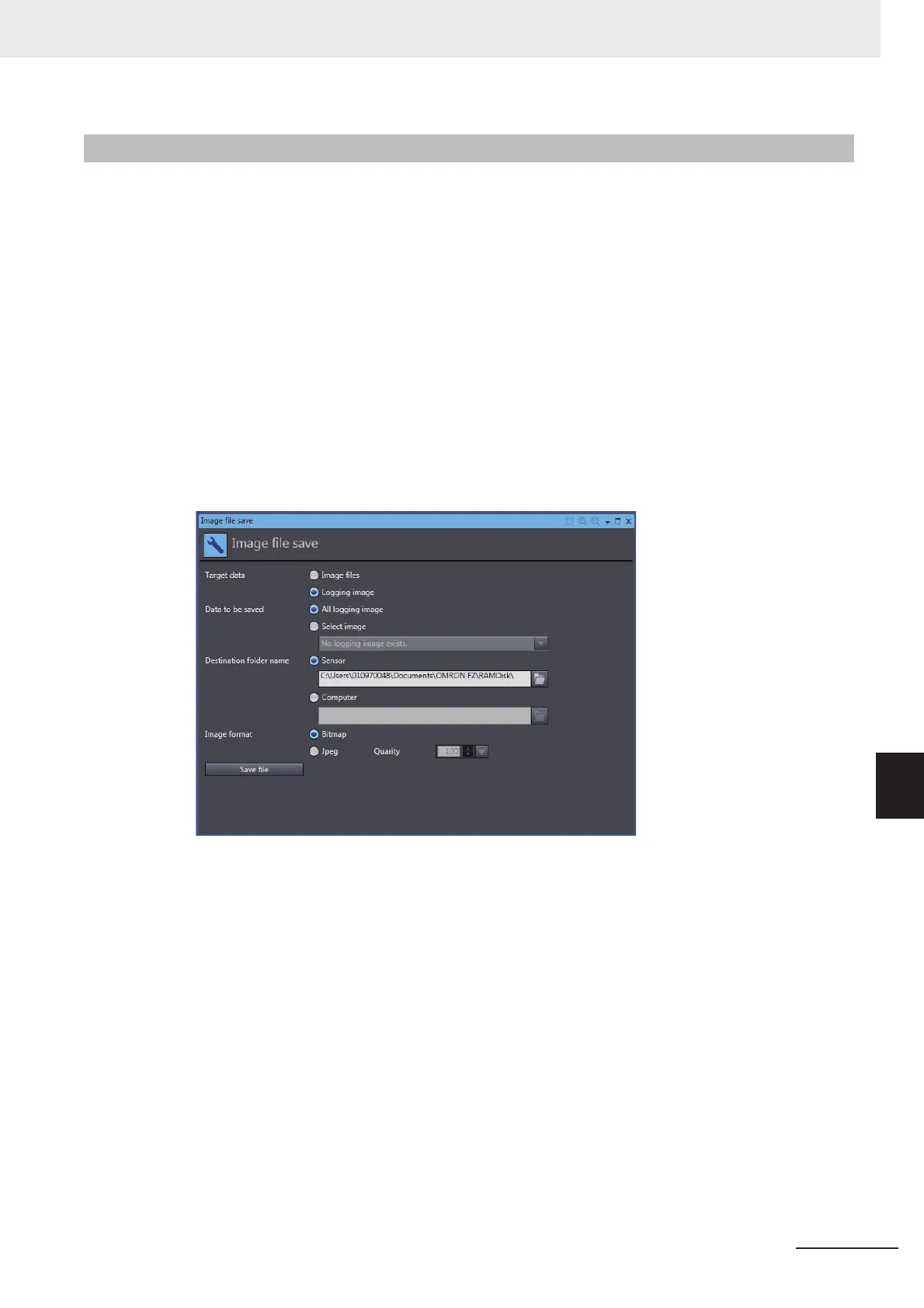

1 Select [Logging image] for [Target data].
2 Select the image file.
The options below can be selected:
• save all logged images, or
• save a single specified logged image.
3 Select the save destination folder.
Select [Sensor] to save the file(s) in the RAMDisk of FH Vision Sensor.
Select [Computer] to save the file(s) in the computer.
4 Initiate saving.
Click on the [Save file] button to save the image file(s).
The selected file(s) are saved as the specified format.
