2 - 7
2 Basic Operations
Vision System FH Series Operation Manual for Sysmac Studio (Z343)
2-3 Creating a New Project
2
2-3-1 Creating a New Project File from the Project Window

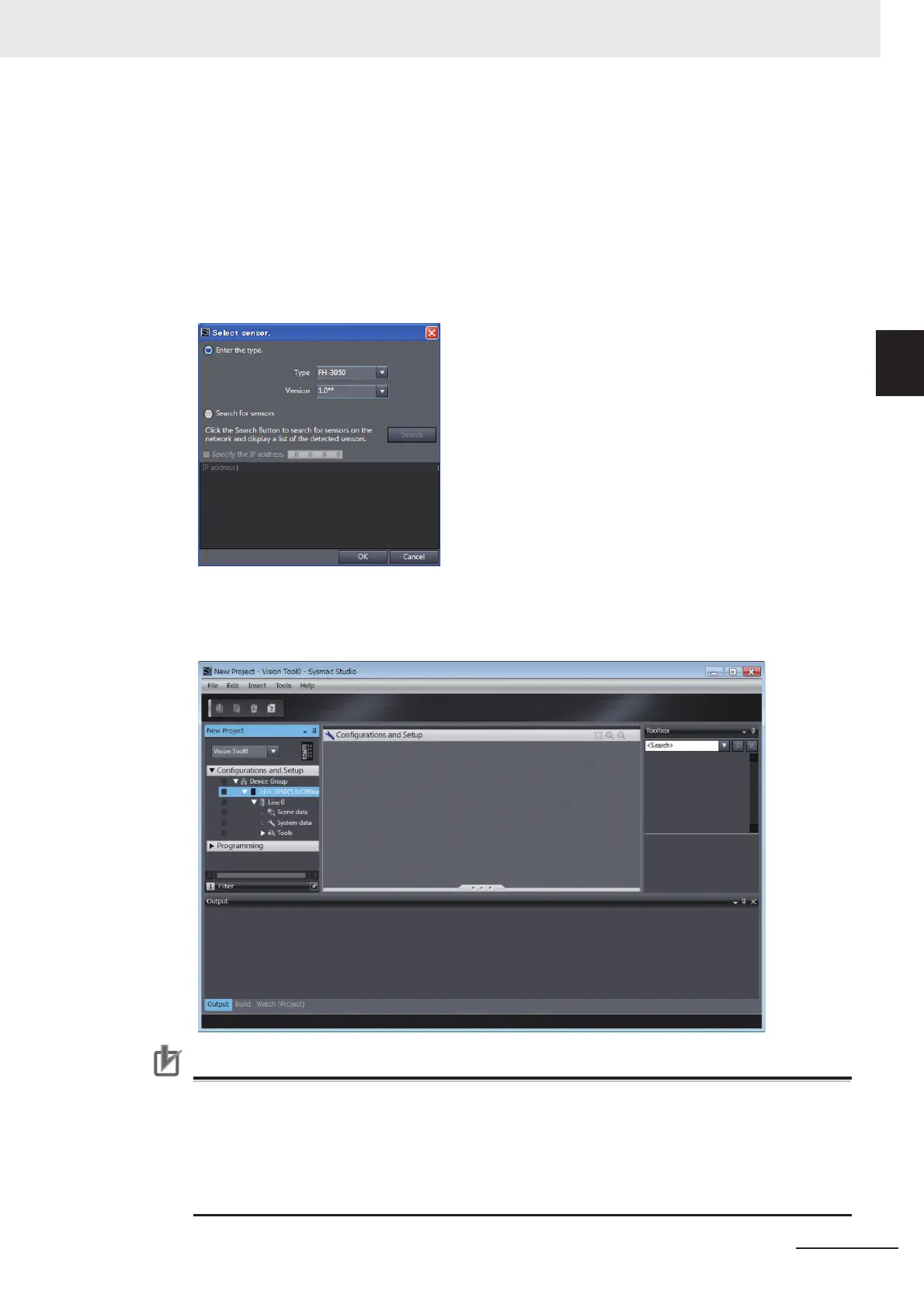

3 Select the FH vision sensor to connect to.
When establishing an online connection, click [Search for sensors] and then click the [Search]
button. The found sensors are displayed in a list. Select the sensor you wish to connect to and
then click the [OK] button.
If you know the IP address of the sensor you wish to connect to beforehand or will connect to a
sensor via a router, select the [Specify the IP address] check box and then enter the IP address
in [IP address]. After input is complete, click the [OK] button.
If you wish to edit the settings offline, click [Enter the type], select the [Type] and [Version] items
for the sensor you wish to edit, and then click the [OK] button.
4 A new project is created.
The project file is created and the next screen appears.
Precautions for Correct Use
• An online connection cannot be established if the FH device registered to the project and the
actual device are not the same type and version.
• If there is already a different FH slave device in the project with an established online con-
nection, you will not be able to establish an online connection for a new FH slave device.
To establish an online connection for a new FH slave device, switch the other FH slave
device from online to offline.
To Next Page
