DIN Track
DIN Track

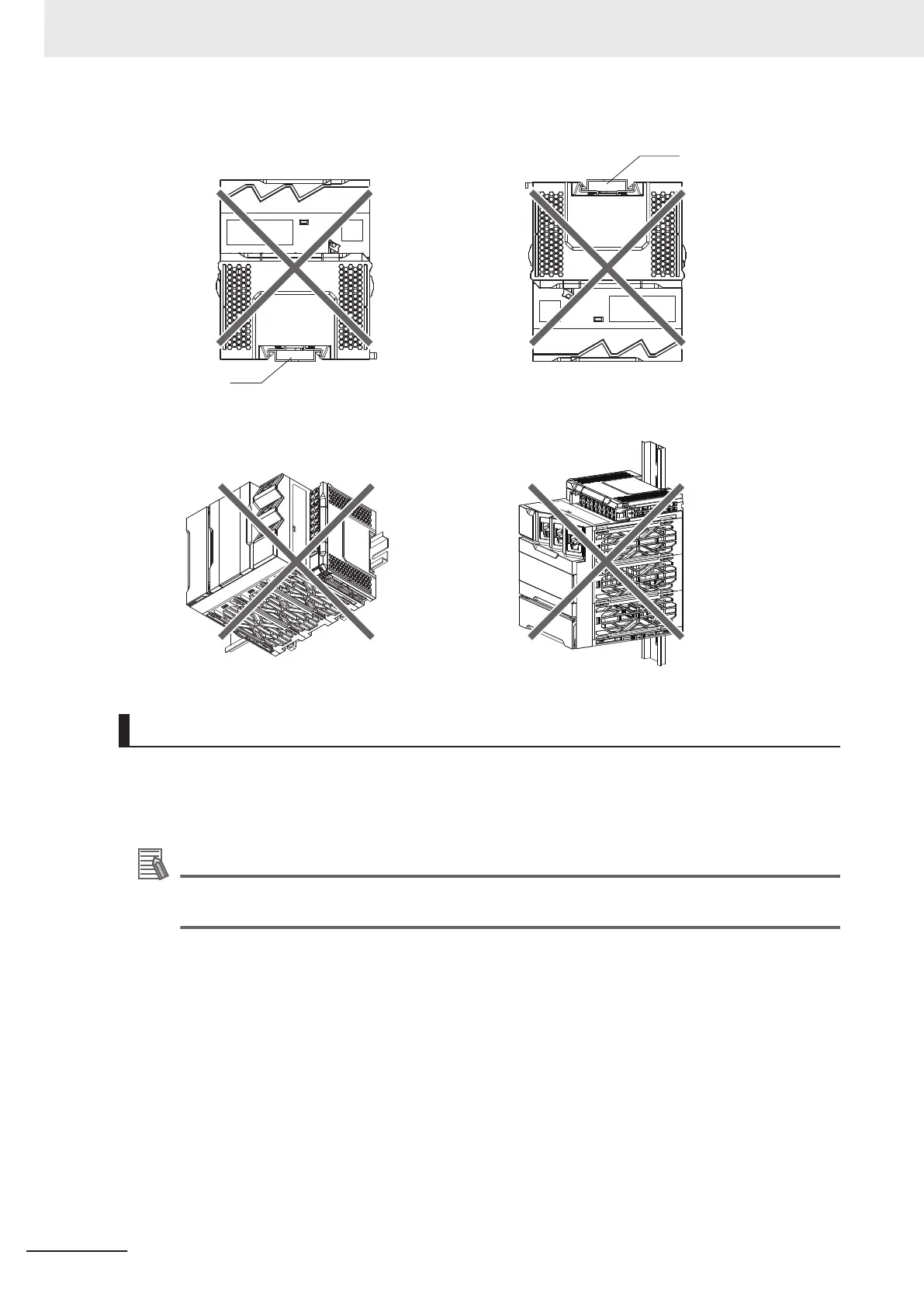

Mounting with the DIN Track on the Bottom Mounting with the DIN Track on the Top
Mounting with the Rack Upside Down Mounting with the DIN Track Installed Vertically
Installation Method in Control Panels
An NX-series Controller must be mounted inside a control panel on DIN Track.
• Consider the width of wiring ducts, wiring, ventilation, and Unit replacement when determining the
space between the CPU Rack and other devices.
Additional Information
A Controller must be mounted on DIN Track.
It cannot be mounted with screws.
l
Wiring Ducts
Whenever possible, route I/O wiring through wiring ducts.
Install mounting bracket so that it is easy to fish wire through the duct. It is handy to have the duct
at the same height as the CPU Rack.
5 Installation and Wiring
5-10
NX-series NX502 CPU Unit Hardware User's Manual (W629)
