Omron NX Series Hardware User Manual

1
1

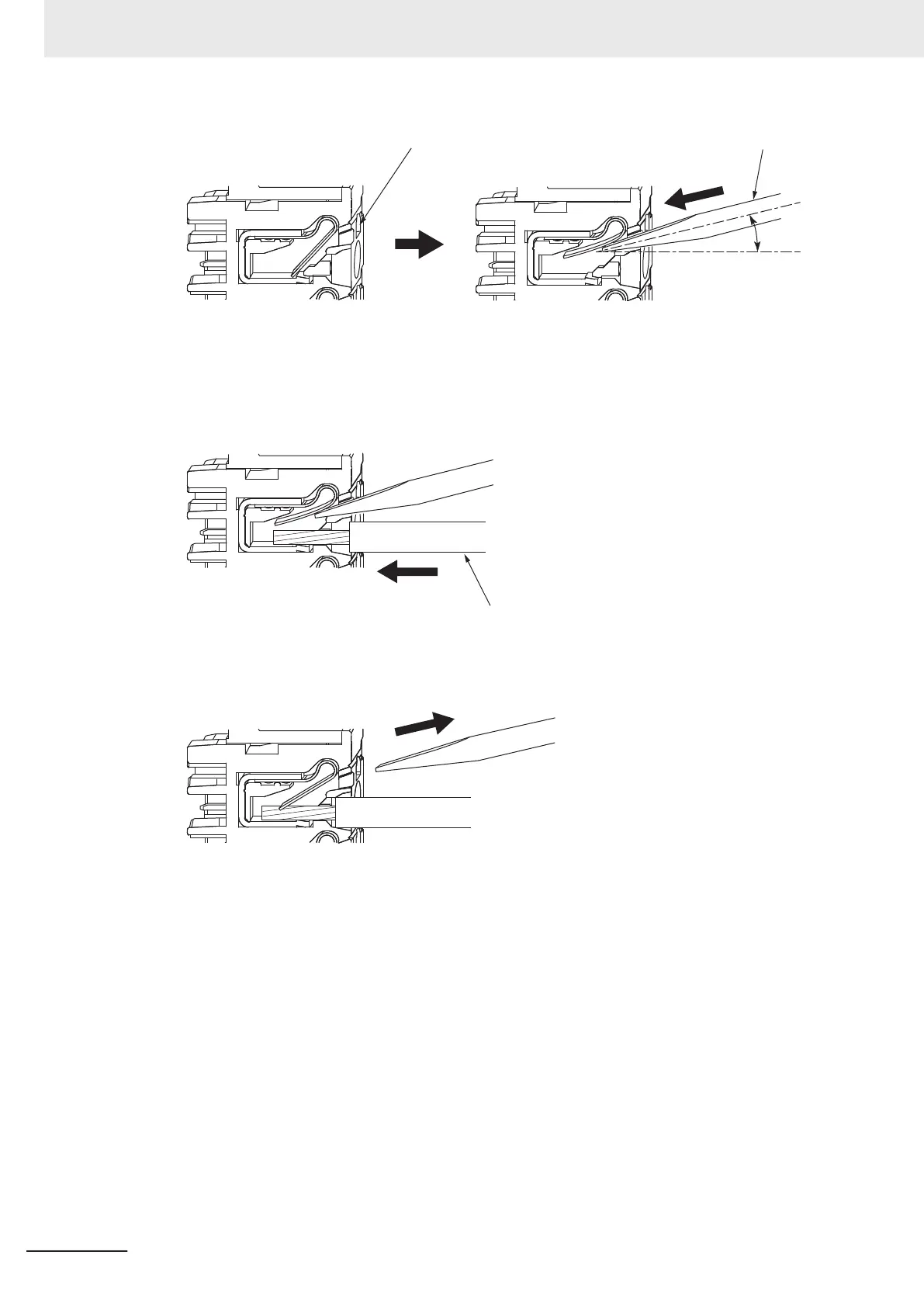

0 to 15°
Flat-blade screwdriver
Release hole
2 Leave the flat-blade screwdriver pressed into the release hole and insert the twisted wire or the
solid wire into the terminal hole.
Insert the twisted wire or the solid wire until the stripped portion is no longer visible in the termi-
nal hole to prevent shorting.
2
Twisted wire/Solid wire
3 Remove the flat-blade screwdriver from the release hole.
3
After you make a connection, lightly pull the twisted wire or the solid wire to make sure that the wire
is securely connected to the terminal block.
5 Installation and Wiring
5-46
NX-series NX502 CPU Unit Hardware User's Manual (W629)
