Omron NX Series Hardware User Manual

1 2 3 4 5 6
○No. 1 ○ ○
○No. 2 ○ ○
○No. 3 ○ ○
○No. 4 ○ ○
○No. 5 ○ ○
○No. 6 ○ ○
○No. 7 ○ ○
○No. 8 ○ ○
○No. 9 ○ ○
○No. 10 ○ ○
No. 11 ○ ○ ○
No. 12 ○ ○ ○
No. 13 ○ ○ ○
No. 14 ○ ○ ○
No. 15 ○ ○ ○
No. 16 ○ ○ ○
No. 17 ○ ○ ○
No. 18 ○ ○ ○
No. 19 ○ ○ ○
No .20 ○ ○ ○
1 2 3 4 5 6
○ ○ ○
○ ○ ○
○○ ○
○○ ○
○ ○ ○
○○ ○
○○ ○
○○ ○
○○ ○
○○○
○ ○ ○
○○ ○
○○ ○
○○ ○
○○ ○
○○○
○○ ○
○○ ○
○○○
○○○

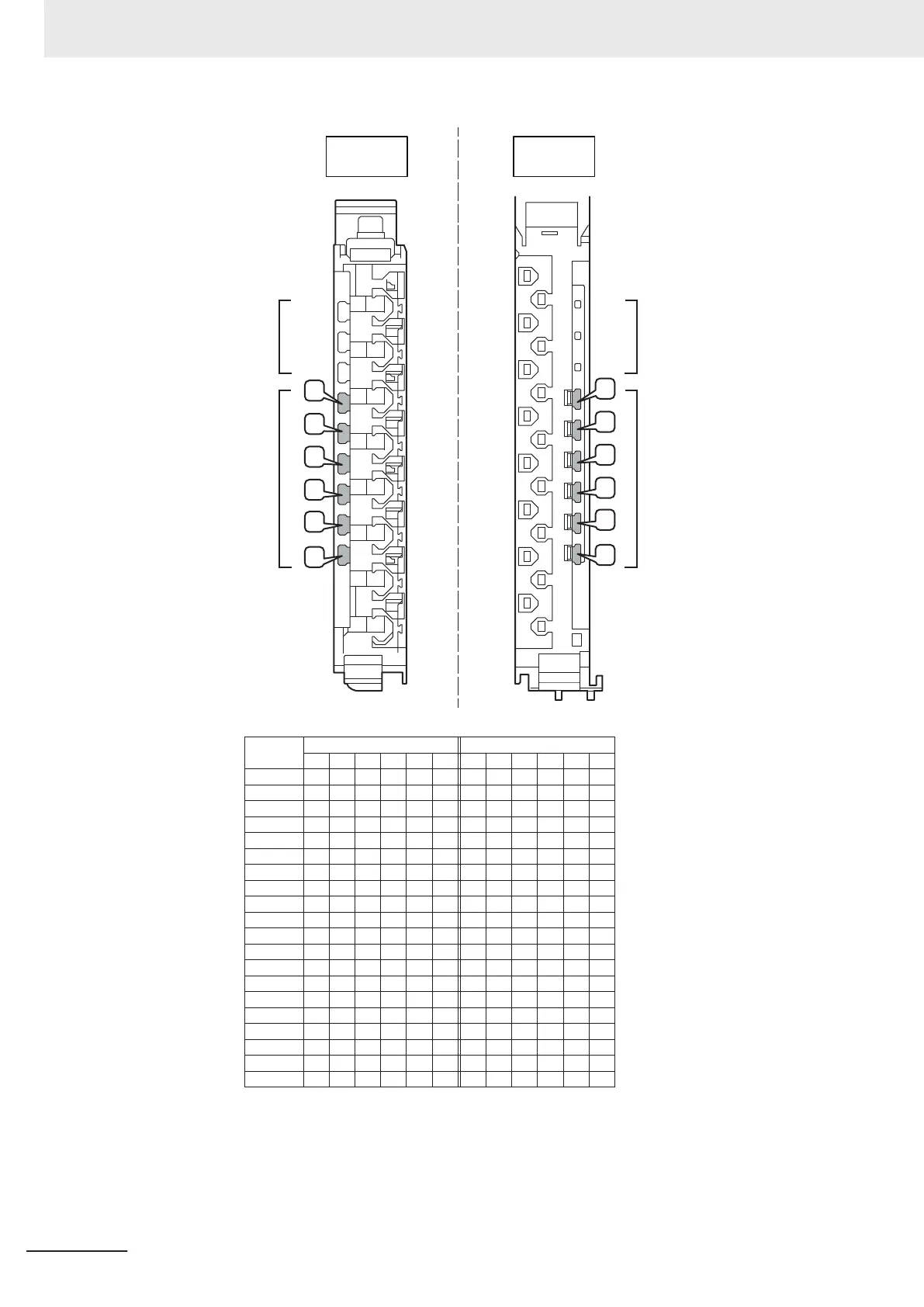

Pattern
Pin locations for terminal block
Pin locations for Unit
○: Pin inserted
Unit
Terminal
block
1
2
3
4
5
6
1
2
3
4
5
6
Holes used
by OMRON
Holes used
by OMRON
Holes for incorrect
attachment
prevention
(pin locations)
Holes for incorrect
attachment
prevention
(pin locations)
To create the maximum 20 patterns of combinations, you need two NX-AUX02 sets (for 10 Units).
5 Installation and Wiring
5-54
NX-series NX502 CPU Unit Hardware User's Manual (W629)
