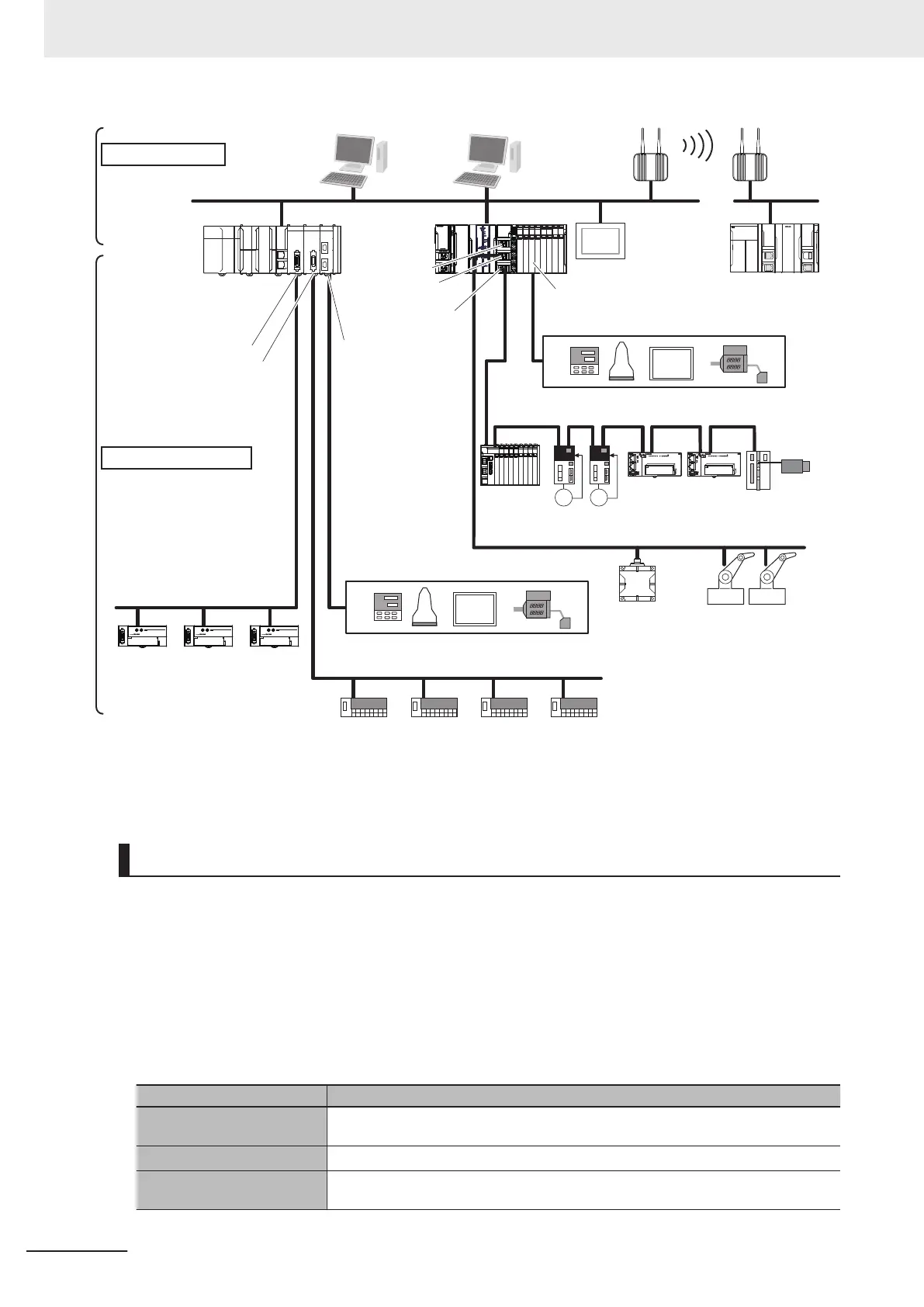

EtherNet/IP
Information Level
Built-in
EtherNet/IP port 1
Built-in EtherNet/IP
port 2
Built-in EtherCAT
port
Built-in EtherNet/IP ports
CompoNet Master Unit
CompoNet slaves
DeviceNet slaves
DeviceNet Unit
NJ-series
CPU Unit
Field Level
NX-series
NX502
CPU Unit
Serial Communica-
tions Unit
RS-232C,
RS-422A/485
RFID system Robots
Servo Drives
General-purpose
slaves
Serial communications devices
NX-series Communications
Interface Unit
General-purpose components or OMRON components
Serial communications devices
General-purpose components or OMRON components
NJ/NX-series
CPU Unit
Programmable
Terminal
FA Wireless
LAN Unit
FA Communica-
tions Software
Refer to the NJ/NX-series CPU Unit Software User’
s Manual (Cat. No. W501) for details on the net-
work configuration.
Support Software
You can use the following Support Software to set up, monitor, and debug an NX-series Controller.
• Sysmac Studio
The Sysmac Studio is the main Support Software that you use for an NX-series Controller
. On it,
you can set up the Controller configurations, parameters, and programs, and you can debug and
simulate operation.
• Other Support Software
The following Support Software is also included in the Sysmac Studio Software Package Standard
Edition.
Configuration software Application
Sysmac Studio The Sysmac Studio is used for sequence control, motion control, and all other operations
except those described below.
Network Configurator
The Network Configurator is used for tag data links on EtherNet/IP ports.
*1
CX-Integrator The CX-Integrator is used for remote I/O communications with a CJ-series DeviceNet Unit
or CJ-series CompoNet Master Unit.
