Omron TM Collaborative Robot S Series: TM12S and TM14S Hardware Installation Manual

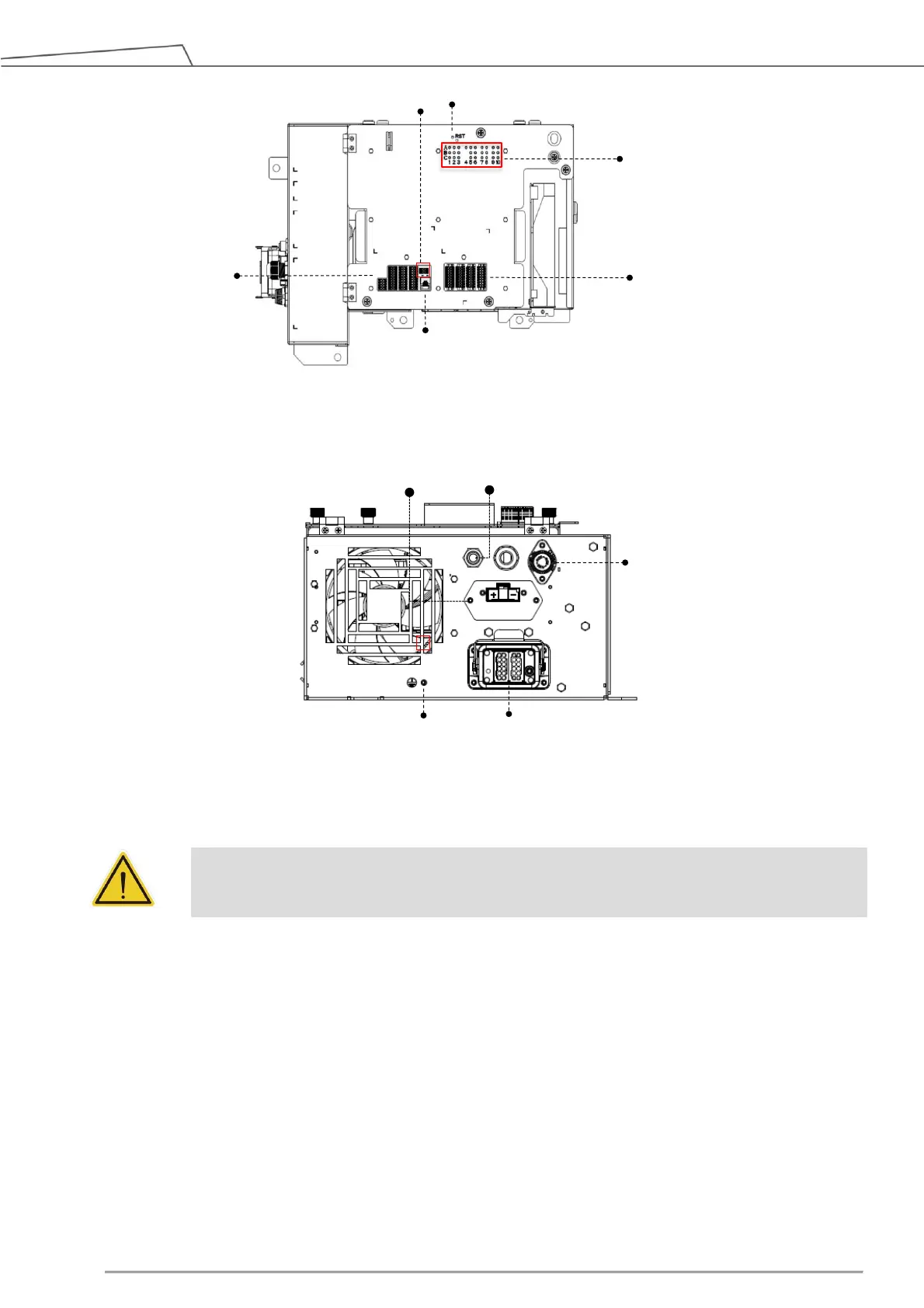

Figure 57: Front View of the Control Box (DC SEMI)

Figure 58: Side View of the Control Box (DC SEMI)

CAUTION:

The ETHERCAT interface can only be used to connect ETHERCAT devices. Improper

connection may cause the robot to stop.

Robot Status Display

Fuse holder

Safety I/O Interface

General I/O Interface

Power Remote ON/OFF

EtherCat

SSD Reset

Robot cable connector

DC adapter

EMO connector
