Omron SYSMAC C200HS Installation Guide

Appendix BSpecifications
113
DC Input Unit C200H-ID212
Rated Input Voltage 24 VDC
Operating Input Voltage 20.4 to 26.4 VDC
Input Impedance
3 kW
Input Current 7 mA (at 24 VDC)
ON Voltage 14.4 VDC min.
OFF Voltage 5.0 VDC max.
ON Response Time 1.5 ms max. (at 24 VDC, 25°C)
OFF Response Time 1.5 ms max. (at 24 VDC, 25°C)
No. of Circuits 1 (16 points/common)
Internal Current Consumption 10 mA 5 VDC max.
Weight 300 g max.
Dimensions B-shape

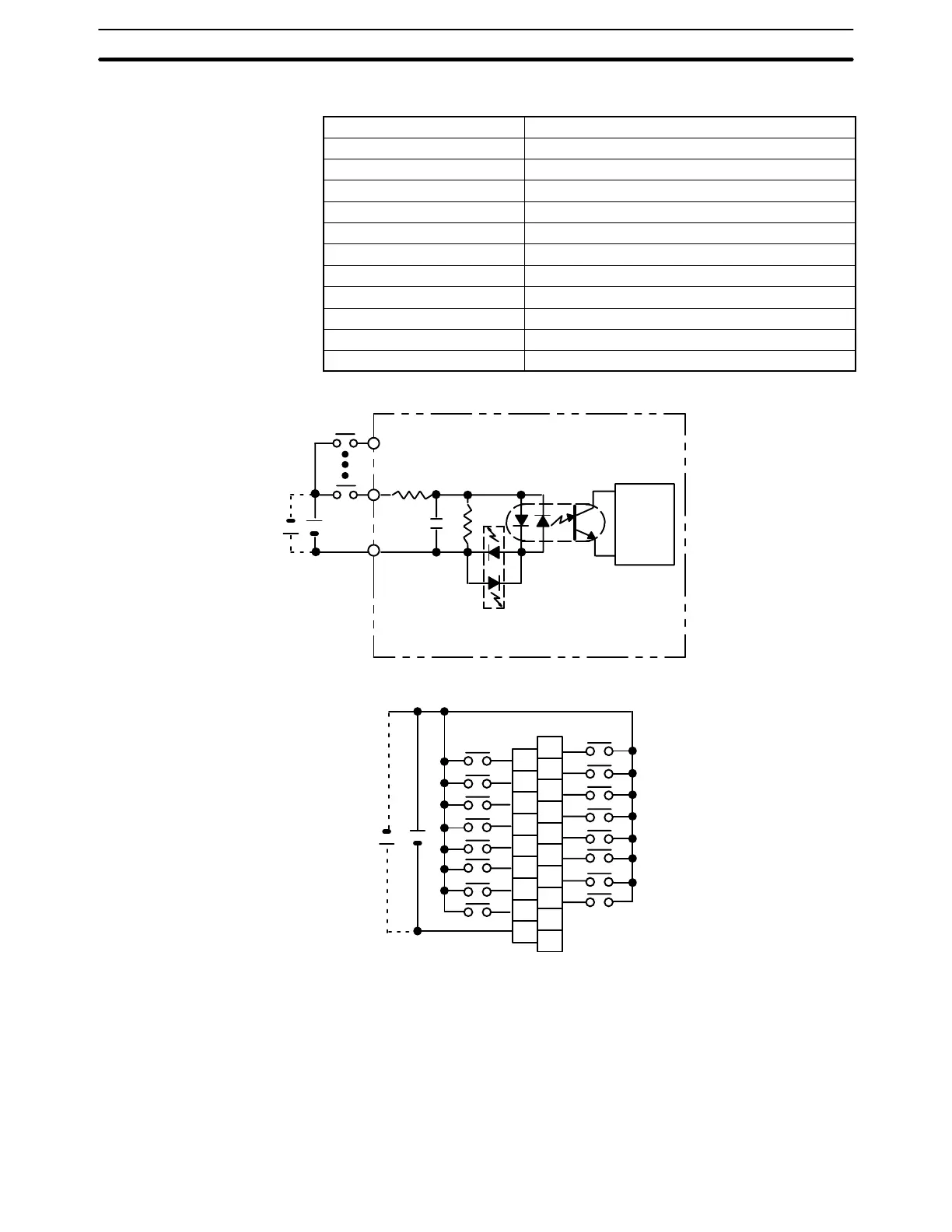

Circuit Configuration
IN
IN
COM
Internal
Circuit
24 VDC
3 kW
0.01
mF
Input indicator
1.8
k
W
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
COM
24 VDC
1
3
5
7
9
11
13
15
NC
0
2
4
6
8
10
12
14
NC
