Omron SYSMAC C200HS Installation Guide

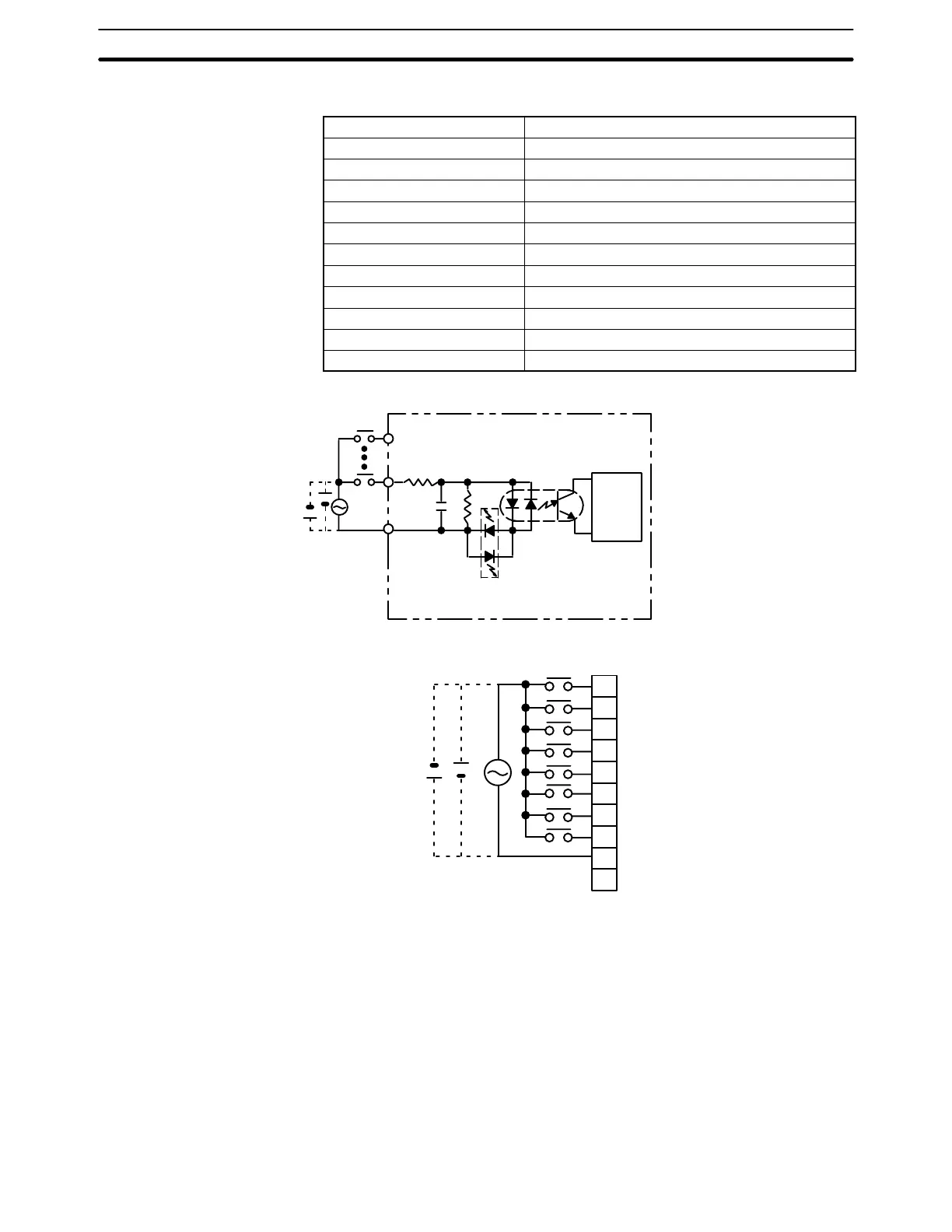

Appendix BSpecifications
114
AC/DC Input Unit C200H-IM211
Rated Input Voltage 12 to 24 VDC
Operating Input Voltage 10.2 to 26.4 VDC
Input Impedance
2 kW
Input Current 10 mA typical (at 24 VDC)
ON Voltage 10.2 VDC min.
OFF Voltage 3.0 VDC max.
ON Response Time 15 ms max. (at 24 VDC, 25°C)
OFF Response Time 15 ms max. (at 24 VDC, 25°C)
No. of Circuits 1 (8 points/common)
Internal Current Consumption 10 mA 5 VDC max.
Weight 200 g max.
Dimensions A-shape
Circuit Configuration
IN
IN
COM
Internal
Circuit
12 to
24 VAC/DC
2 kW
0.01
mF
Input indicator
1.8
k
W
Terminal Connections
COM
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
0
1
2
3
4
5
6
7
NC
12 to
24 VAC/DC
