Appendix BSpecifications
139

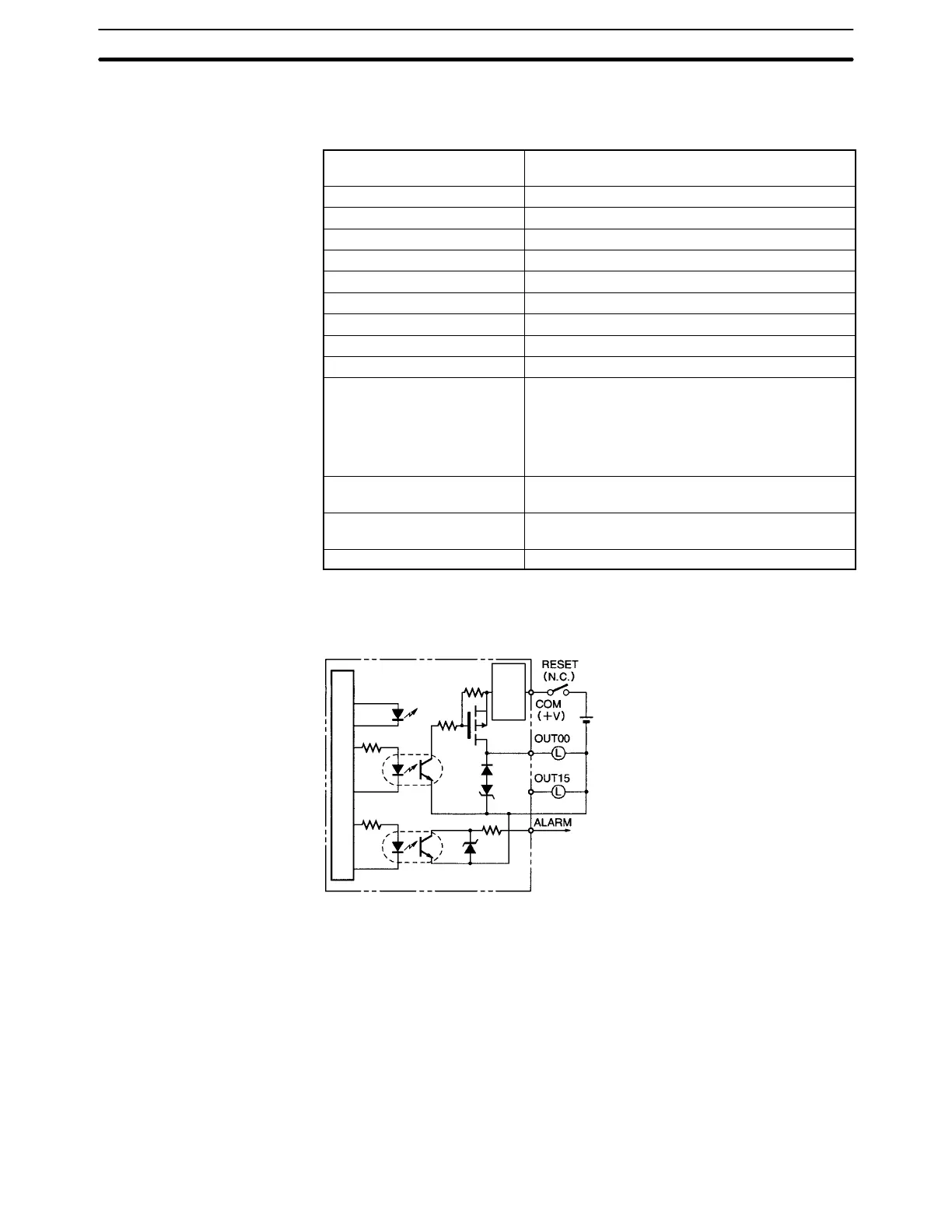

Transistor Output Unit C200H-OD21A
(Load Circuit Protection Provided)
Max. Switching Capacity 24 VDC
+10%
/
–15%
, 1.0 A (4 A/Unit) surge current
1.6 A (sourcing type) PNP output
Min. Switching Capacity None
Leakage Current 0.1 mA max.
Residual Voltage 0.8 V max.
ON Response Time 0.1 ms max.
OFF Response Time 0.3 ms max.
No. of Circuits 1 (16 points/common)
Internal Current Consumption 160 mA 5 VDC max.
Power for External Supply 35 mA 24 VDC
+10%
/
–15%
min.
Weight 400 g max.
Alarm Output (see note 1) No. of outputs: 1 (2 kΩ internal resistor)
Connectable Units: Only the following DC Input
Units and alarm output LED indicators can be
connected:
C200H-ID001, ID211, ID212, IM211 (DC), IM212
(DC), ID215, ID501, MD115, MD215, MD501
Reset Input Used when alarm output turns ON. Value will
depend on the external power supply. (See note 2.)
Load Short-circuit Protection Detection current: 1.2 A min.
(1.6 A typical)
Dimensions B-shape
Circuit Configuration
Internal Circuit
Output LED
indicator
0 V
2 kΩ
to
Short-circuit
protection
circuit
Note 1. When the short-circuit/overload protection is activated, all 16 outputs are switched OFF and the ALARM
output becomes active (low level). It is possible to determine the cause of the alarm by connecting either
a DC Input Unit to the alarm output or an alarm output LED indicator.
2. When alarm output turns ON, remove the cause of the overload, turn OFF the external power supply (for
about 1 s), and confirm that the error has been cleared before turning ON power again and restoring
output.
As indicated in the following terminal connections diagram, it is recommended that a relay or switch
used solely to turn ON and OFF the Unit’s external power supply be connected immediately in front of B9
(+V). In this case, use a relay or switch with a contact capacity that is greater than the current consump-
tion of the external power supply for the Unit (35mA) + the load current.
To Next Page
