Appendix BSpecifications
147

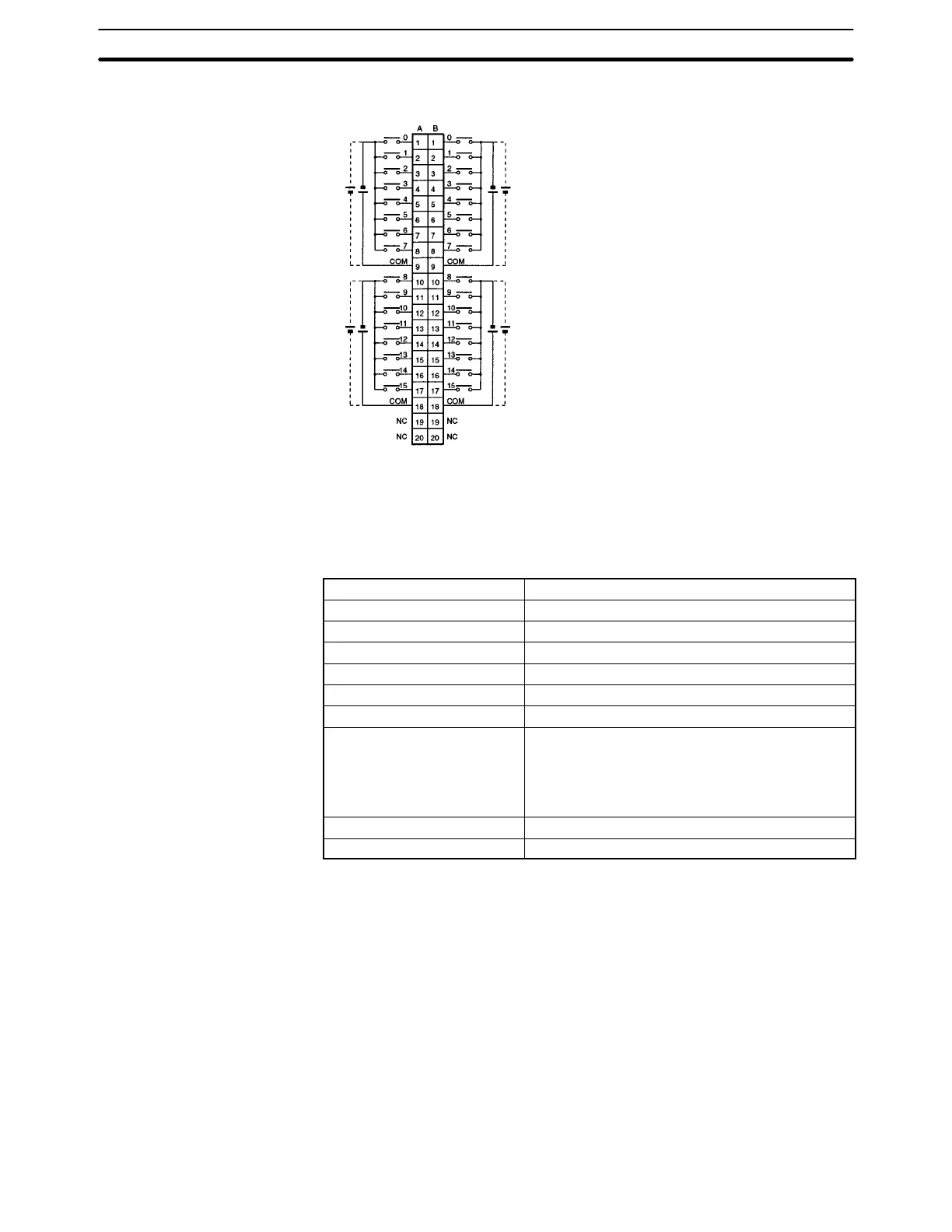

Terminal Connections
m words m + 1 words
(m = 030 + 2 × I/O number)
24 VDC
24 VDC
24 VDC
24 VDC
Note 1. The polarity of the input power supply can be either positive or negative. The polarity of all commons,
however, must be the same.
2. COM terminals must all be wired even though they are connected internally.
DC Input Unit C200H-ID219
Rated Input Voltage 24 VDC
+10%
/
–15%
Input Impedance 3.9 kΩ
Input Current 6 mA (at 24 VDC)
ON Voltage/ON Current 15.4 VDC min./3.5 mA min.
OFF Voltage/OFF Current 5.0 VDC max./1 mA max.
ON Response Time 1.0 ms max.
OFF Response Time 1.0 ms max.
No. of Circuits 64 (32 points/common)
Note The number of points that can be ON simulta-
neously is limited according to the ambient
temperature. Refer to the following diagram
for details.
Internal Current Consumption 120 mA 5 VDC max.
Weight 250 g max.
To Next Page
