Omron SYSMAC C200HS Installation Guide

Appendix BSpecifications
193
Unit Model number Current
consumption
Contact Output C200H-OC221/OC222/OC223/
OC224/OC225
0.075 A/8 points that
turn ON
simultaneously
C200H-OC222V/OC224V/
OC226
0.09 A/8 points that
turn ON
simultaneously
Transistor Output C200H-OD216/OD217 0.075 A/8 points that
turn ON
simultaneously
ID Sensor C200H-IDS01-V1/IDS21 0.12 A
Unit Model number Current
consumption
No-Voltage Contact
Input
C200H-ID001/ID002 0.06 A each

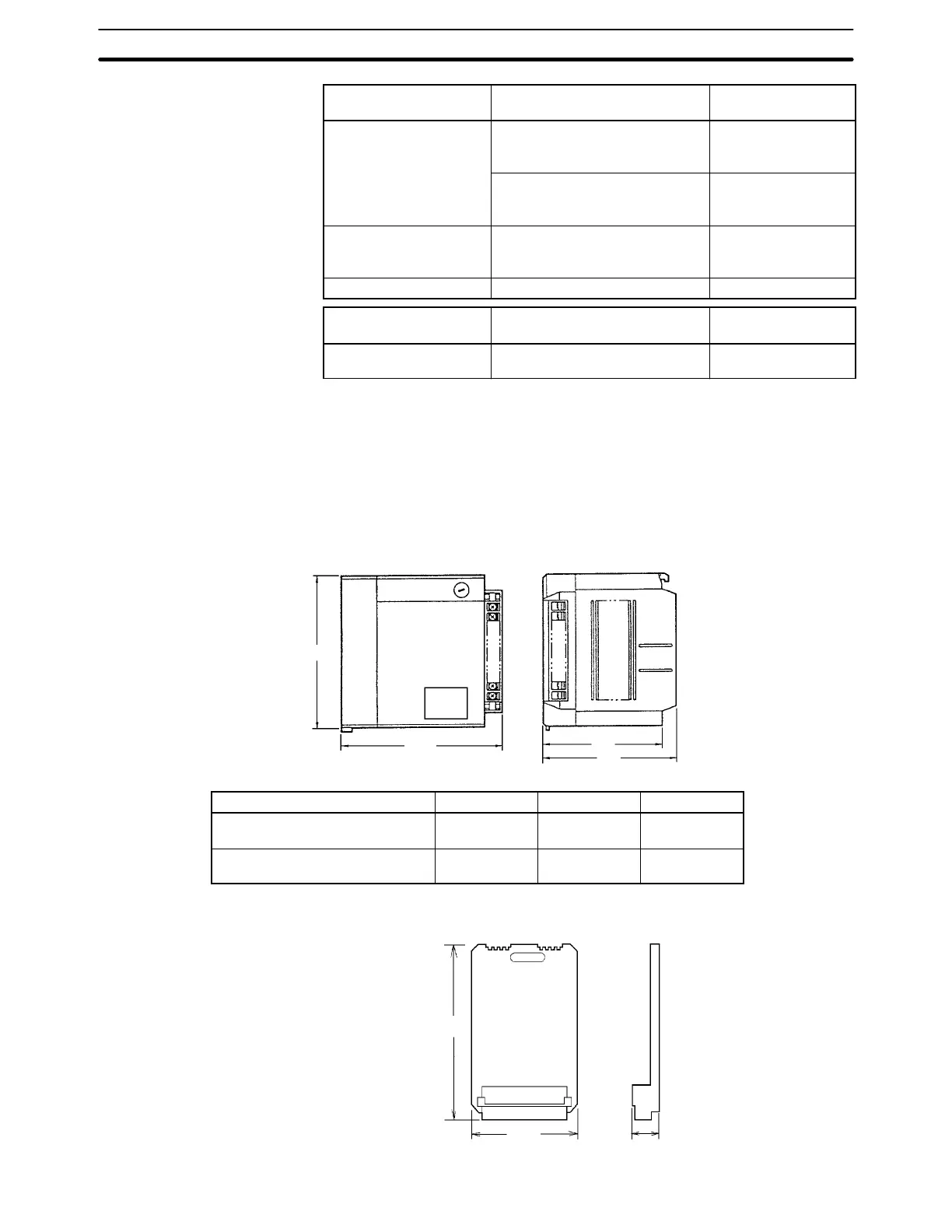

Dimensions
Racks
The dimensions shown below are for both the CPU Rack and Expansion I/O Rack. The C dimension for the Pro-
gramming Console will increase by 30mm when the Programming Console Adapter C200H-BP001 is used, and
will increase by 50 mm when the Programming Console Adapter C200H-BP002 is used.
130
138
A
B
CPU
Model A (mm) B (mm) Weight (kg)
C200HS-CPU01-E/CPU01-EC/
CPU03-E
101 113 1.4
C200HS-CPU21-E/CPU21-EC/
CPU23-E/CPU31-E/CPU33-E
126 138 1.5
Memory Cassette
73.2
44 9.1
Current Drawn from 26-V
Supply
Current Drawn from 24-V
Supply
