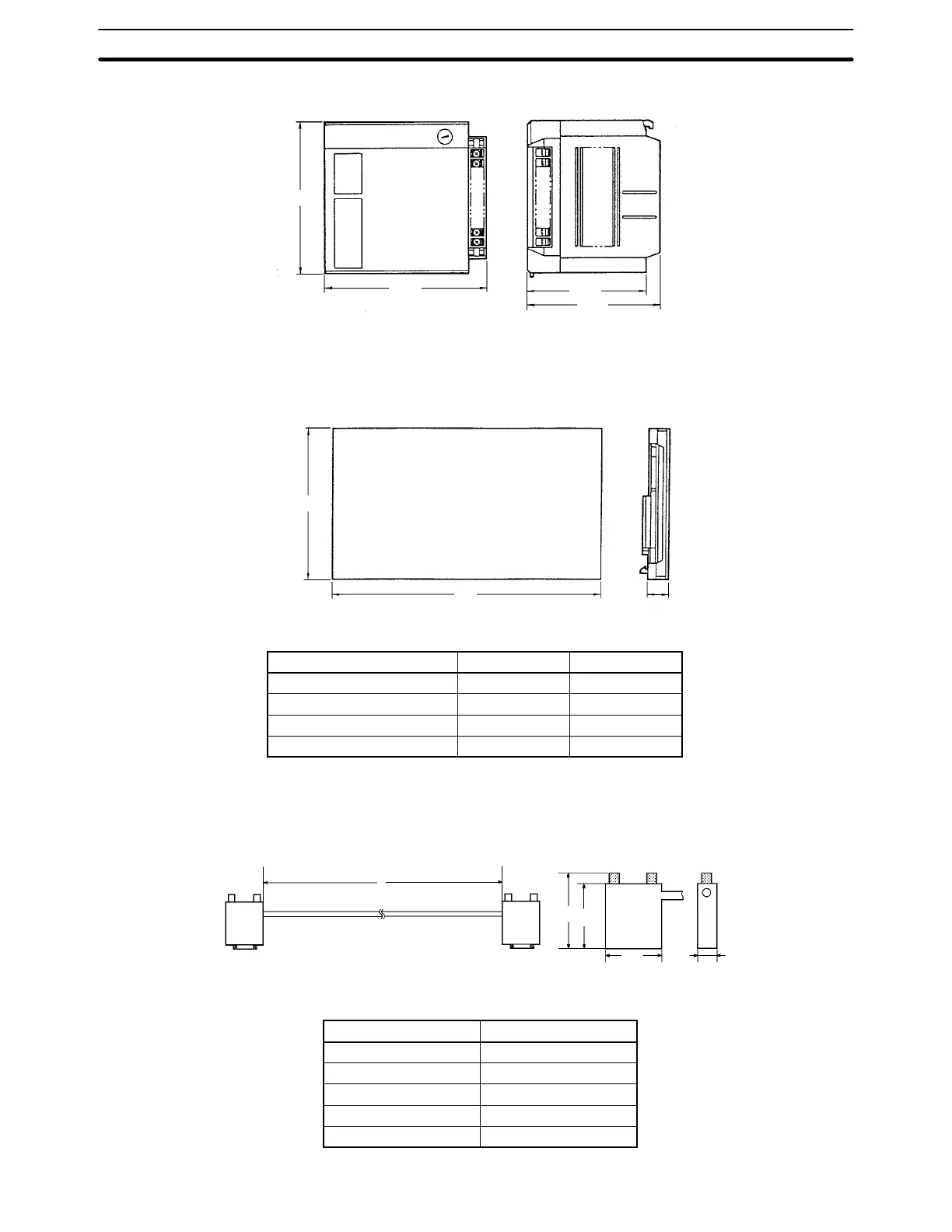

Appendix B
Specifications
194
130
138
101
11
3
C200H-PS221/PS221-C/PS21
1 I/O Power Supply Unit
130
W
17
Backplane
Model
Width (W)
Weight
C200H-BC031-V2
260 mm
0.8 kg max.
C200H-BC051-V2
330 mm
1.0 kg max.
C200H-BC081-V2
435 mm
1.3 kg max.
C200H-BC101-V2
505 mm
1.5 kg max.
I/O Connecting Cables
The dimensions shown below are for I/O Connecting Cables.
L
74
64
49
15
Cable
Length (L)
C200H-CN31
1
30 cm
C200H-CN71
1
70 cm
C200H-CN221
2 m
C200H-CN521
5 m
C200H-CN131
10 m
207
209
Table of Contents
Table of Contents
7
Precautions
11
General Precautions
12
Intended Audience
12
Operating Environment Precautions
12
Safety Precautions
12
Application Precautions
13
Conformance to EC Directives
14
Section 1 Introduction
15
Introduction
15
What Is a Control System
16
The Role of the PC
18
Input Devices
18
Output Devices
18
How Does a PC Work
19
New C200HS Features
22
Improved Memory Capabilities
22
Faster Execution Times
23
Larger Instruction Set
23
Expanded Number of I/O Points
23
Wide Selection of Special I/O Units
23
Improved Interrupt Functions
23
SYSMAC NET Link and SYSMAC LINK Capabilities
24
Built-In RS-232C Connector
24
More Flexible PC Settings
24
Debugging and Maintenance
24
Peripheral Devices
24
Comparisons between C200HS and C200H
25
Compatibility of C200HS and C200H Devices
27
Section 2 System Configuration and Unit Description
29
System Configuration and Unit Description
29
System Configuration
30
CPU Racks
30
Expansion I/O Racks
31
Slave Racks
31
Cpus
32
CPU Components
32
CPU Indicators
33
Power Supply
34
DIP Switch
36
Peripheral Device Connector
36
Operation Modes
37
Memory Cassettes
37
Expansion I/O Racks
38
Power Supply Unit
39
I/O Units
40
Standard I/O Units
41
Group-2 High-Density I/O Units
42
High-Density I/O Units Classified as Special I/O Units
44
Section 3 Installation
47
Installation
47
Installation Environment
48
Mounting Units to the Backplane
49
Installing Racks
53
I/O Connecting Cable
54
Mounting Requirements
55
Installing Memory Cassettes
57
Section 4 Wiring
59
Wiring
59
Power Supply Wiring
60
AC Power Supply
60
DC Power Supply
61
RUN Output Terminals
62
Grounding
62
Backplane Insulation Plate
63
Standard I/O Unit Wiring
64
Input Circuits
67
Output Circuits
68
External Wiring
71
System Design and Safety Considerations
71
Power Supply System and Emergency Stop Circuit
71
Interlock Circuit
72
Programmable Controller Power Interruptions
73
Section 5 Peripheral Devices and System Expansion
75
Peripheral Devices and System Expansion
75
Programming Console
76
Nomenclature
77
Checking Initial C200HS Operation
78
Expanding the System
78
Special I/O Units
81
Required Mounting Conditions
81
Special I/O Units and Functions
81
Ladder Support Software (LSS)
87
SYSMAC Support Software (SSS)
87
Section 6 Troubleshooting
89
Alarm Indicators
90
Programmed Alarms and Error Messages
90
Reading and Clearing Errors and Messages
90
Error Messages
91
CPU Racks and Expansion I/O Racks
95
Input Units
96
Output Units
97
Section 7 Inspection and Maintenance
99
Inspection and Maintenance
99
CPU and Power Supply Fuses
100
Output Unit Fuses
100
Output Unit Relays
101
Batteries
104
A Standard Models
107
B Specifications
117
Glossary
219
Index
223
Revision History
227
