Appendix B
Specifications
197
T
erminal Dimensions
M3.5
8.5
7.3

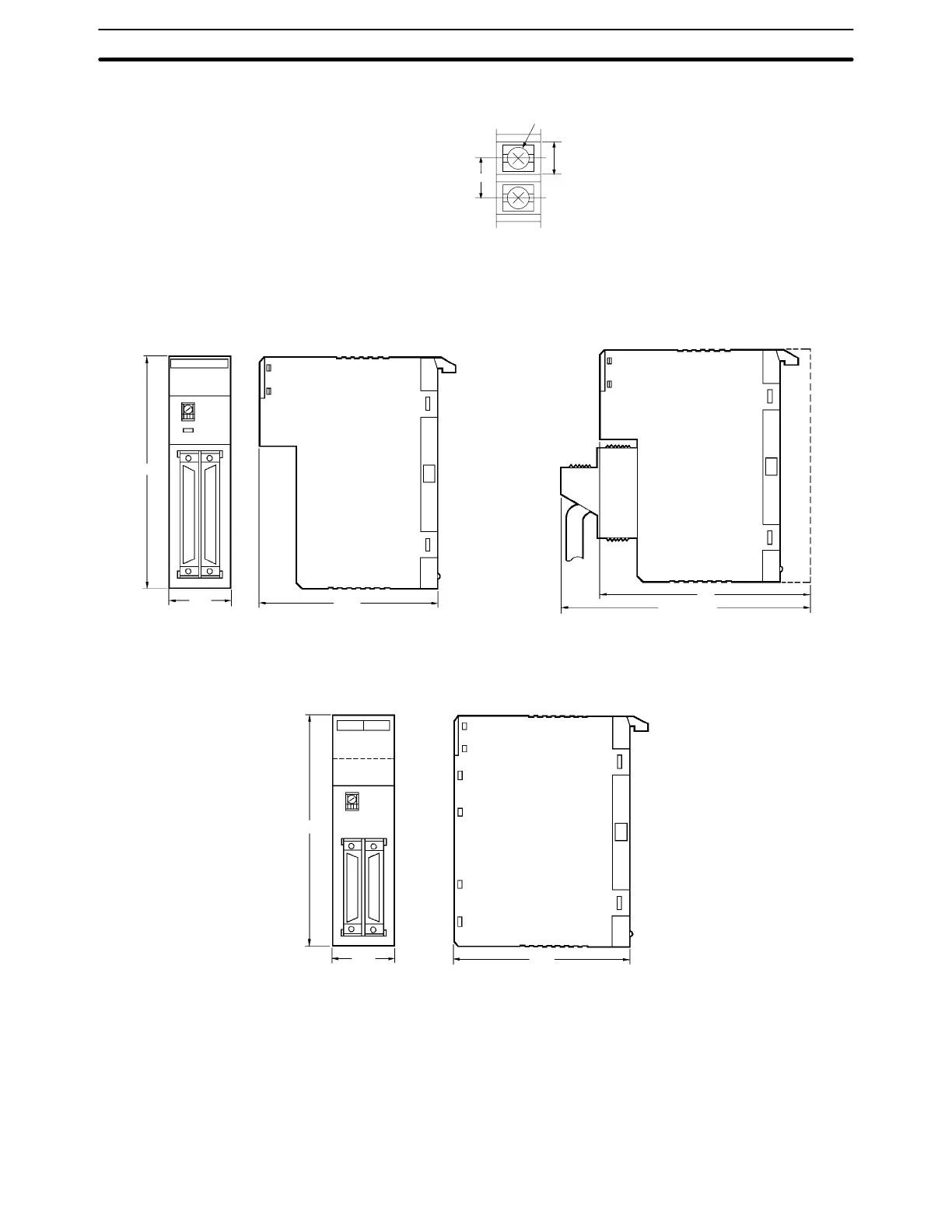

Group-2 High-density I/O Units
The dimensions shown below are for the Group-2 High-density I/O Units.
130
35
101
11
8
Group-2 High-density I/O Units (C and D T
ypes)
Backplane
Dimensions with Unit Mounted
Approx. 143
High-density I/O Units (Special I/O Units)
The dimensions shown below are for the High-density I/O Units classified as Special I/O Units.
130
35
101
210
212
