Omron SYSMAC C200HS Installation Guide

Appendix BSpecifications
201

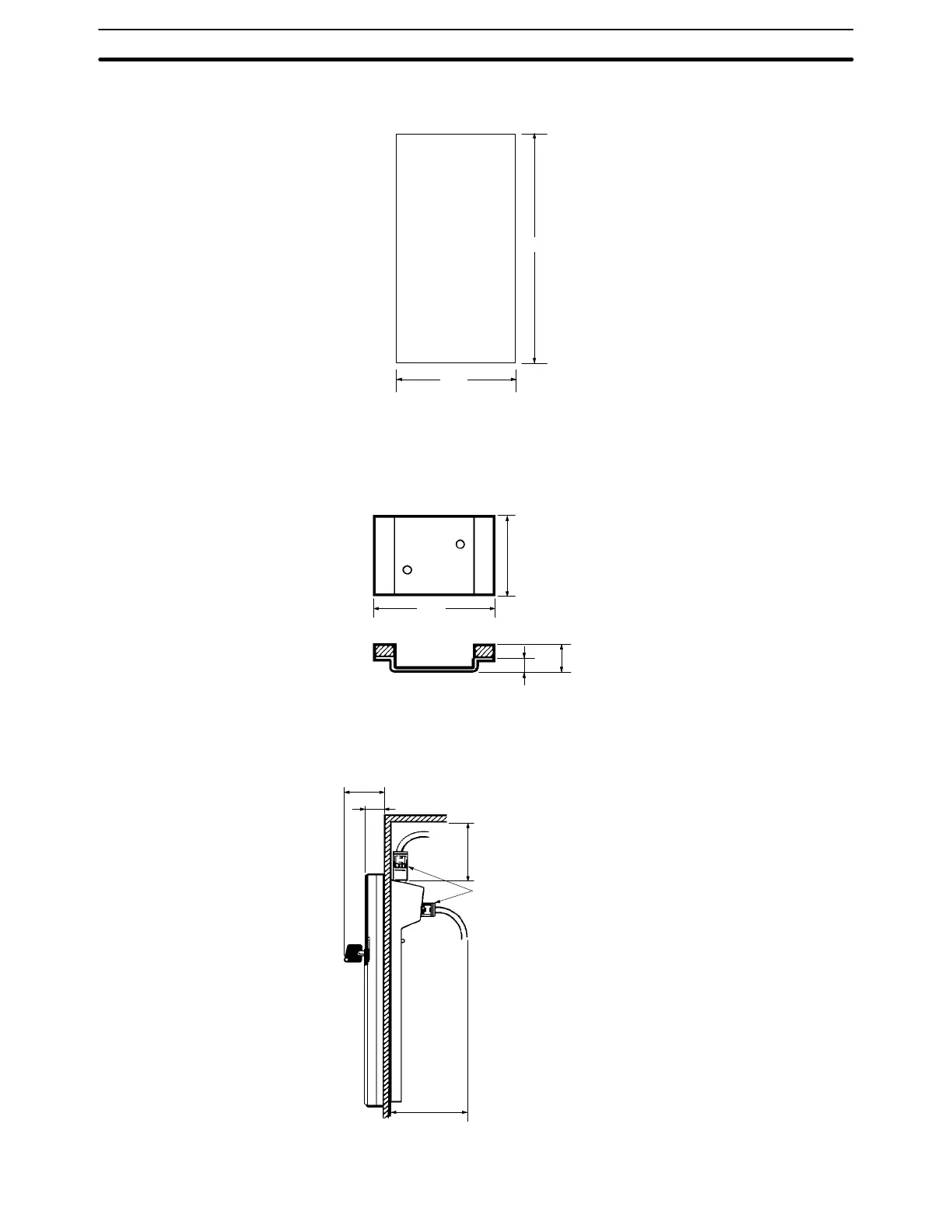

The following is the standard panel cut dimensions for the Programming Console (conforming to DIN 43700).
92
+0.8
0
186
+1.1
0
Use the C200H-ATT01 Mounting Bracket (sold separately) to mount the C200H-PRO27 Programming Console to
panels.
75.5
116
9.1
14.1
Take the space required for the cable into consideration when mounting the Programming Console to panels.
15
37
Use either one of the
connectors.
Approximately 80 mm is
required.
Approximately 70 mm is
required.

Omron SYSMAC C200HS Specifications

General

Brand	Omron
Model	SYSMAC C200HS
Category	Controller
Language	English
