179
Simple Example of Use Section 4-1

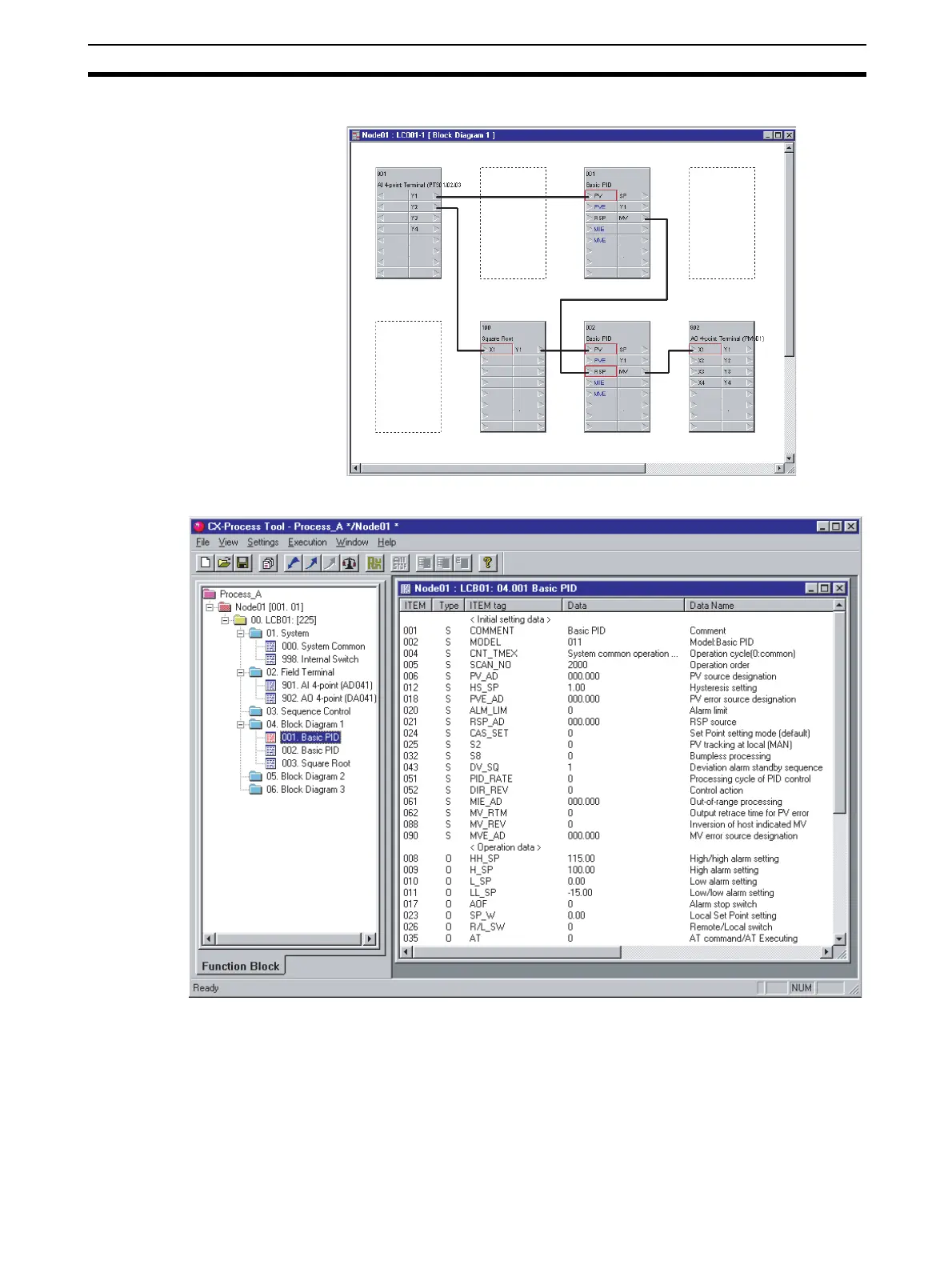

4. Wire in the software the analog signals between blocks.
5. Set the ITEMs in each function block.
Set function block initial setting parameters (refer to the item “(S): Initial
setting data” describing how to read/write in the Function Block Reference
Manual) such as direct/reverse action and Set Point setting mode (Re-
mote/Local) on CX-Process Tool.
Operation-related parameters (refer to the item “(O): Operation Data” de-
scribing how to read/write in the Function Block Reference Manual) such
as PID constants may be set either on CX-Process Tool or using SCADA
software.
To Next Page
