Slave Terminal

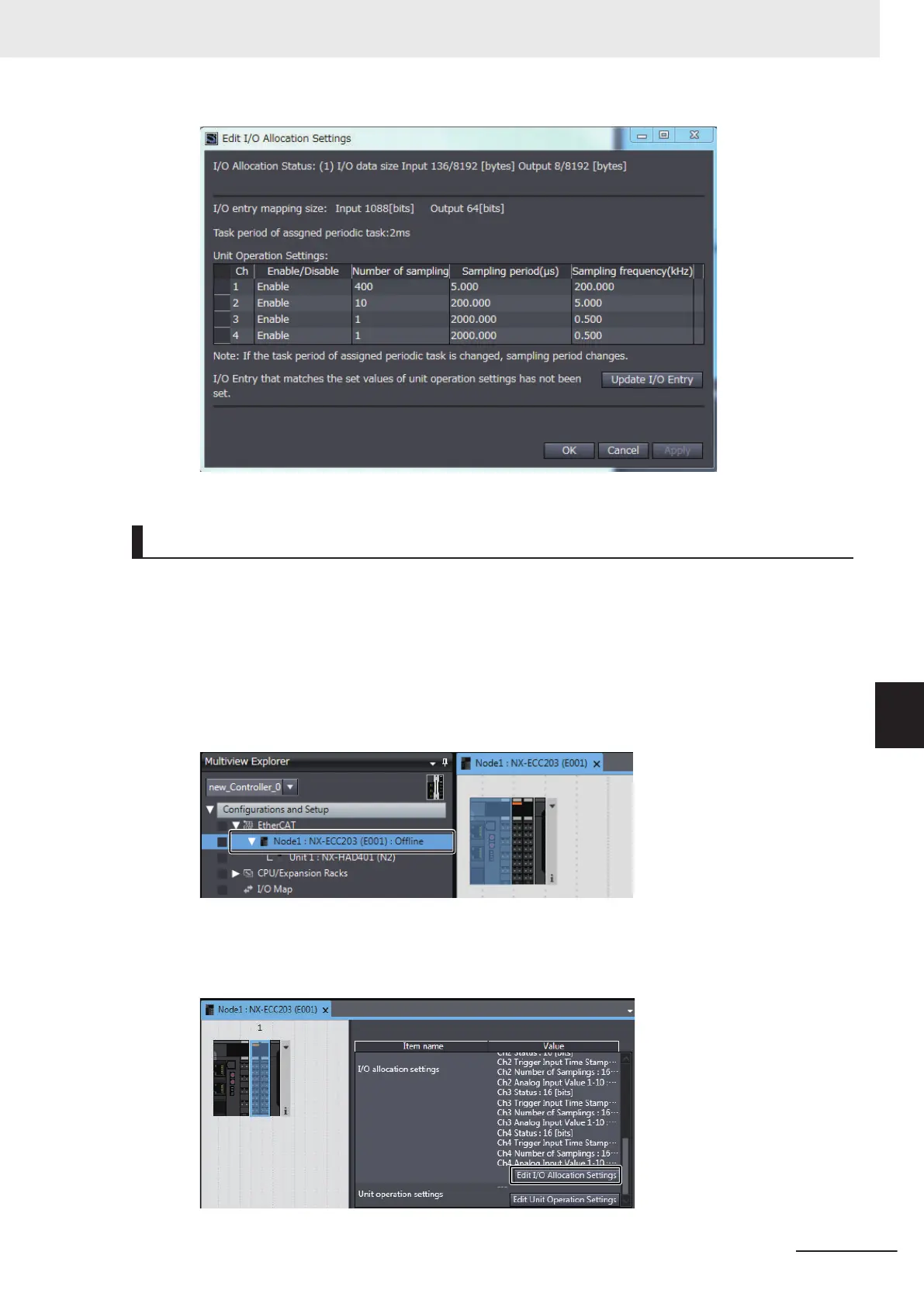

This section describes how to display the Edit I/O Allocation Settings Window for a High-speed Analog
Input Unit connected to a Communications Coupler Unit.
1 In the Multiview Explorer, double-click the Communications Coupler Unit to which the target
High-speed Analog Input Unit is connected to open the Edit Slave Terminal Configuration Tab
Page.
The following tab page is displayed.
2 Select the High-speed Analog Input Unit on the Edit Slave Terminal Configuration Tab Page. In
the Unit Settings Pane, click the Edit I/O Allocation Settings Button.
7 I/O Data and List of Settings
7 - 15
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
7-2 Setting I/O Allocations with the Sysmac Studio
7
7-2-1 Displaying the Edit I/O Allocation Settings Window
