7-2
Setting I/O Allocations with the Sys-
mac Studio
Configure the I/O allocation settings of the High-speed Analog Input Unit from the Sysmac Studio.
This section describes how to display the Edit I/O Allocation Settings Window, information to be dis-
played, and how to configure the I/O allocation settings.
7-2-1
Displaying the Edit I/O Allocation Settings Window
Connected to a CPU Unit
This section describes how to display the Edit I/O Allocation Settings Window for a High-speed Analog
Input Unit connected to a CPU Unit.

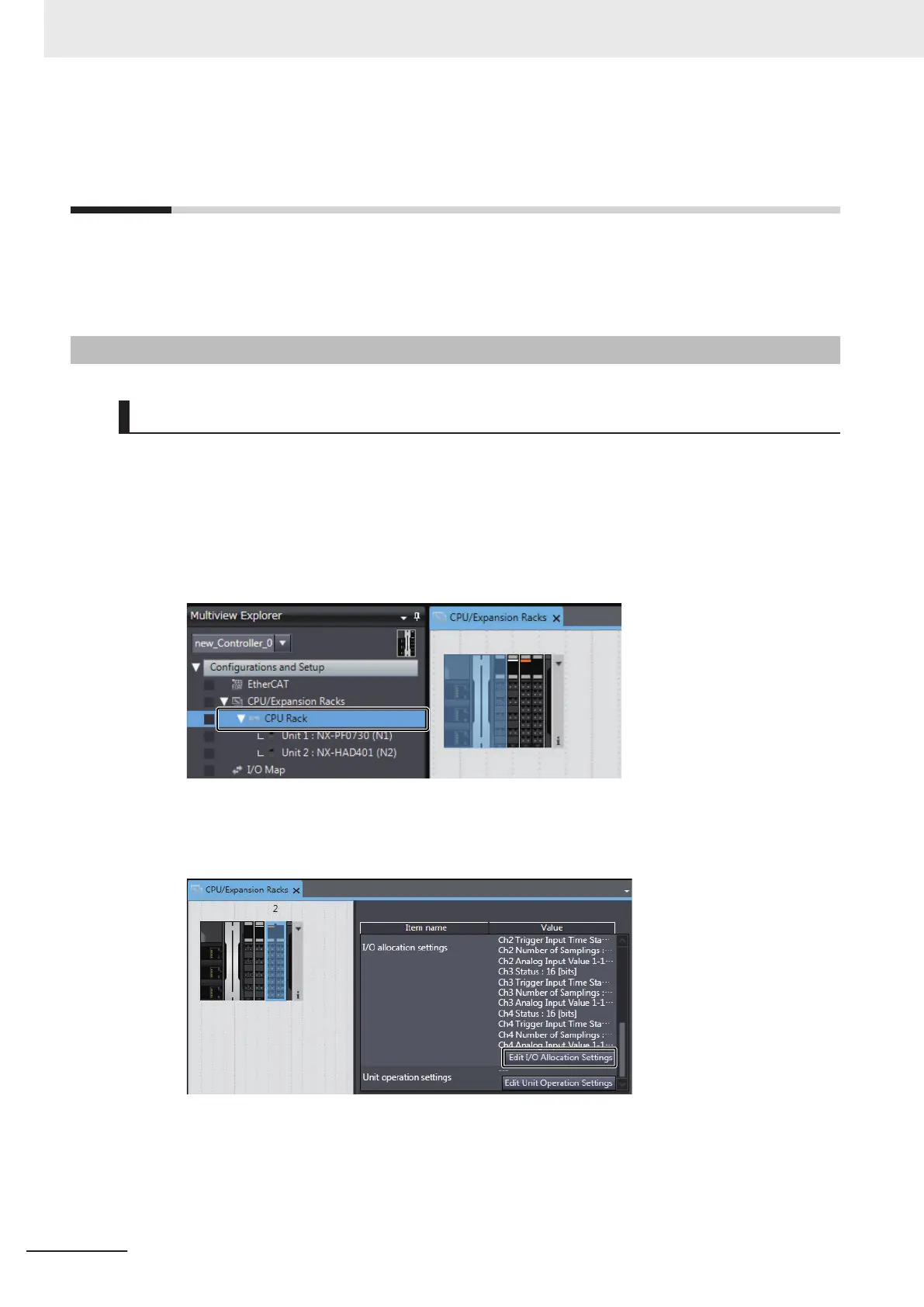

1 In the Multiview Explorer, double-click the CPU Rack to which the target High-speed Analog
Input Unit is connected to open the CPU and Expansion Racks Tab Page.
The following tab page is displayed.
2 Select the High-speed Analog Input Unit on the CPU and Expansion Racks Tab Page. In the
Unit Settings Pane, click the Edit I/O Allocation Settings Button.
The Edit I/O Allocation Settings Window is displayed.
7 I/O Data and List of Settings
7 - 14
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
