3-1

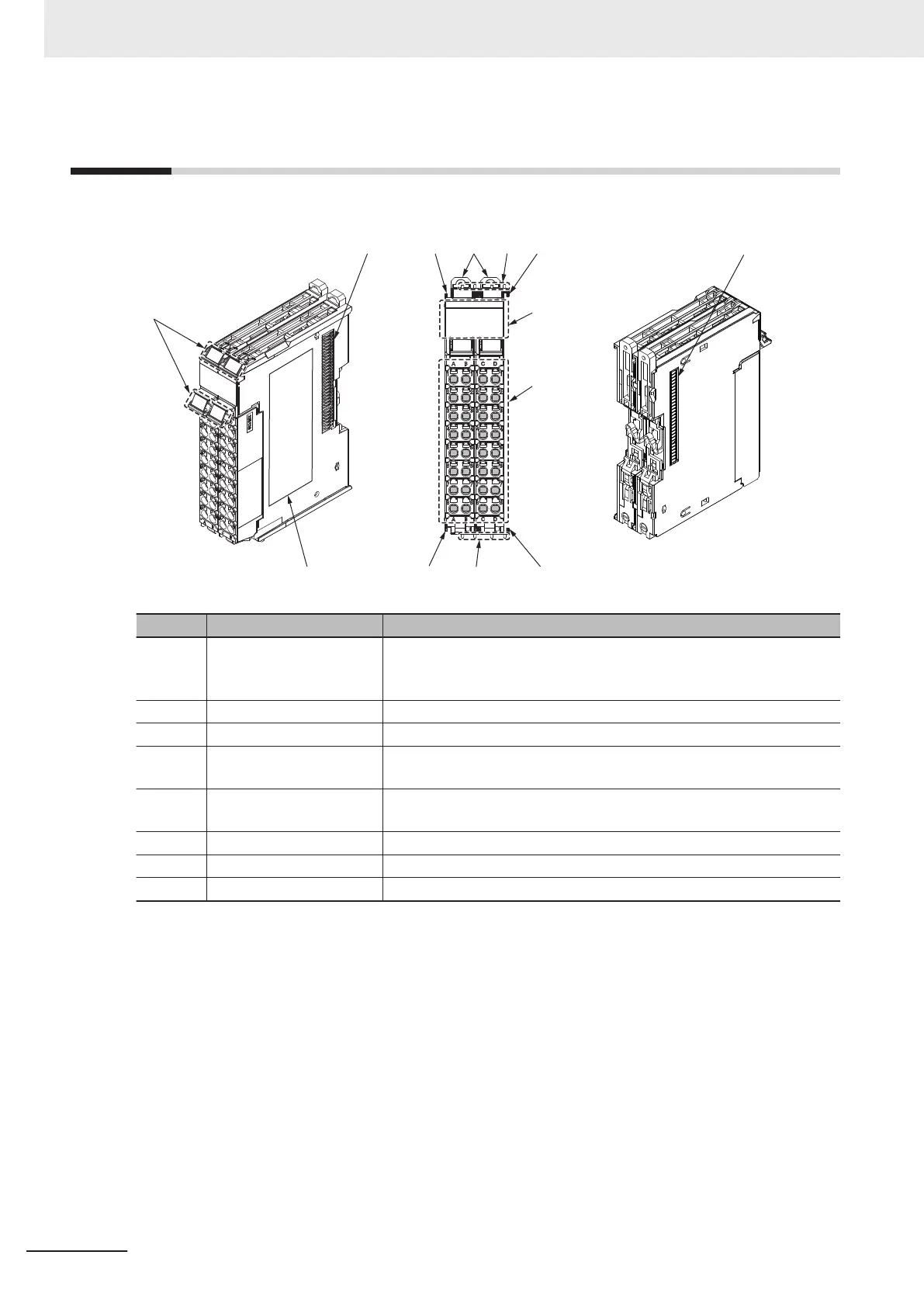

Part Names
This section describes the names and functions of the parts of the High-speed Analog Input Units.
(B)
(A)
(C)
(C)
(E)
(D)
(B)
(H)
(G)
(F)
(C)(E)
(C)
Letter Name Description
(A) Marker attachment loca-
tions
The locations where markers are attached. The markers made by OM-
RON are installed for the factory setting. Commercially available mark-
ers can also be installed.
(B) NX bus connector This connector is used to connect each Unit.
(C) Unit hookup guides These guides are used to connect two Units.
(D) DIN Track mounting
hooks
These hooks are used to mount the NX Unit to a DIN Track.
(E) Protrusions for removing
the Unit
The protrusions to hold when removing the Unit.
(F) Indicators The indicators show the current operating status of the Unit.
(G) Terminal block The terminal block is used to connect external devices.
(H) Unit specifications The specifications of the Unit are given.
Refer to Installation in the hardware user’s manual for the connected CPU Unit or the user
’s manual
for the Communications Coupler Unit for details on attaching markers.
Refer to 3-2 Indicators on page 3 - 3 for details on the indicators.
Refer to 3-3 Terminal Blocks on page 3 - 6 for details on the terminal blocks.
3 Part Names and Functions
3 - 2
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
