Omron SYSMAC NX series User Manual

A-10
Displaying the User Calibration Win-
dow
A-10-1
Connection to the CPU Unit
This section describes how to display the Sysmac Studio User Calibration Window for a High-speed
Analog Input Unit connected to the CPU Unit.

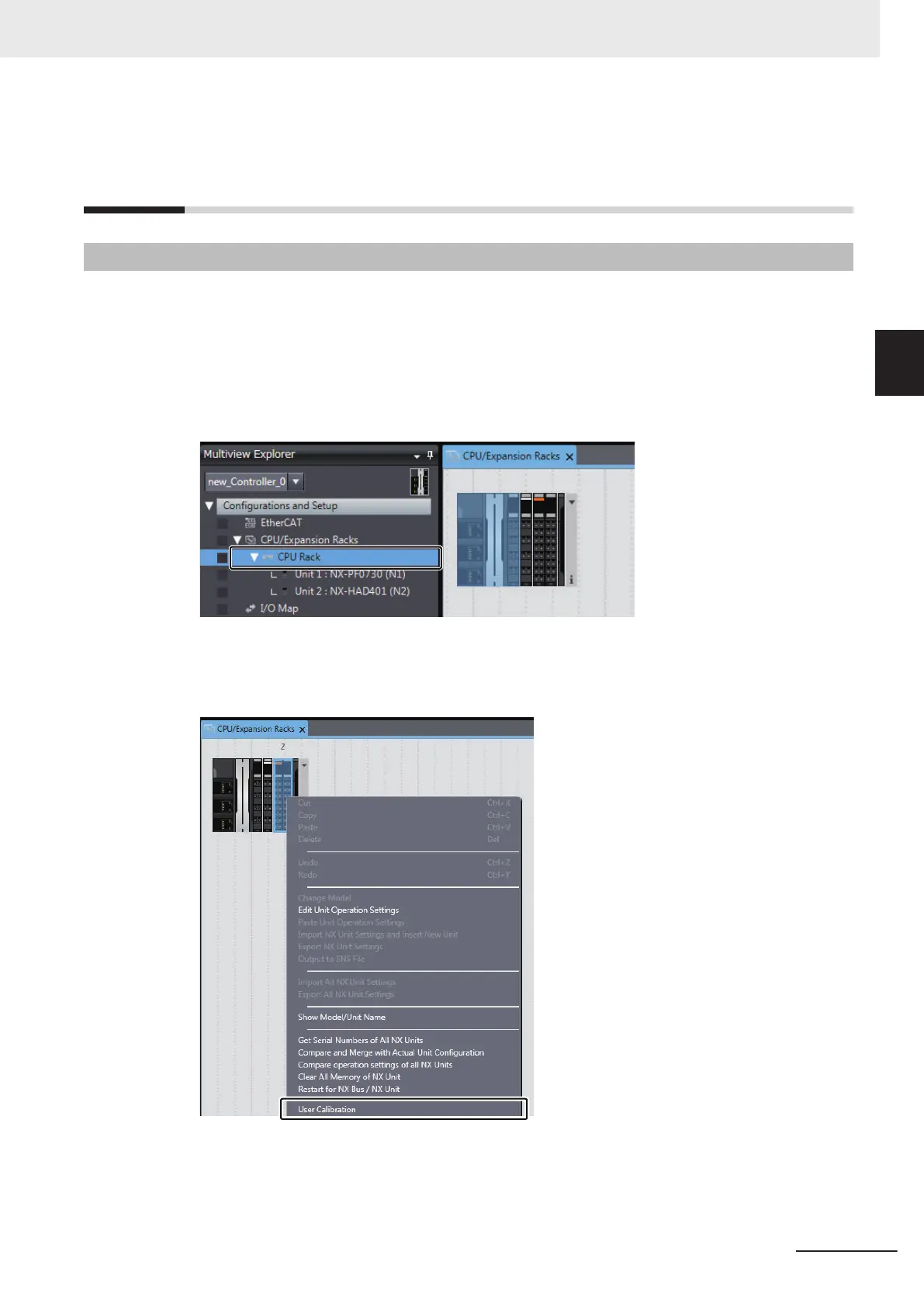

1 In the Multiview Explorer, double-click the CPU Rack to which the target High-speed Analog
Input Unit is connected to open the CPU and Expansion Racks Tab Page.
The following tab page is displayed.
2 Go online, right-click the High-speed Analog Input Unit on the CPU and Expansion Racks Tab
Page, and select User Calibration from the menu.
The following window is displayed.
Appendices
A - 59
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
A-10 Displaying the User Calibration Win-
dow
A
A-10-1 Connection to the CPU Unit
