The correctable range for each input range is as follows.
Input range
Correctable range
0% 100%
-10 to 10 V -10.2 to -9.8 V 9.8 to 10.2 V
-5 to 5 V -5.1 to -4.9 V 4.9 to 5.1 V
0 to 10 V -0.2 to 0.2 V 9.8 to 10.2 V
0 to 5 V -0.1 to 0.1 V 4.9 to 5.1 V
1 to 5 V 0.92 to 1.08 V 4.92 to 5.08 V
0 to 20 mA -0.4 to 0.4 mA 19.6 to 20.4 mA
4 to 20 mA 3.68 to 4.32 mA 19.68 to 20.32 mA
8-8-3
Setting Method
This section describes how to configure settings with the Sysmac Studio.
It also describes the procedure to reset the calibration value to the default, along with the calibration
method.
Calibration Method

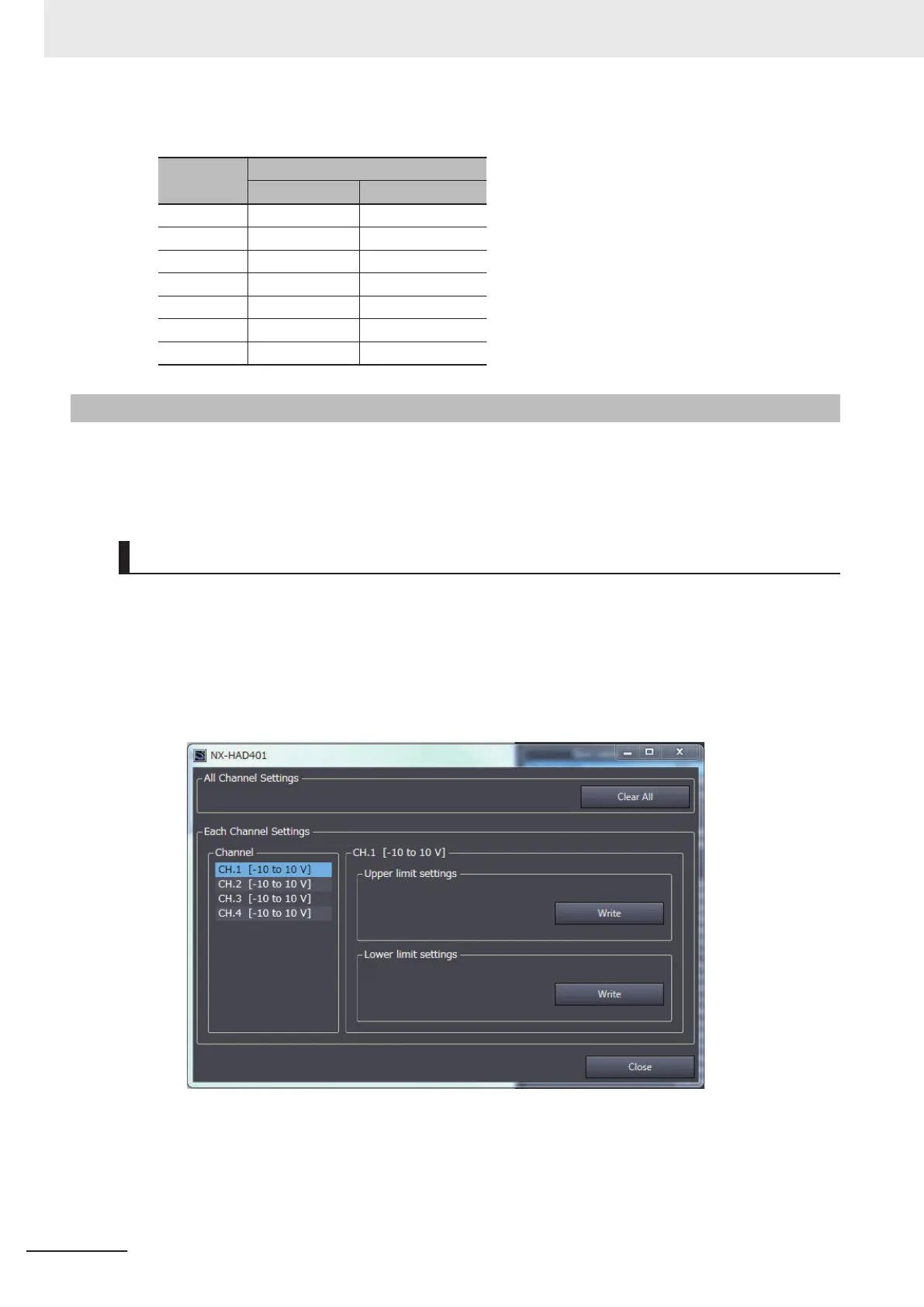

1 Display the User Calibration Window.
For the display methods, refer to A-10 Displaying the User Calibration Window on page
A - 59.
2 Select the channel you want to calibrate from Channel
.
3 Enter the voltage or current corresponding to upper limit (100%) to the Unit terminal, then click
the Write Button under
Upper limit settings.
8 Functions
8 - 34
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
