Slave Terminal

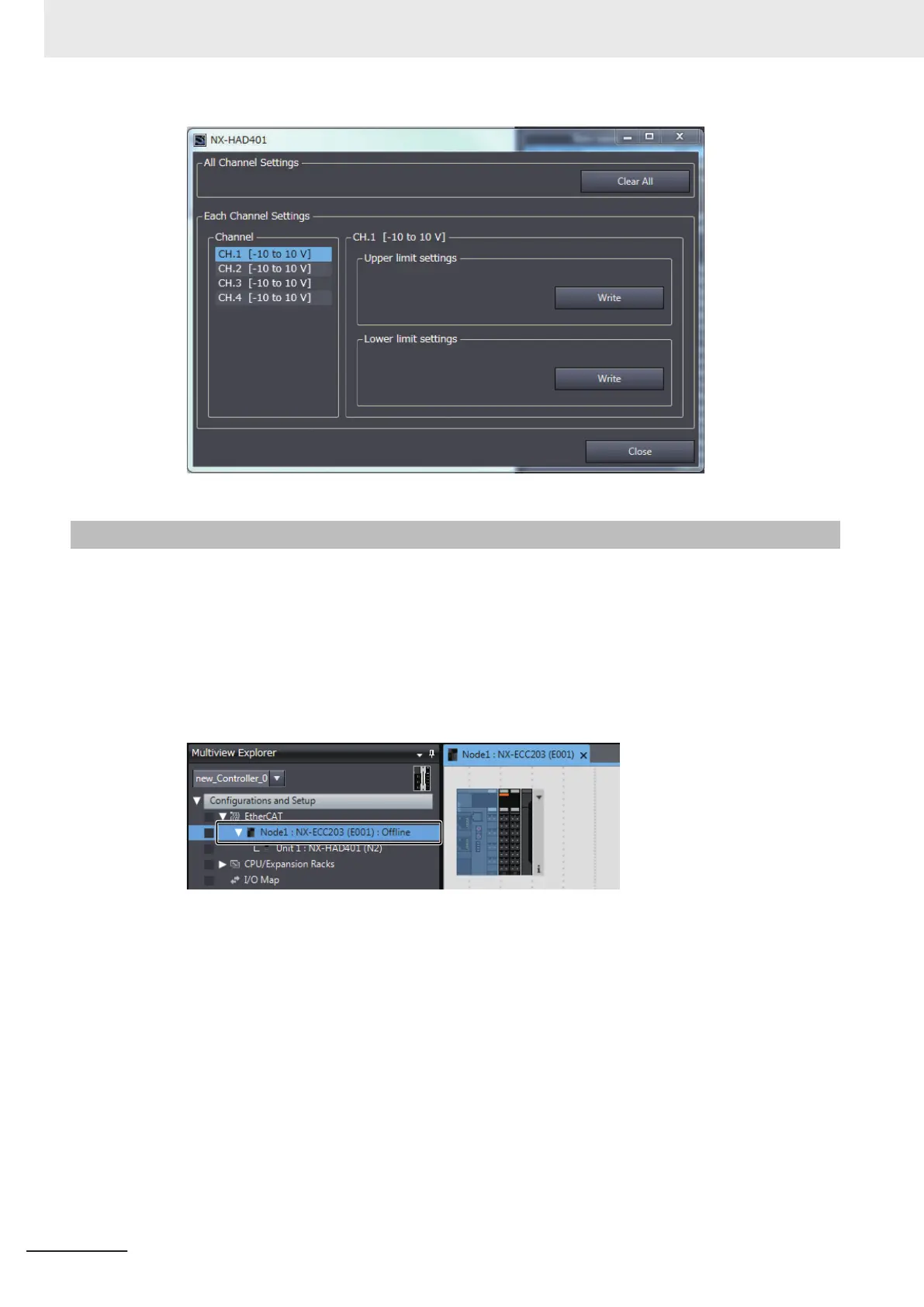

This section describes how to display the Support Software User Calibration Window for a High-speed
Analog Input Unit connected to the Communications Coupler Unit.
1 In the Multiview Explorer, double-click the Communications Coupler Unit to which the target
High-speed Analog Input Unit is connected to open the Edit Slave T
erminal Configuration Tab
Page.
The following tab page is displayed.
2 Go online, right-click the High-speed Analog Input Unit on the Edit Slave Terminal Configura-
tion Tab Page, and select User Calibration from the menu.
Appendices
A - 60
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
