Displaying the Edit Unit Operation
Settings Tab Page
A-8-1
Connection to the CPU Unit

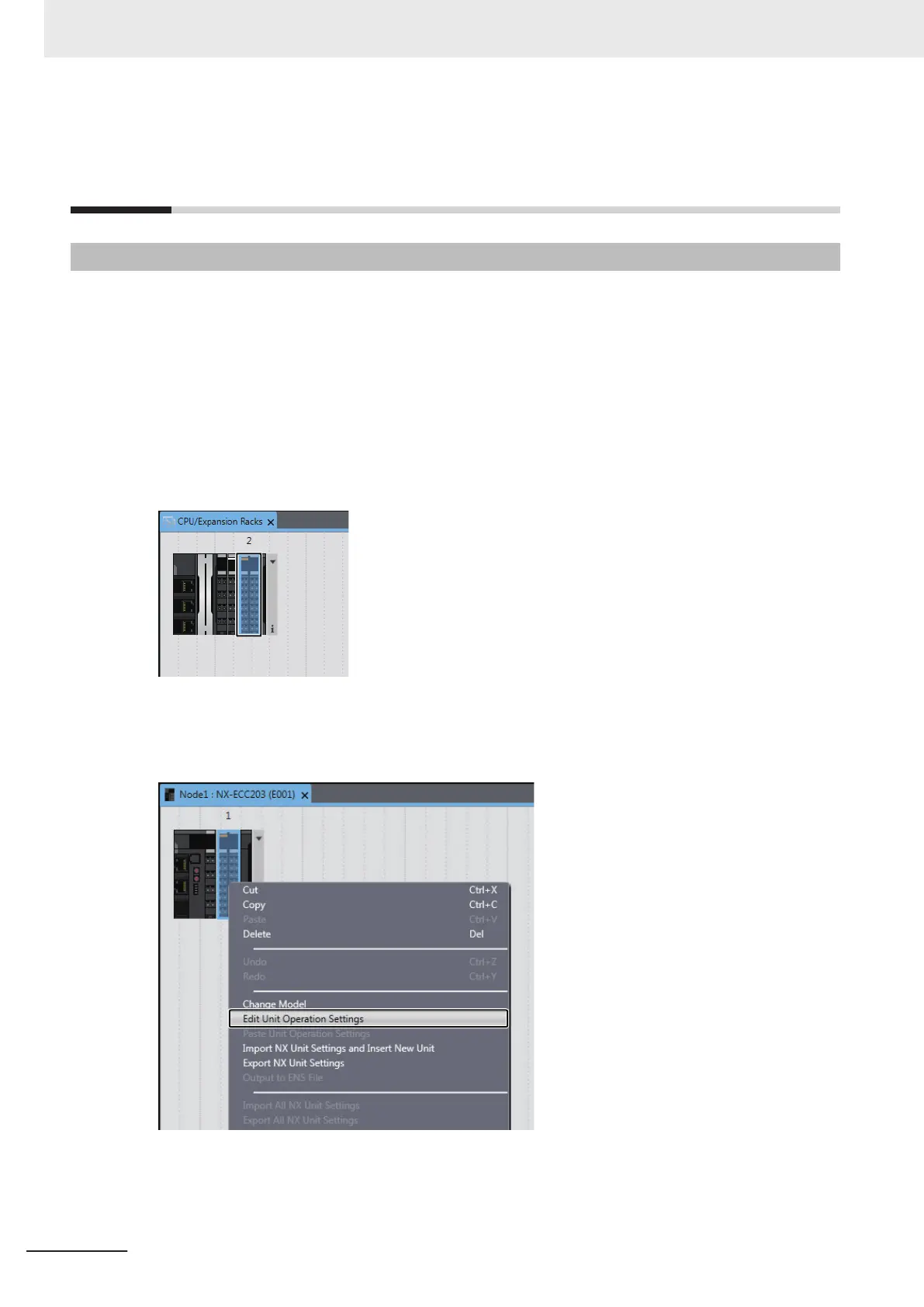

This section describes how to display the Edit Unit Operation Settings Tab Page when you edit Unit
operation settings on the Sysmac Studio for NX Units connected to the CPU Unit.
You can use the methods described below to display the Edit Unit Operation Settings Tab Page via the
CPU and Expansion Racks Tab Page on the Sysmac Studio.
Refer to the Sysmac Studio Version 1 Operation Manual (Cat. No. W504) for the method of displaying
the CPU and Expansion Racks Tab Page.

Method 1
Double-click the NX Unit to set.

Method 2
Right-click the NX Unit and select Edit Unit Operation Settings from the menu.

Method 3
Select the NX Unit and click the Edit Unit Operation Settings Button.
