Secure wires within the range of 30 mm from the screwless clamping terminal block.
Removing Wires
Use the following procedure to remove the wires from the terminal block.
The removal method is the same for ferrules, twisted wires, and solid wires.
If wires are secured firmly to the terminal block, release them first.

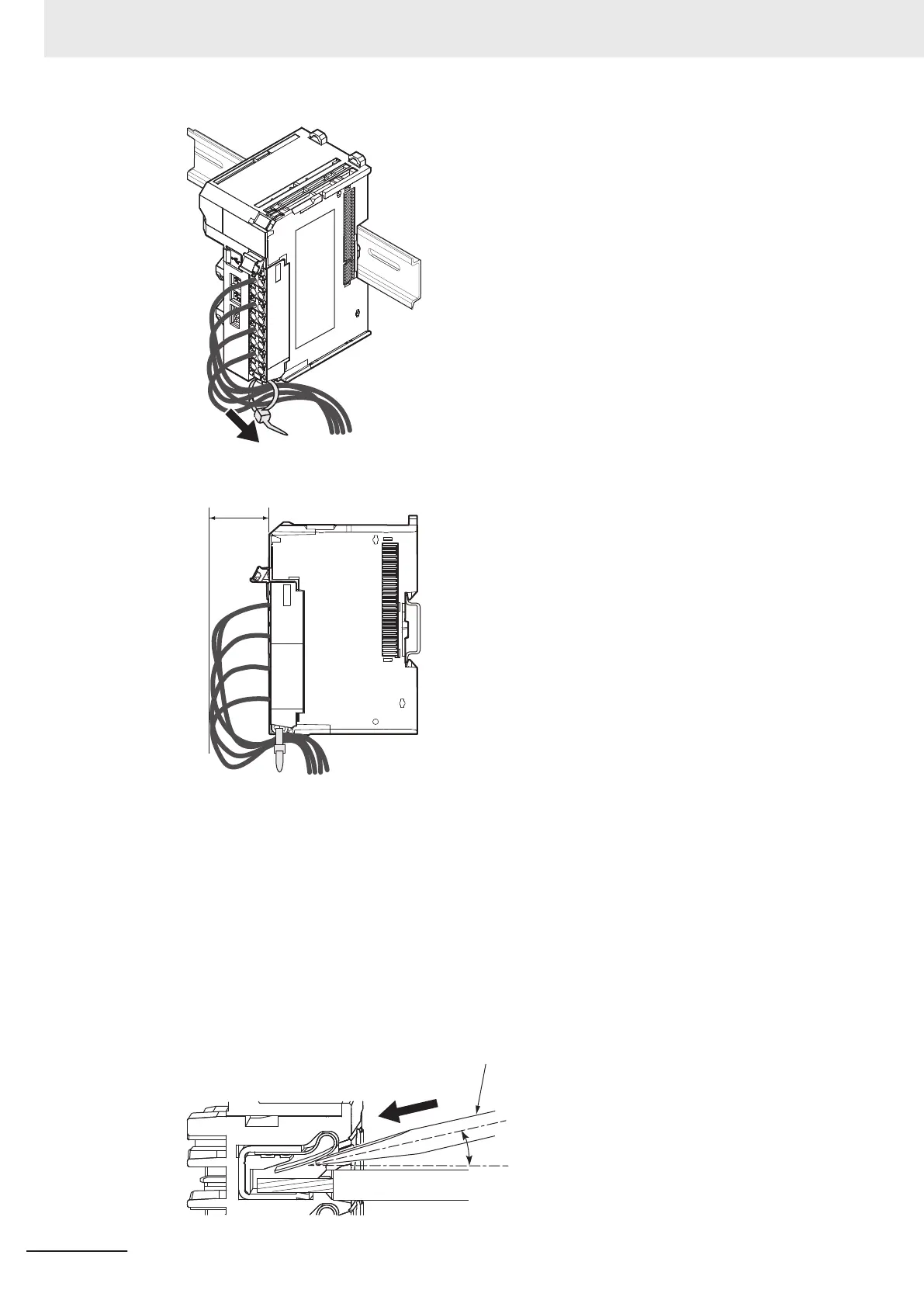

1 Press the flat-blade screwdriver diagonally into the release hole.
The optimal angle for insertion is between 10° to 15°. If the screwdriver is inserted correctly
,
you should feel resistance from the spring inside the release hole.
1
10
°
to 15
°
Flat-blade screwdriver
4 Installation and Wiring
4 - 14
NX-series Analog I/O Units User’s Manual for High-speed Analog Input Units (W592)
