Omron V680S Series User Manual

Section 8
Data Characteristics

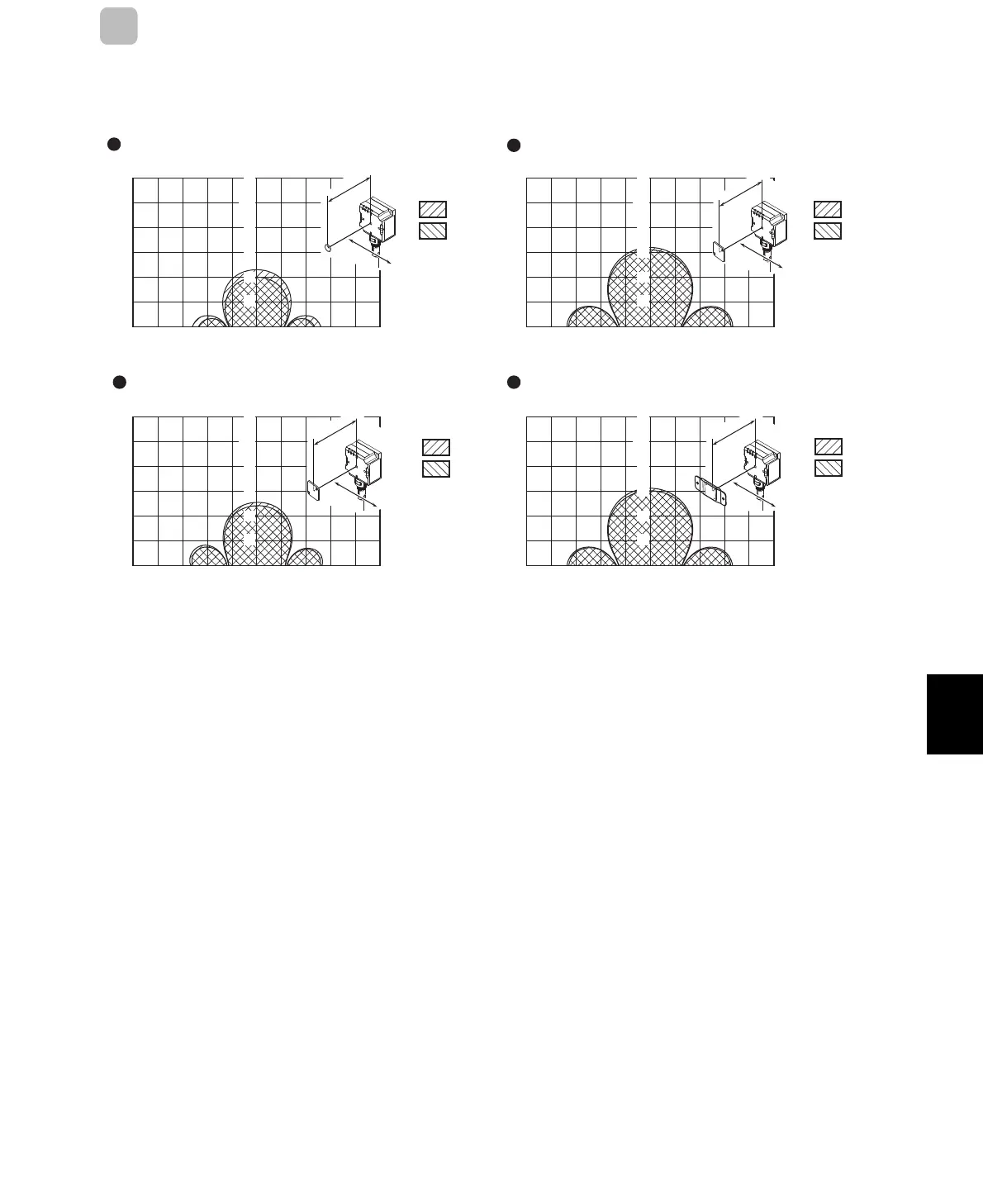

RF Tag Communications Range (for Reference Only)
 V680S-HMD63-EIP
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80 X
Y
X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80 X
Y
X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80 X
Y
X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80 X
Y
X
(Unit: mm)
V680S-HMD63-EIP and V680-D1KP66T-SP
(Back Surface: Metal)
V680S-HMD63-EIP and V680-D1KP66T
(Back Surface: Metal)
V680S-HMD63-EIP and V680-D1KP54MT
(Back Surface: Metal)
V680S-HMD63-EIP and V680-D1KP66MT
(Back Surface: Metal) (Back Surface: Metal)
Read
Write
Read
Write
Read
Write
Read
Write
