Section 8 Data Characteristics
(Unit: mm)
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80 X
Y
X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80 X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80 X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80 X
Y
X
Y
X
Y
X

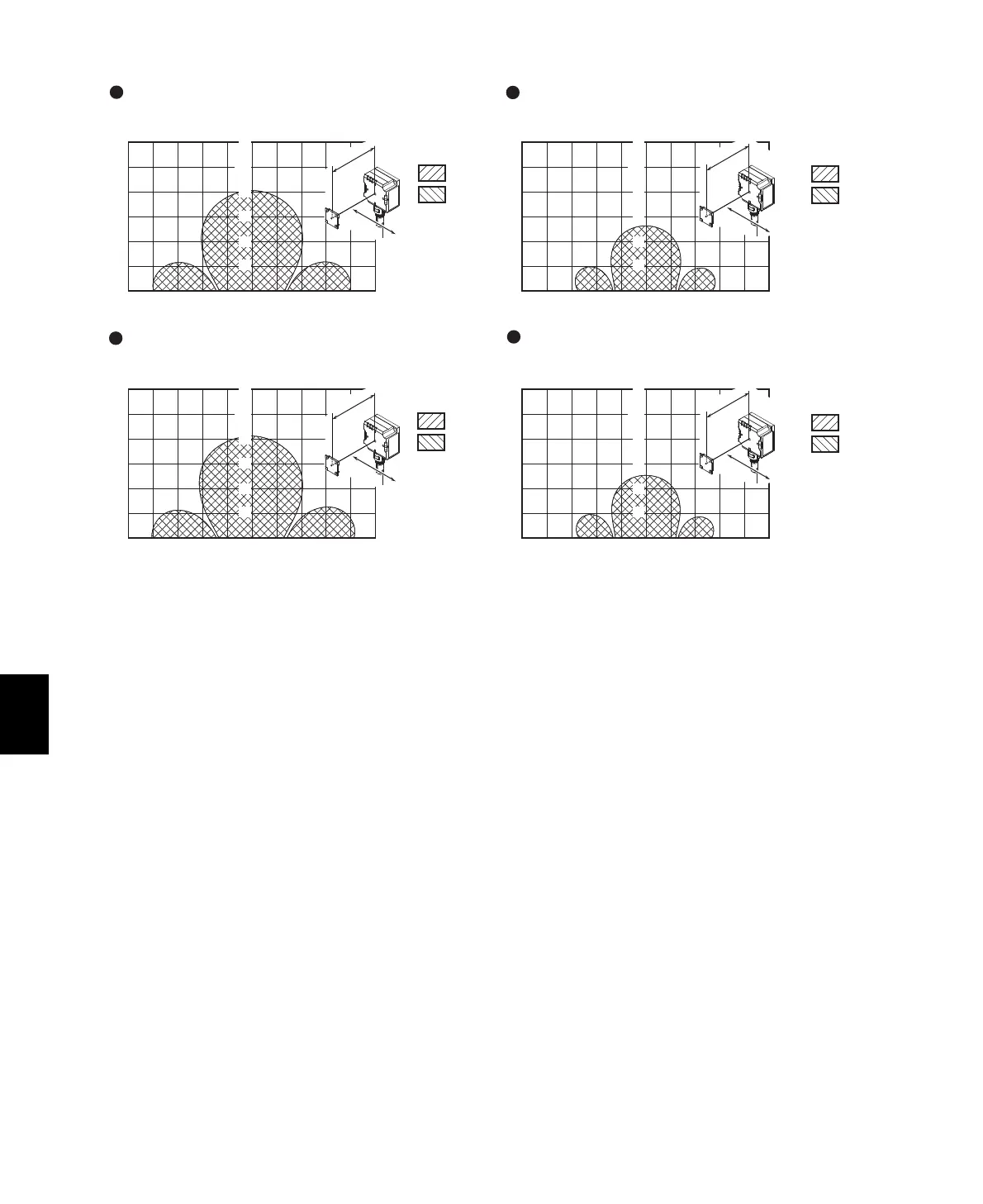

V680S-HMD63-EIP and V680S-D2KF67M
V680S-HMD63-EIP and V680S-D2KF67
(Back Surface: Metal)
(Back Surface: Metal)
V680S-HMD63-EIP and V680S-D8KF67MV680S-HMD63-EIP and V680S-D8KF67
(Back Surface: Metal) (Back Surface: Metal) (Back Surface: Metal)
Read
Write
Read
Write
Read
Write
Read
Write
