Omron V680S Series User Manual

Section 8
RF Tag Installation Precautions
 Influence of Inclination
Install the Reader/Writer and RF Tags so that the Reader/Writer and RF Tags are as parallel to each
other as possible.
Communications will be possible even if the Reader/Writer and RF Tags are not parallel to each other;
however, the communications range is affected by the inclination between them as shown in the
following graphs.

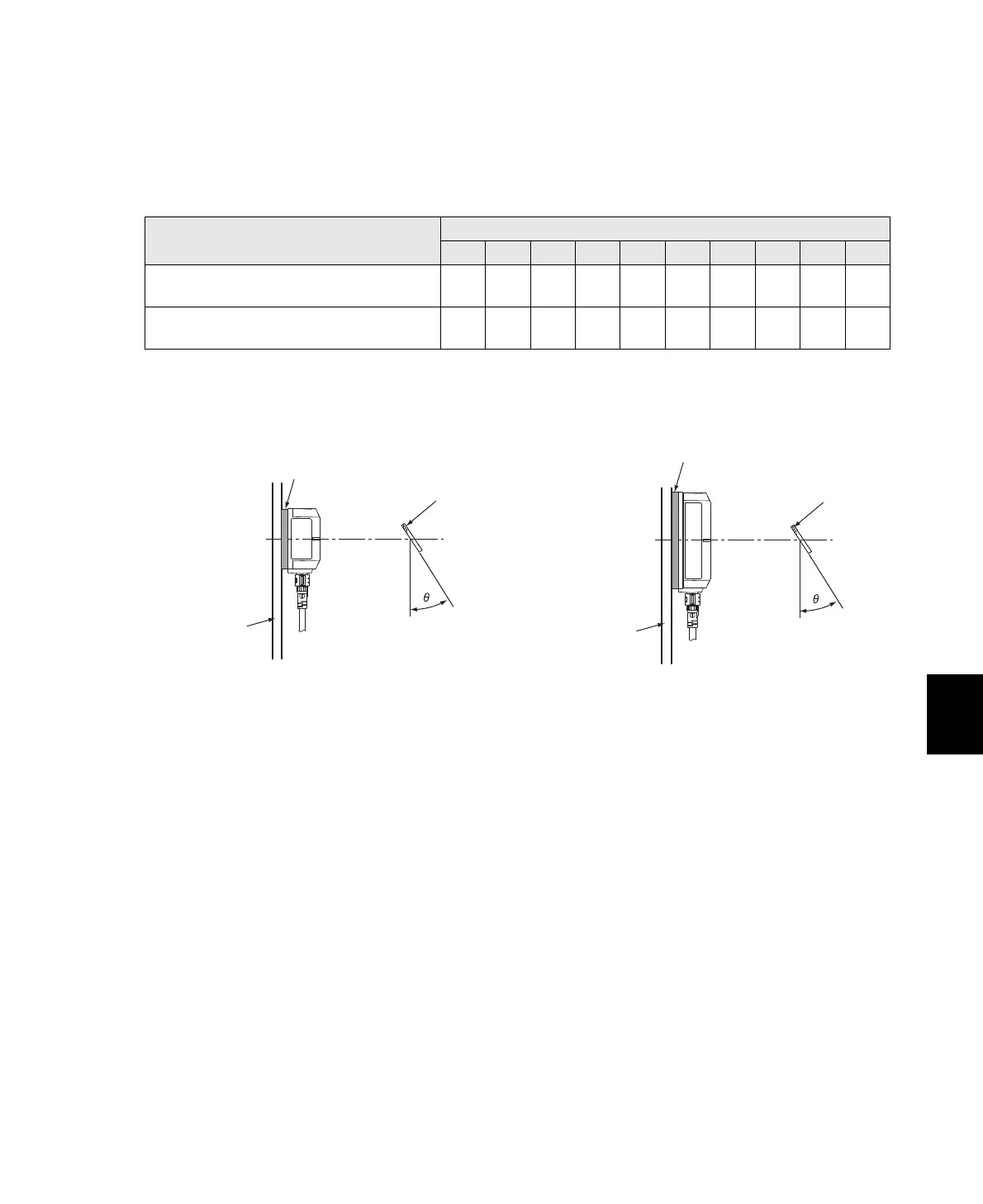

 Rates of Change in Communications Range for Inclination of V680-D8KF67
 Measurement Conditions
RF Tag inclination ()
0 10 20 30 40 50 60 70 80 90
V680S-HMD64-EIP and V680-D8KF67
0% 0% -1% -2% -3% -7% -13% -21% -34% -59%
V680S-HMD66-EIP and V680-D8KF67
0% -1% -3% -6% -10% -15% -24% -34% -53% ---%
• V680S-HMD64-EIP and V680-D8KF67 • V680S-HMD66-EIP and V680-D8KF67
Non-metallic material
Reader/Writer
RF Tag
Metallic material
Non-metallic material
Reader/Writer
RF Tag
Metallic material
