Omron V680S Series User Manual

Section 8
RF Tag Installation Precautions
 Influence of Inclination
Install the Reader/Writer and RF Tags so that the Reader/Writer and RF Tags are as parallel to each
other as possible.
Communications will be possible even if the Reader/Writer and RF Tags are not parallel to each other;
however, the communications range is affected by the inclination between them as shown in the
following graphs.

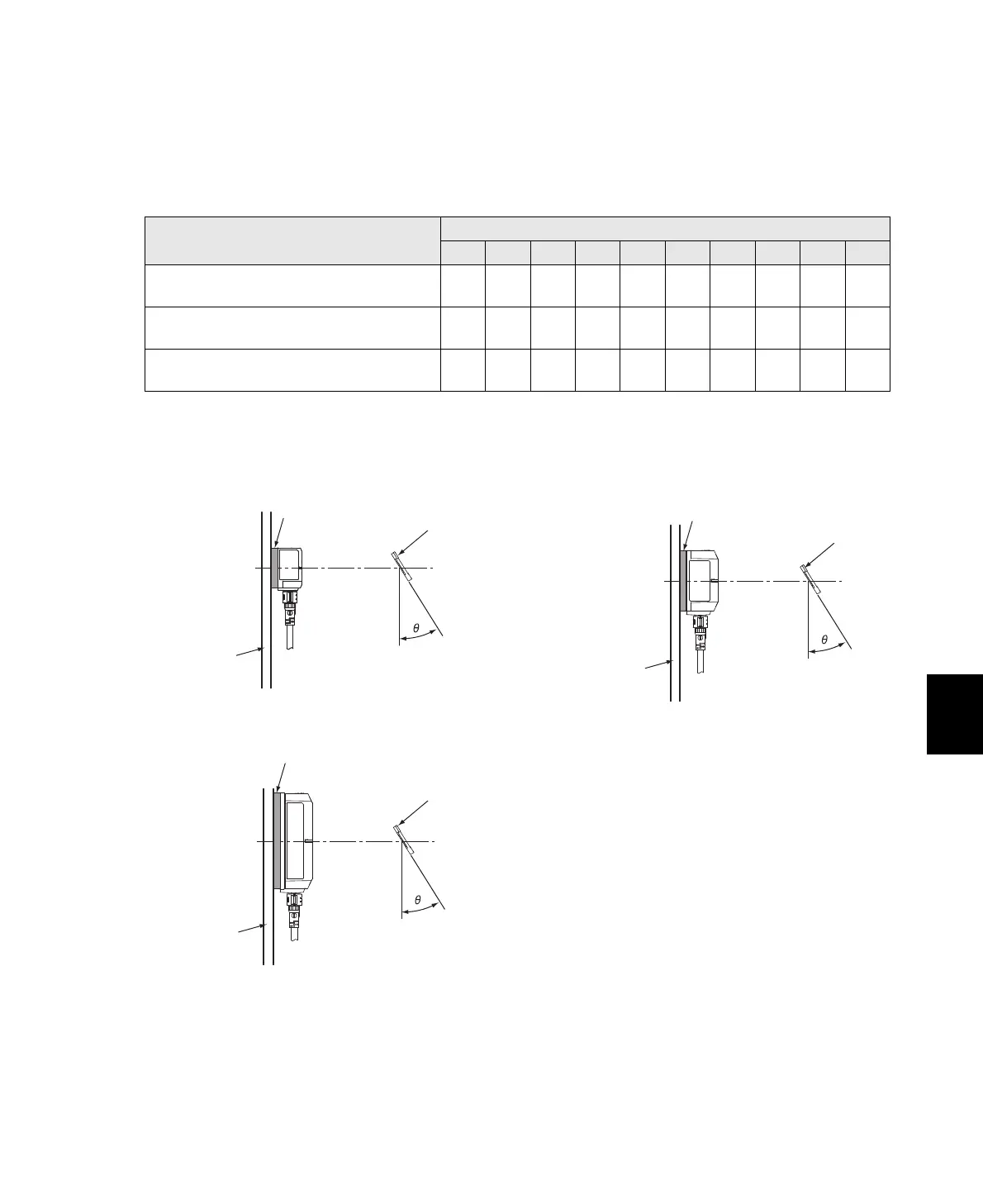

 Rates of Change in Communications Range for Inclination of V680S-D2KF67
 Measurement Conditions
RF Tag inclination ()
0 10 20 30 40 50 60 70 80 90
V680S-HMD63-EIP and V680S-D8KF67
0% -1% -2% -5% -8% -13% -20% -30% -45% ---
V680S-HMD64-EIP and V680S-D8KF67
0% -1% -2% -4% -6% -10% -17% -24% -36% ---
V680S-HMD66-EIP and V680S-D8KF67
0% -1% -2% -4% -7% -12% -19% -28% -42% ---
• V680S-HMD63-EIP and V680S-D8KF67 • V680S-HMD64-EIP and V680S-D8KF67
• V680S-HMD66-EIP and V680S-D8KF67
RF Tag
Metallic material
Reader/Writer
Non-metallic material
Non-metallic material
Reader/Writer
RF Tag
Metallic material
Non-metallic material
Reader/Writer
RF Tag
Metallic material
