Omron V680S Series User Manual

Section 3 Installation

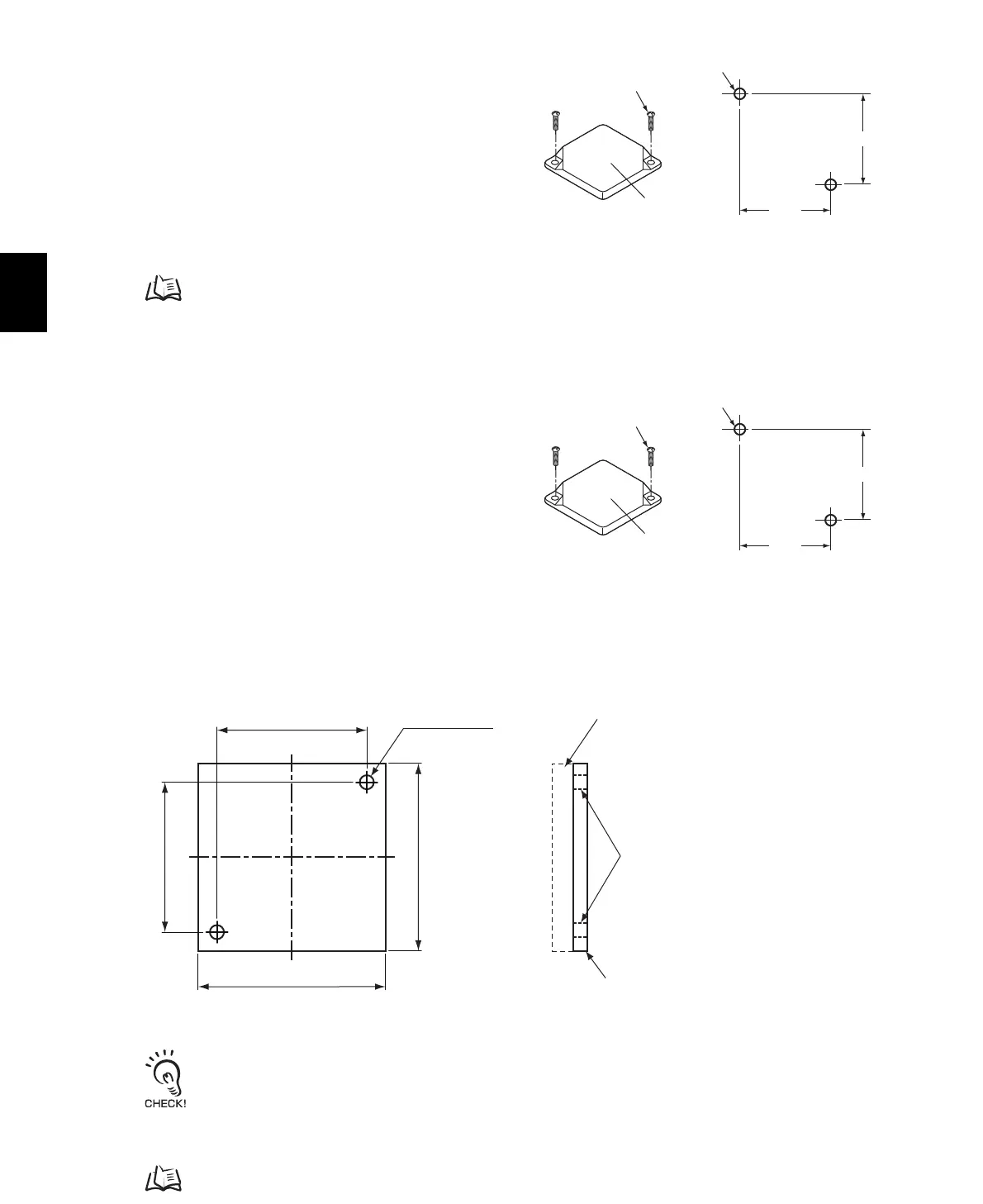

 V680-D8KF67
Mount the RF Tag with M3 screws.
Tighten the screws to a torque of 0.6 N·m.
Refer to RF Tag Installation Precautions in Section 8 Appendices for information on the effect of metal at the back surface,
Mutual Interference of RF Tags and Influence of Inclination of the V680-D8KF67.
p.237
 V680-D8KF67M
Mount the V680-D8KF67M to a metal surface.
Mount the RF Tag with M3 screws.
Tighten the screws to a torque of 0.6 N·m.
When you install the RF tag, prepare the metal plate as shown in the figure below.
When the metal plates size is larger than the below illustration, communication range will change.
Please confirm the influence well
Although it is possible to use aluminum in addition to iron and copper as a mounting bracket, communication
performance will change depending on the material. Do not use resin as a mounting bracket.
Refer to RF Tag Installation Precautions in Section 8 Appendices for information on the effect of surrounding metal, Mutual
Interference of RF Tags and Influence of Inclination on the V680-D8KF67M.
p.237
Marked side
M3 screw
Mounting Hole Dimensions
Two, M3 holes
32
0.2
320.2
Marked side
M3 screw
Mounting Hole Dimensions
Two, M3 holes
32
0.2
320.2
Two, M3 holes
Screw mounting
Metal plate
V680-D8KF67M
32±0.2
32±0.2
40
(Unit: mm)
40
Material: Steel
