Omron V680S Series User Manual

Section 3 Installation
 V680S-D2KF68/-D8KF68

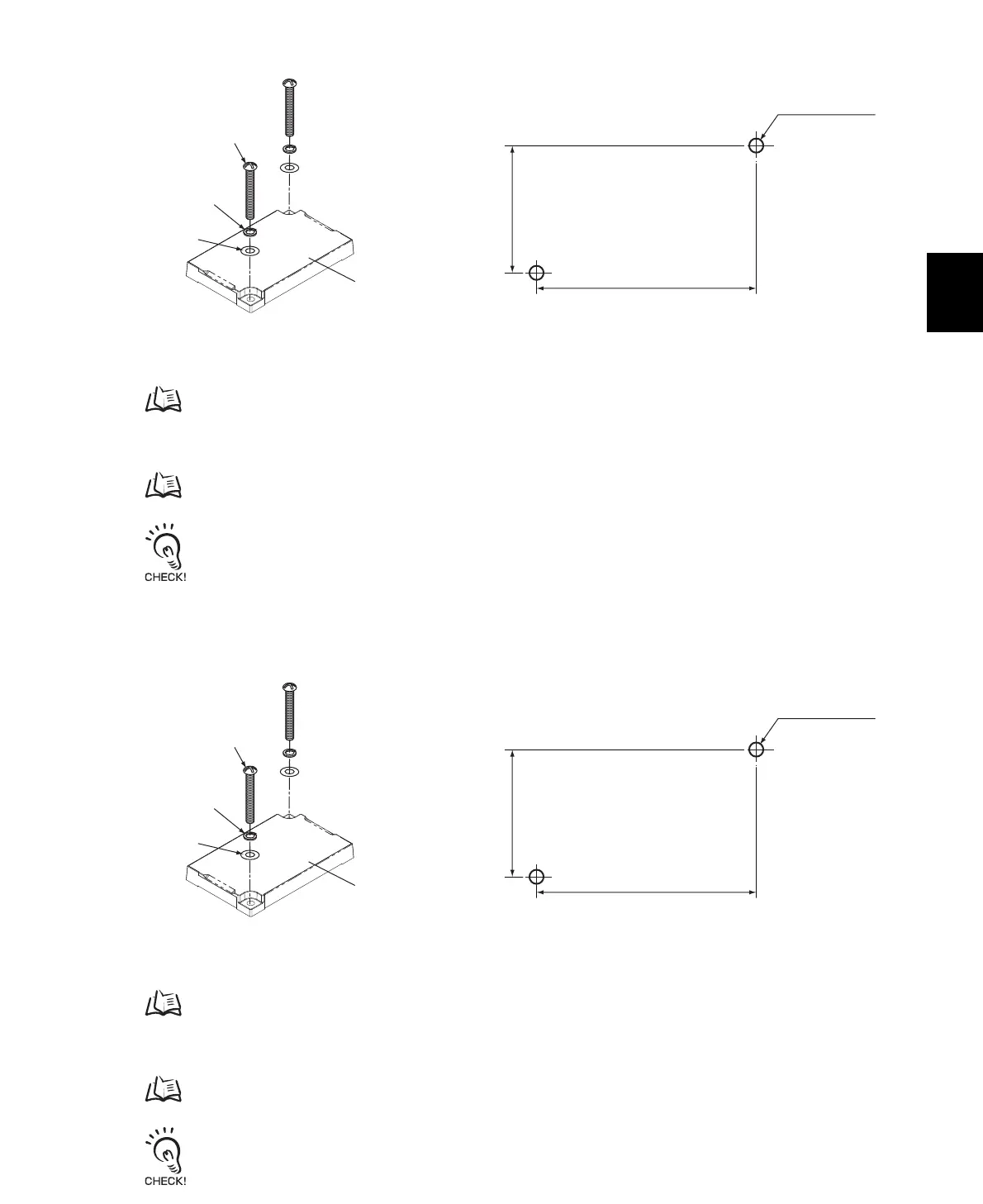

Mount the RF Tag with M4 screws. Tighten the screws to a torque of 0.7 to 1.2 N·m.
Refer to RF Tag Installation Precautions in Section 8 Appendices for information on the effect of metal at the back surface,
Mutual Interference of RF Tags and Influence of Inclination of the V680S-D2KF68.
p.237
Refer to RF Tag Installation Precautions in Section 8 Appendices for information on the effect of metal at the back surface,
Mutual Interference of RF Tags and Influence of Inclination of the V680S-D8KF68.
p.237
You can use the V680S-D8KF68 with Reader/Writers with firmware version 2.00 or higher.
 V680S-D2KF68M/-D8KF68M
Mount the RF Tag with M4 screws. Tighten the screws to a torque of 0.7 to 1.2 N·m.
Refer to RF Tag Installation Precautions in Section 8 Appendices for information on the effect of surrounding metal, Mutual
Interference of RF Tags and Influence of Inclination on the V680S-D2KF68M.
p.237
Refer to RF Tag Installation Precautions in Section 8 Appendices for information on the effect of surrounding metal, Mutual
Interference of RF Tags and Influence of Inclination on the V680S-D8KF68M.
p.237
You can use the V680S-D8KF68M with Reader/Writers with firmware version 2.00 or higher.
44
76
Two, M4 holes
M4 screw
Spring washer
Flat washer
Marked side
(Unit: mm)
44
76
Two, M4 holes
M4 screw
Spring washer
Flat washer
Marked side
(Unit: mm)
