External communication interface
6-5
2.2 Communication specifications
Transmission mode
Full duplex
Synchronous system
Start-stop synchronization
Baud rate [bps]
4800, 9600, [19200], 38400, 57600, 115200
Character length [bit]
7, [8]
Stop bit [bit]
[1], 2
Parity
None, [odd], even
Termination code
CR, [CRLF]
Flow control
None, [XON/XOFF], RTC/CTS
Receive buffer
1024 bytes
Transmit buffer
1024 bytes
Numbers or items in [ ] indicate the initial setting.
NOTE
1) Termination code
• Robot transmit
When CRLF (carriage return + line feed) is selected:
Transmits data with a CR code (0xDH) and LF code (0xAH) added at the end of a line.
When CR (carriage return) is selected:
Transmits data with a CR code (0xDH) added at the end of a line.
• Robot receive
Receives data by treating entries made up to the CR code as 1 line and ignoring the LF code, regardless of
which termination code is selected.
2) If the "Display language" parameter is set to "JAPANESE" in SYSTEM mode, then set the character length to 8
bits. Katakana letters (Japanese phonetic) cannot be output from the communication port if set to 7 bits.
2.3 Connections

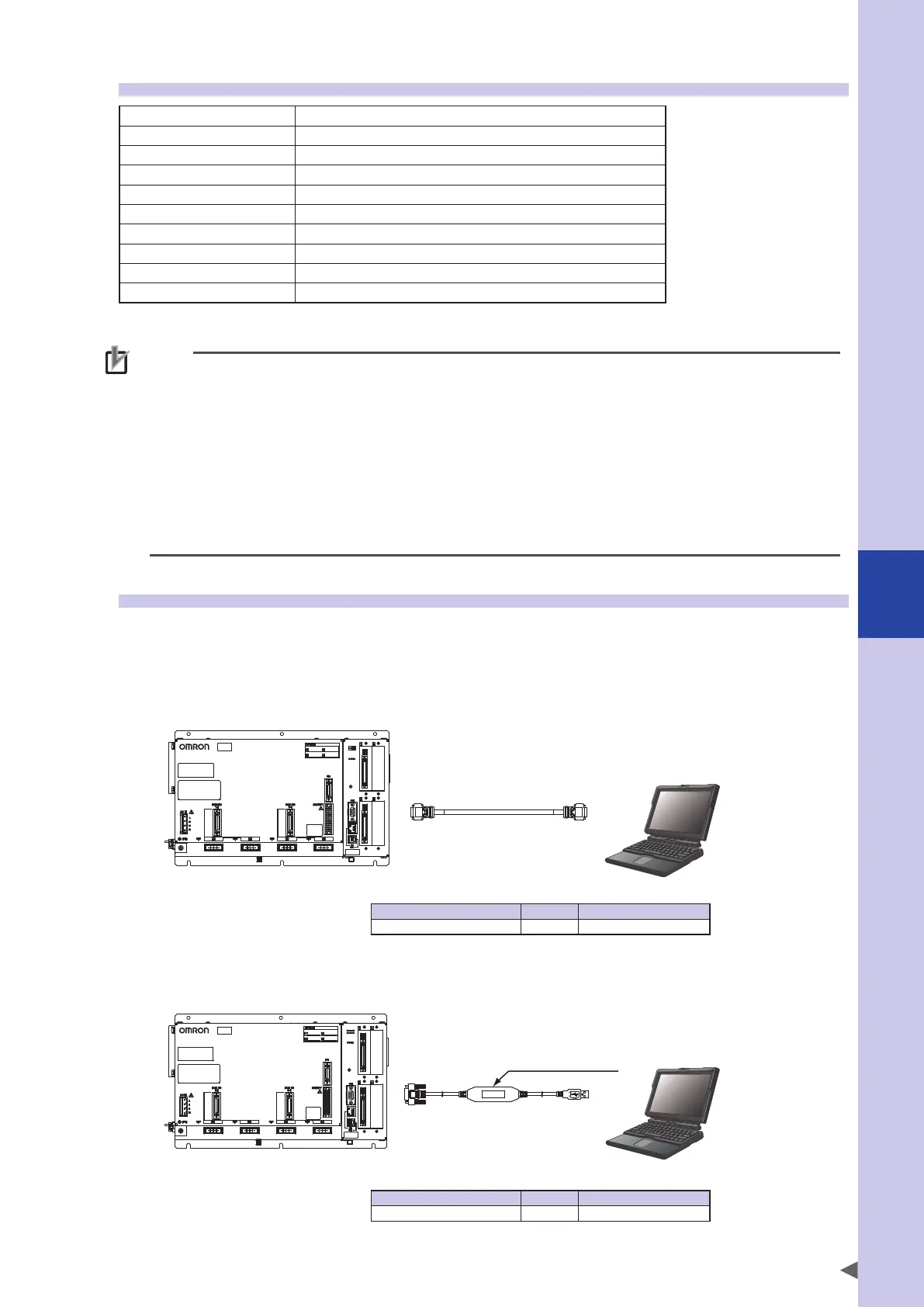

The following are examples of connecting to a personal computer using the OMRON communication cable.
1. Using the PC's COM port
COM port
Personal computerYRCX
9 pins 9 pins
* The communication cable is optional.
YRCX
2. Using the PC's USB port
USB port
Personal computerYRCX
9 pins USB port
Communication cable
YRCX
Communication cable Length Cable type number.
9 pins
↔
9 pins 5 m KAS-M538F-10
Communication cable Length Cable type number.
9 pins
↔
USB Port 5 m KBG-M538F-00
