Omron YRC - Installing a Noise Filter; Installing a Surge Absorber

3
Installation
3-7
3.7 Installing a noise filter
Installation of a noise filter is recommended in order to suppress power line noise.
■

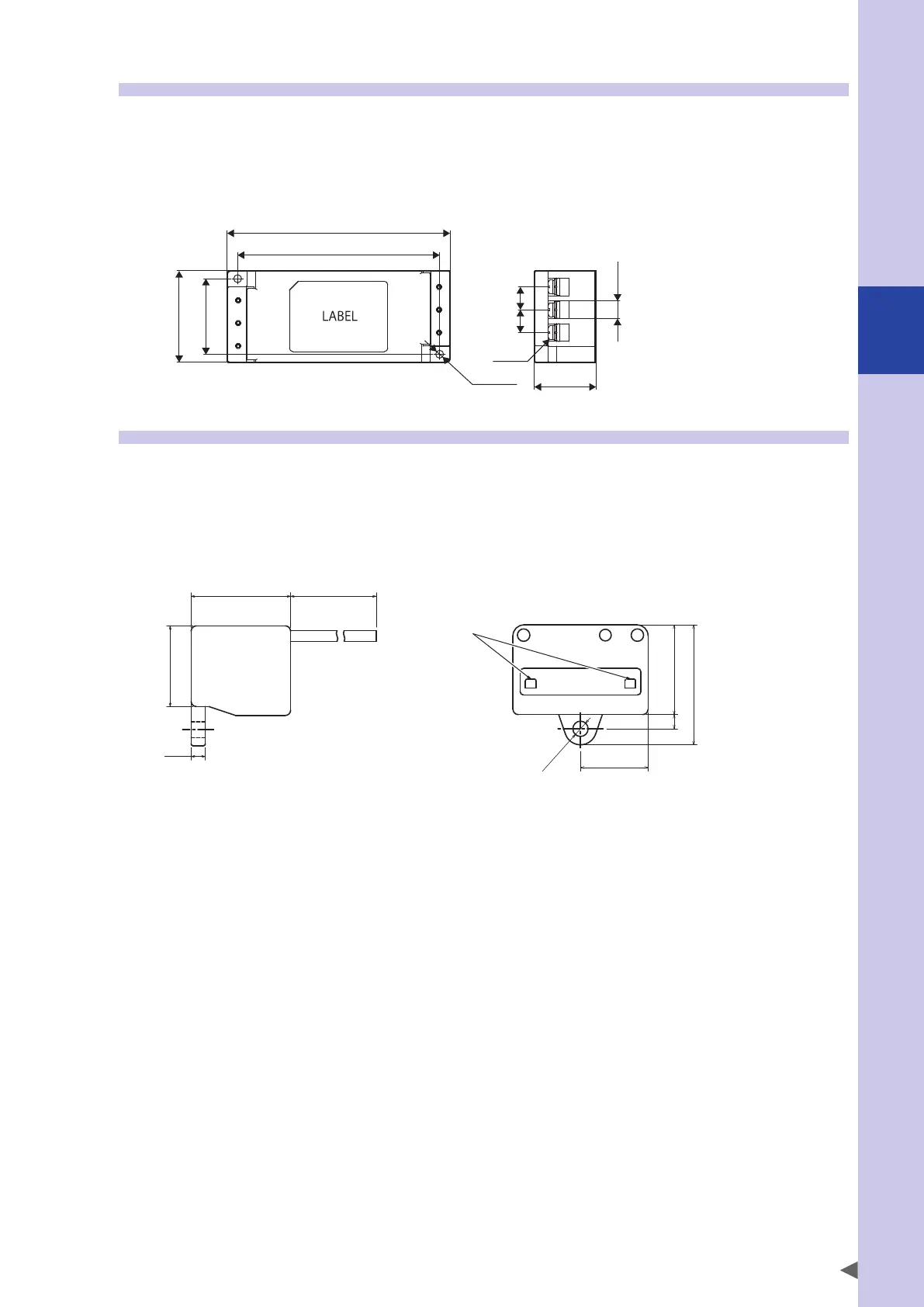

Dimensional outlines of recommended noise filter
Manufacturer : TDK-Lambda Corporation
Type number : RSHN-2016
52±1
115±0.5
10±1
43±0.5
13±1 13±1
127±1
35±1
6-M4
2-φ4.5
3.8 Installing a surge absorber
It is recommended to install a surge absorber so as to increase the resistance against the surge noise generated
by lightning.
■
Dimensional outlines of recommended surge absorber
Manufacturer : SOSHIN ELECTRIC CO., LTD.
Type number : LT-C12G801WS
Status indicator
Green : Normal
Red : Abnormal
φ4.3
+0.3
-0.1
25
±1.0
4
33.5
±1.0
19
±1.0
4
±0.5
22.5
±1.0
250
+25
-0
28
±1.0
