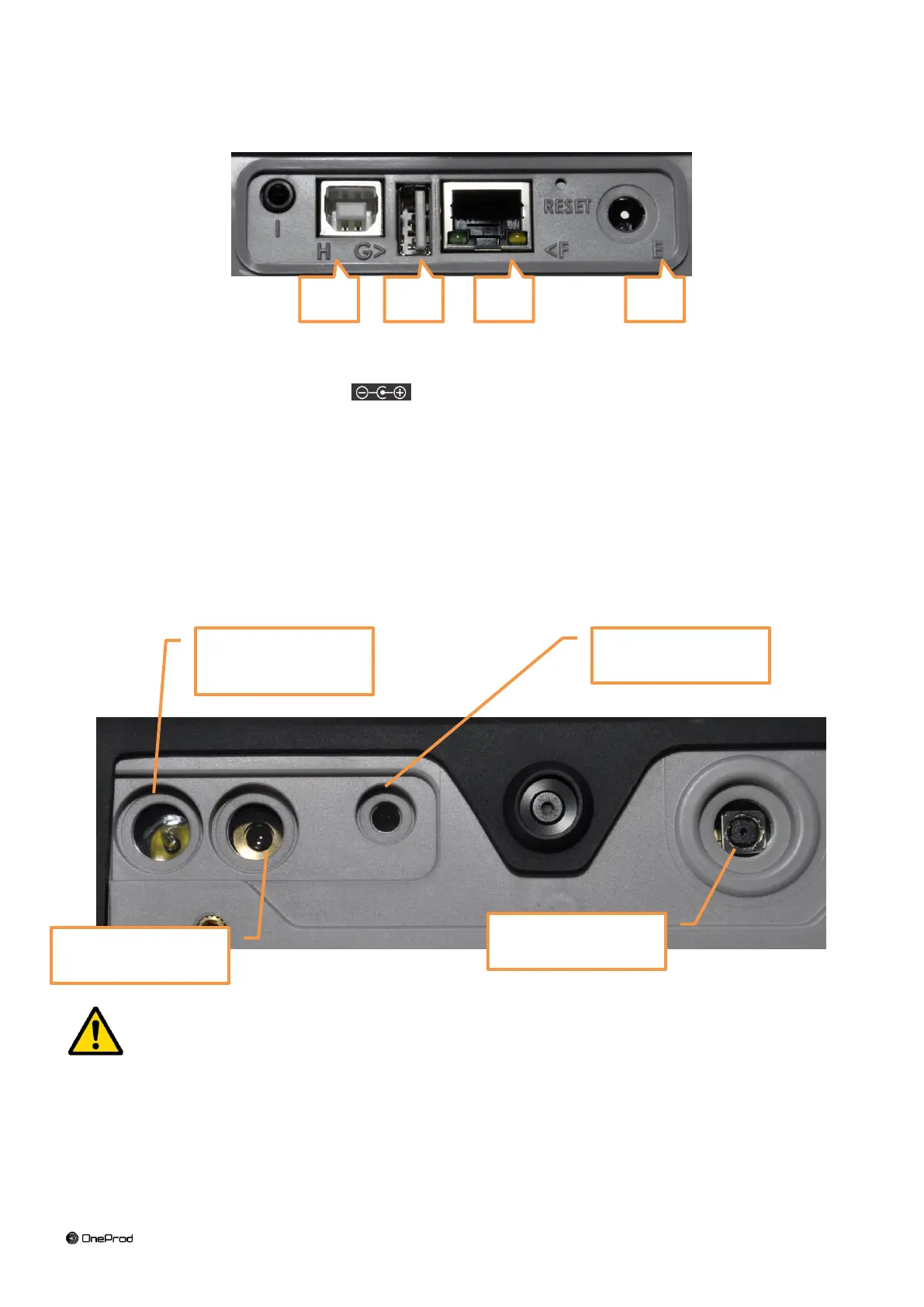

1.9.2 Connectors E to I behind the trapdoor
Those connectors are behind a trapdoor. It must remain close in industrial environment to preserve the IP65
protection. Use those connectors only in office environment.
 Connector E: Power supply input
 Connector F: Ethernet RJ45
 Connector G: USB 2 type A host (for USB memory stick)
 Connector H: USB 2 type B device (direct connection with PC)
 Connector I: serial interface for maintenance purposes only
1.10 BUILT-IN SENSORS
The back of the instrument gives access to the built-in sensors.
For the stroboscope and the pyrometer, please see the safety instructions delivered with the instrument
(printed and on the CDROM)
High-power LED for
stroboscope and
camera flash
Laser beam source
for pyrometer sighting
Pyrometer window
Camera window
E
F
G
H
