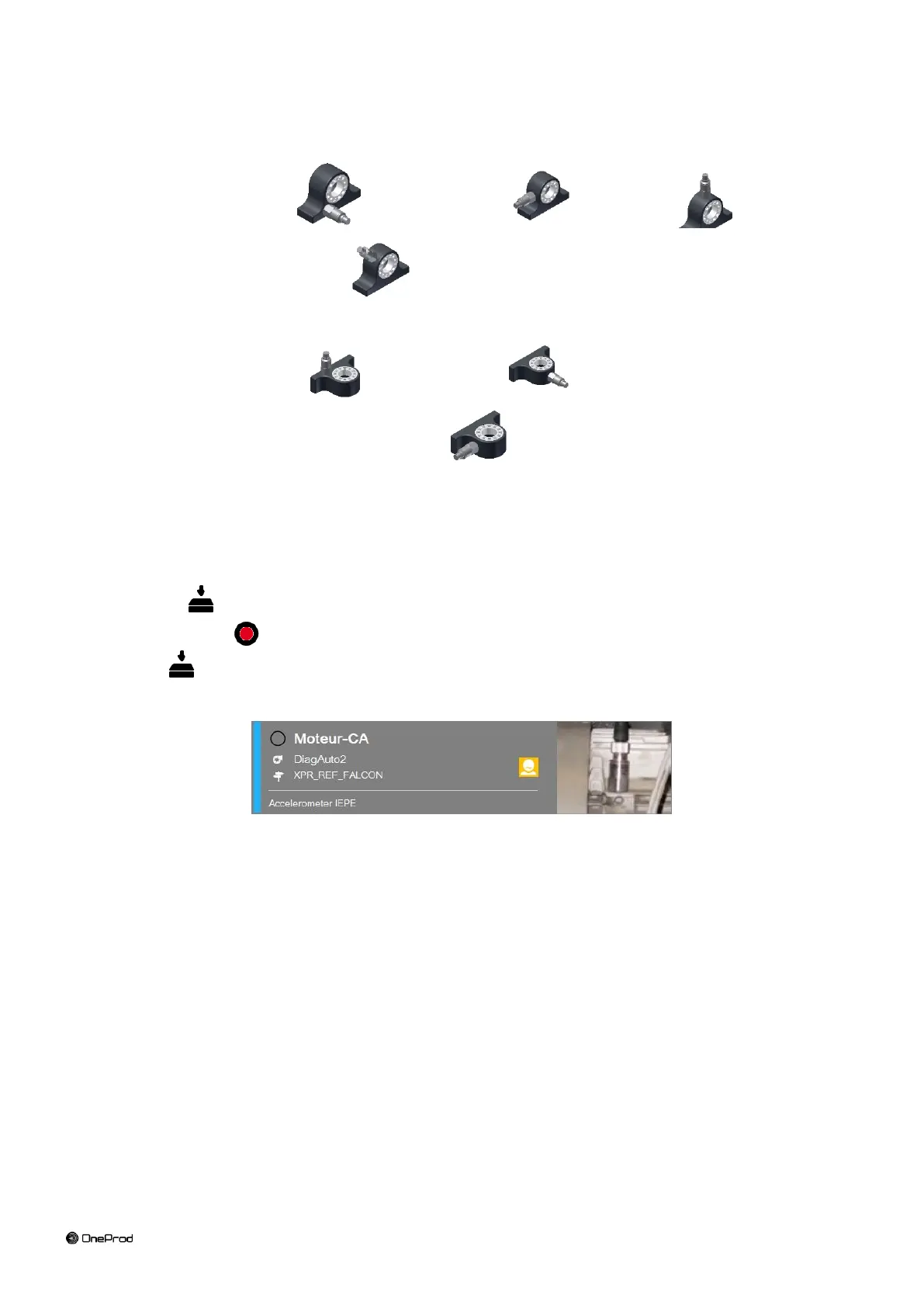

o For a single-axis measurement, a pictogram is displayed for information:
 For horizontal shaft:
Axial (A) , Horizontal (H) , Vertical (V) and
Radial oblique
 For vertical shaft:
Axial (A) , Radial main (//) and
Radial perpendicular (P or )
**** Sensor position picture: it is possible to replace the pictogram by a picture of the sensor.
 Click on the pictogram
 Select “Sensor position picture” tab
 Click on “New picture” function
 Take the picture
 Save
Example of a header with a sensor picture
