Index parts and facilities

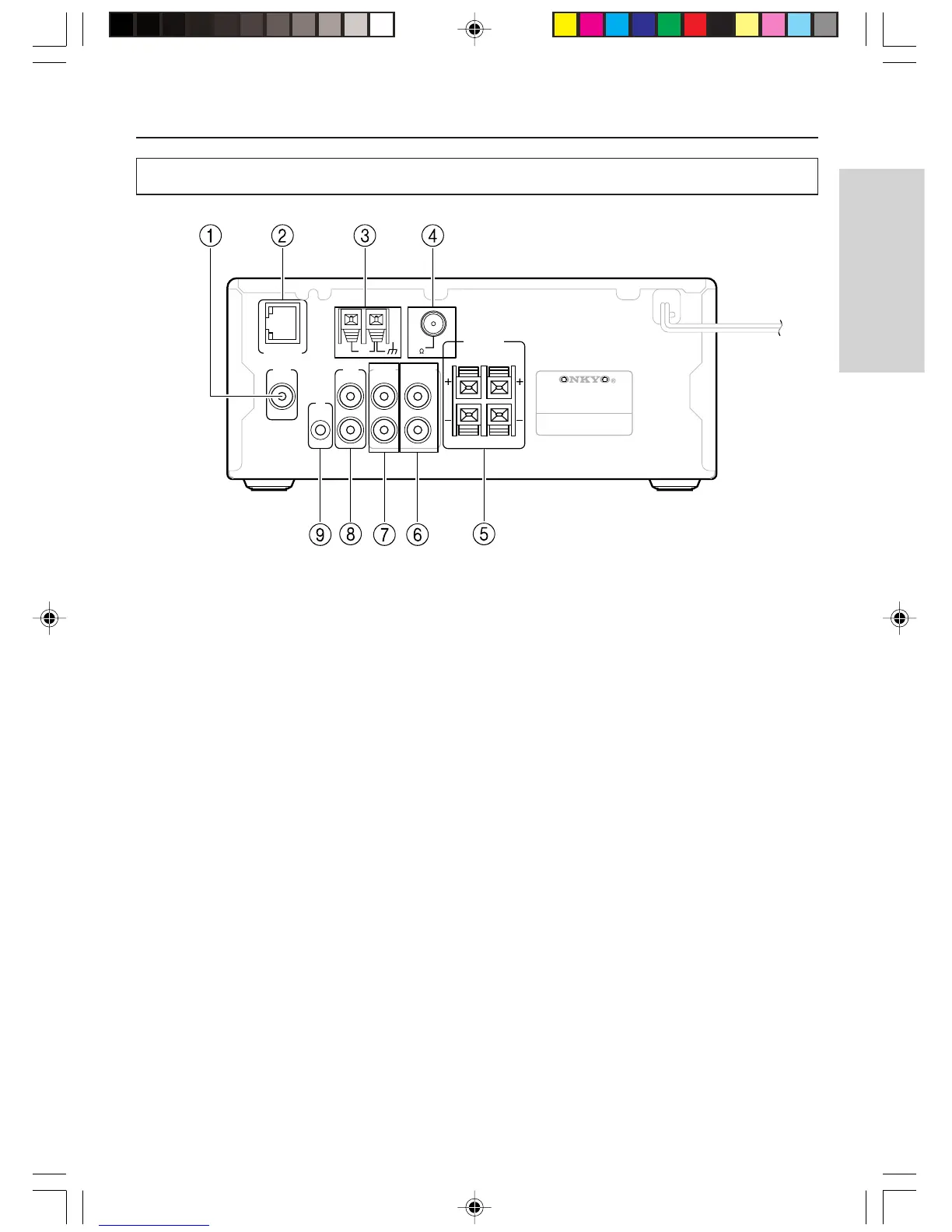

Rear Panel
1 OSD OUT
This port can be used to redirect screen output
from the front panel display to a television
screen for quick and easy large-screen
viewing.
2 ETHERNET
This port connects to a broadband mode,
router, hub, etc.
3 AM
This port connects to the AM radio antenna.
4 FM
This port connects to the FM radio antenna.
5 SPEAKERS
The terminals connect to the speakers.
6 VARIABLE OUTPUT
This port connects to an amplifier without
volume control.
7 FIXED OUT
This port connects to the input port of a
receiver with volume control.
ETHERNET
SPEAKERS
(
6 OHMS MIN.
)
ANTENNA
AUX
INOUT OUT OUT
FIXED VARIABLE
OSD
AM
FM
75
R
L
27123044
UDD
R
L
R
L
AUDIO NETWORK RECEIVER
MODEL NO. NC- 500
IN
IR
8 AUX
This port connects to an auxiliary device.
9 IR IN
If the NC-500 is located inside a rack or a
cabinet that will not allow infrared beams to
reach its IR sensor, you will need to relay
beams with an external sensor.
Connect the external sensor to IR IN input.
Then, place the sensor in an unblocked
location at which you can easily point with
the remote controller.

Onkyo NC-500 Specifications

General

Audio formats	MP3, WMA, AAC, WAV, FLAC, ALAC
Network	Ethernet, Wi-Fi
Streaming services	Spotify, TIDAL, Deezer, TuneIn
Amplifier power	30 W + 30 W (4 Ohms, 1 kHz, 0.7% THD, 2 Channels Driven, IEC)
Power Output	30 W + 30 W (4 Ohms, 1 kHz, 0.7% THD, 2 Channels Driven, IEC)
Frequency response	10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Frequency Response (Direct Mode)	10 Hz–100 kHz/+1 dB, -3 dB
Inputs	USB, Analog, Optical
Outputs	Speaker terminals, Headphone
Audio Decoders	Dolby Atmos, DTS:X
