Connecting the NC-500

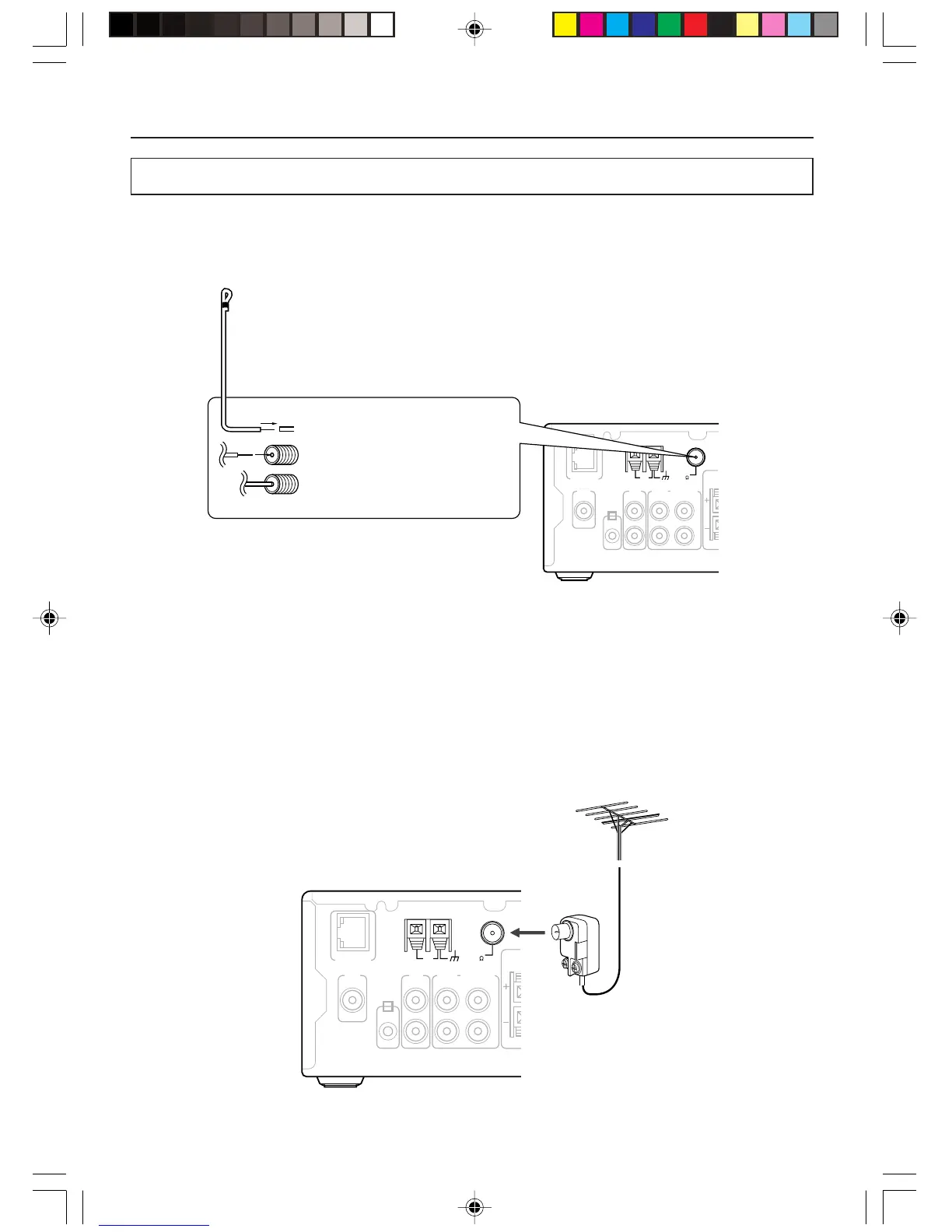

Connecting the FM antenna
FM indoor antenna
The supplied FM antenna is for indoor use only. Move the antenna in various directions until the
clearest signal is received. Fix it with push pins or similar implements in the position that will cause the
least amount of distortion.
ETHERNET
AUX
INOUT OUT OUT
FIXED VARIABLE
OSD
IR
R
L
R
L
IN
ANTENNA
AM
FM
75
Remove the insulation at the tip
of the cable, and insert the
cable securely, fully to the end
of the exposed tip.
FM outdoor antenna
If the reception is not very clear with the supplied FM antenna, the use of an outdoor antenna is
recommended.
Please make sure that you follow the considerations below regarding the location.
• Keep the antenna away from noise sources (neon signs, busy roads, etc.)
• It is dangerous to put the antenna close to power lines. Keep it well away from power lines, etc.
• To avoid the risk of lightning and electrical shock, grounding is necessary. Follow item 14 of the
“Important Safeguards” on page 3 when you install the outdoor antenna.
