278 Vehicle care

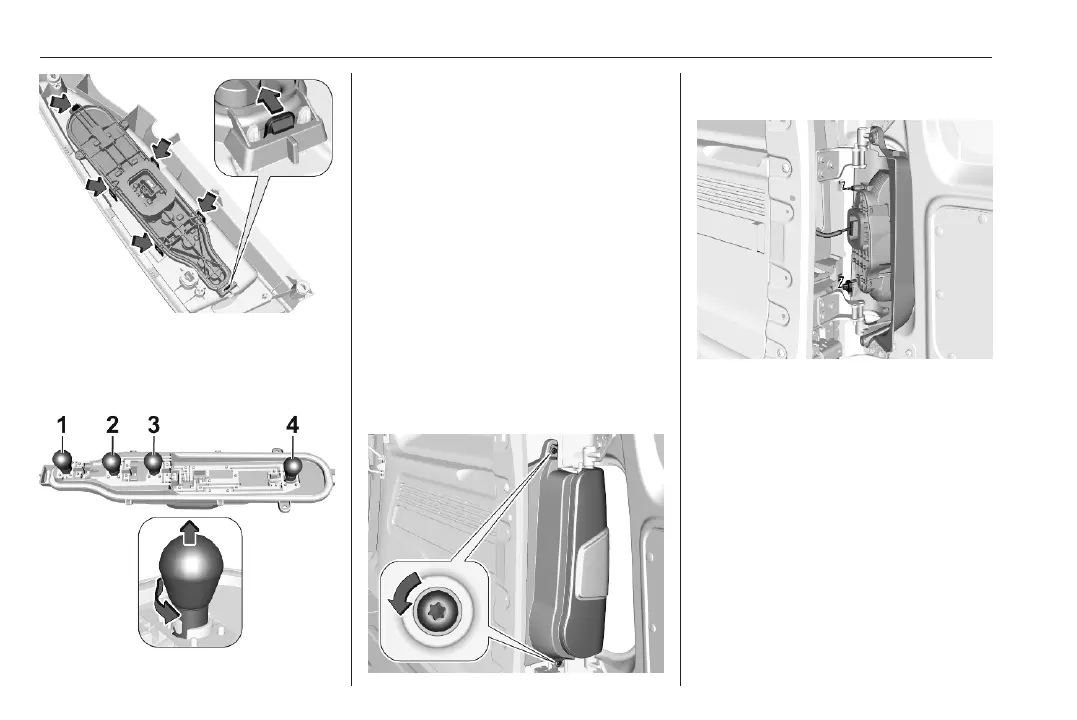

4. Press the retaining lug
backwards, pull the bulb carrier
and disengage the remaining
retaining lugs.
5. Push the bulb slightly down, turn
it and remove it from the bulb
carrier. Replace the bulb:
Rear fog light (1)
Reversing light (2)
Turn light / hazard warning flasher
(3)
Tail light / brake light (4)
6. Attach the bulb carrier to the light
assembly.
7. Attach the cable to the retainer.
8. Attach the light assembly to the
vehicle body and tighten both
screws.
Vehicle with rear doors
1. Unscrew and remove the two
screws.
2. Carefully withdraw the tail light
assembly from recess and
remove. Take care that the cable
duct remains in position.
3. Detach the cable from the
retainer.
