66 Storage
Load compartment
Depending on version, the load
compartment area can be increased
by folding up or removing the third row
seats. The seat backrests of the
second row can be folded forward
separately. Additionally, the backrest
of the passenger seat can be folded.
Depending on the loading, only single
seats or backrests can be folded.
Folding passenger seat 3 34
Folding second row seats 3 37
Folding or removing third row seats
3 37

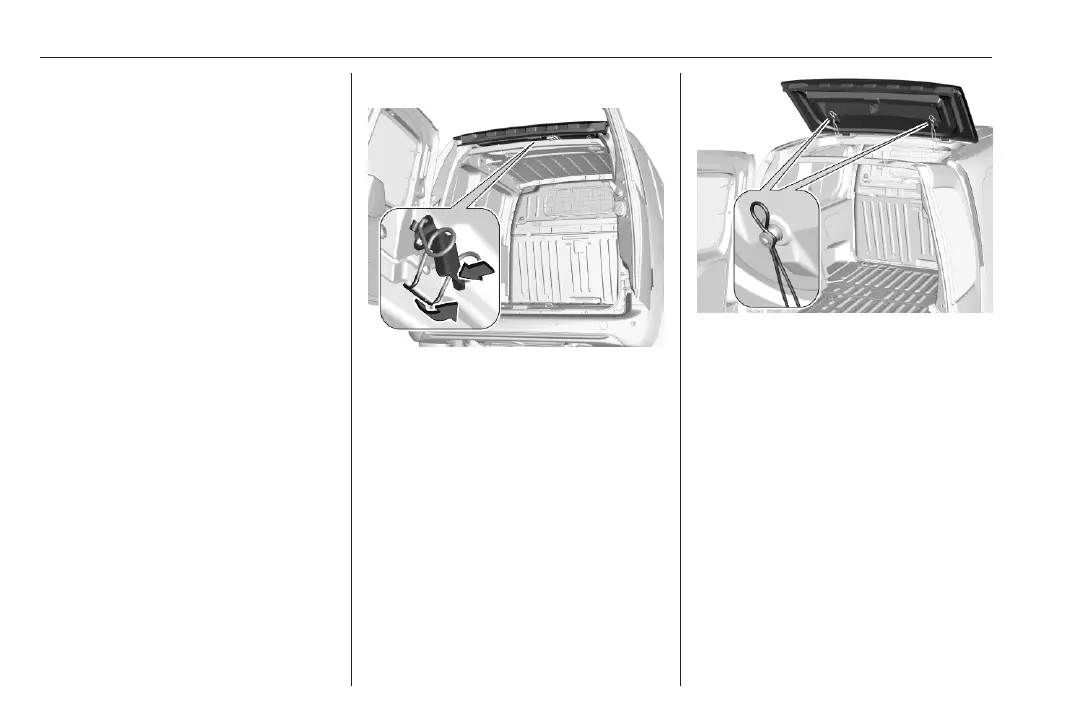

Ladder flap
The ladder flap is available for
transporting long loads.
Opening the ladder flap
1. Press the lever and disengage the
spring clip from the retainer by
pulling.
2. Lift the ladder flap.
3. Move past the point of resistance
to lock the ladder flap with the
props.
Support bar
Rest long loads on the support bar.
