Storage 75

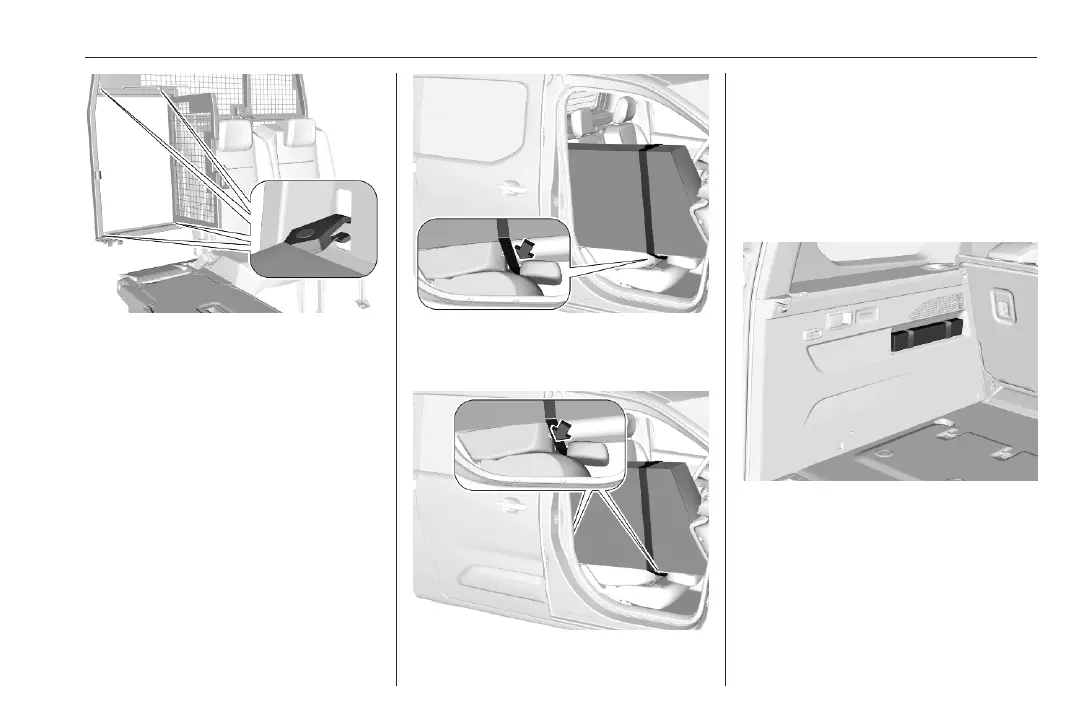

1. Attach the four snap hooks of the
cover on the corresponding
lashing eye.
2. Pull the head restraint from the
folded backrest, leaving two
notches visible on the head
restraint rod 3 31.
3. Load the objects.
4. Pass the strap of the cover around
the head restraint. Tension the
strap by pulling at the loose end.
If the loading is stored on the front
and rear seat at the passenger
side pass one strap on each head
restraint.
With fitted protective cover the
maximum load on each of the folded
backrests is 100 kg.
Warning triangle
Depending on version, the warning
triangle can be stowed in the load
compartment. Secure it with the
elastic straps.
