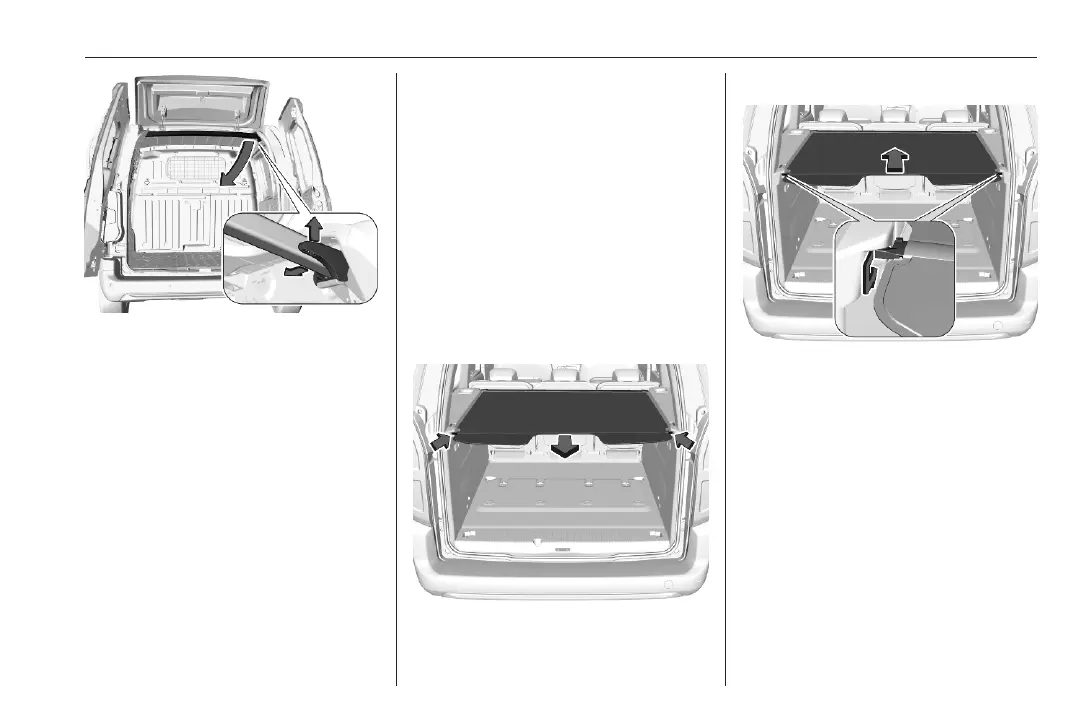

Storage 67
1. Push the lever to the top.
2. Push the support bar a bit to the
front and then guide it down to the
door pillar.
3. Hold the long load in the angled
position.
4. Move the support bar below the
load to its original position. Fix it
by pressing the lever downwards
past the point of resistance.
The rear doors will only lock when
the support bar is installed.
5. Secure the loads firmly. The side
supports can be used as hooking
points.
Closing the ladder flap
1. Check that the support bar is
properly locked.
2. Lower the ladder flap.
3. Fix the spring clip in its retainer.
Load compartment cover
Rear luggage cover
Do not place any objects on the cover.
Closing the cover
Pull the load compartment cover
towards the rear and engage it in the
side brackets.
Opening the cover
Remove load compartment cover
from side brackets. Guide the cover
until it is fully rolled up.
