Seats, restraints 35
Pull the lever and raise backrest fully
then release the lever.

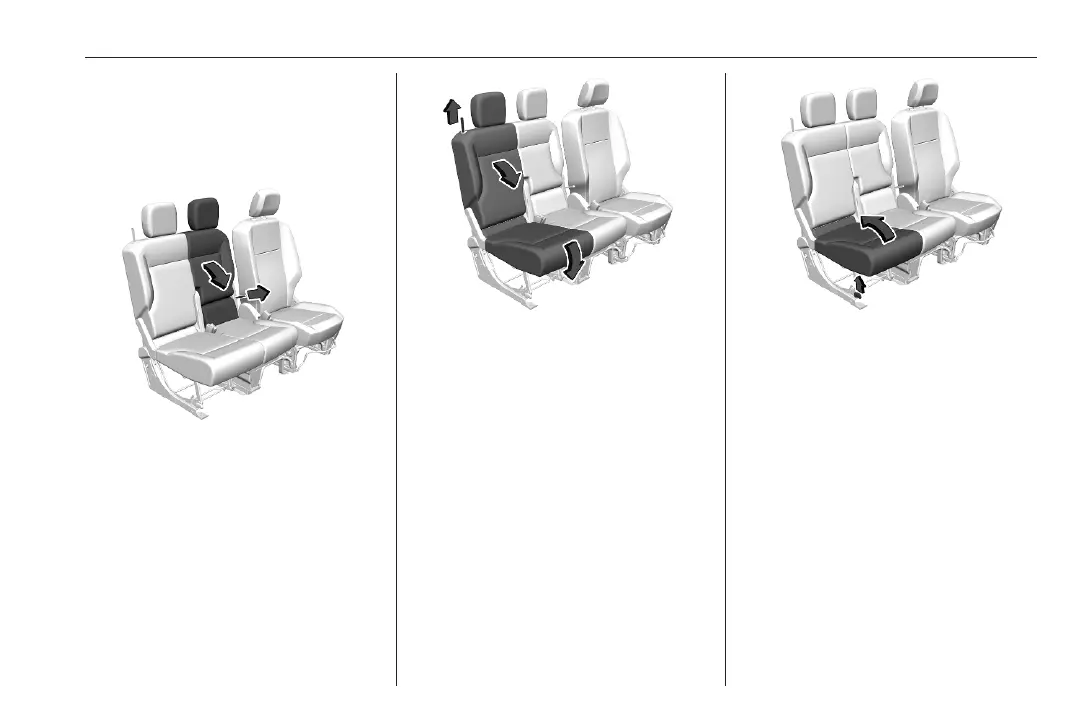

Folding bench seat front
passenger side
Fold down the centre backrest by
pulling the loop.
Fold down the outer backrest by
pulling the loop. Swing the backrest
forwards until the seat is lowered on
the vehicle floor.
When retracted, the maximum weight
on the backrest is 50 kg.
To lift the seat cushion pull the lever
and raise the seat cushion against the
backrest until it locks.
Storage cargo management system
3 70.
Storage load compartment grille
3 73.
Unfolding bench seat front
passenger side
To restore the backrest to the upright
position, pull up the seat till it is
engaged.
